Safety Instructions

General Safety Instructions

Before starting to use the door, read this user manual with care and comply with the following safety instructions at all times:

• The Slimdrive SL/SLT automatic sliding door operator is only intended for normal usage with automatic doors.
• Please comply with relevant accident prevention regulations.
• Please follow the guidelines for BS 7036 1996 Safety at Powered Doors for Pedestrian Use.
• Please adhere to the operating, servicing and repair conditions specified by GEZE.
• Servicing and repair work may only be carried out by properly trained GEZE personnel or authorized GEZE partner.
• Isolate all power before removing cover.
• IMPORTANT: The cover may only be removed by properly trained personnel authorized by GEZE.
• GEZE does not accept responsibility for damage resulting from unauthorized modification of the equipment. Warranty will be void if damage is caused from unauthorized modification.

System Description

Types of Door Leaves

• Glass doors consisting of either single of double glazed glass.
• Doors with timber, metal or aluminium frames.

Drive Features

• Low wear high capacity DC Motor.
• Extremely quiet enclosed running gear.
• Power transmission via toothed belts: deflection rollers in precision bearings.
• Self learning processor control.
• Permanent position sensing of door leaves by means of non-contact distance measuring System.
• Determination of door leaf weight by means of acceleration meter.
• Adjustable hold open time.
• Automatic error detection.
• Error indication at programme switch.
• Audio signal in case of error.
• Opening and closing speed individually adjustable.
• Automatic adjustment of opening time dependent on traffic.
• Connection to fire alarm (optional).
• Electro magnetic locking to secure the door leaves against being forced open (Optional).
• Automatic reversing function with adjustable reversing pressure. The door opens automatically, should it meet an obstacle during closure.
• Emergency opening via an integrated battery back up in case of power failure.
• Integrated mains isolator.
• Closing force limited to < 150 N.

Occupier Safety Test

Extract from BS 7036 : Part 2 : 1996 ( Annexes )

This section provides a checklist for occupier safety tests on powered doors, which suit the majority of installations. However, the person / organization responsible for the operation and maintenance of the doors should consider each individual installation and adopt a safety test procedure that is suitable for that installation. Additional tests to those given in this section may be necessary if specified by the manufacturer.

Occupier safety check list for all types of powered sliding doors

The occupier is responsible for undertaking the following test procedure which should be carried out at least weekly unless a different frequency for tests is identified in the Hazard Analysis and Risk Assessment (See 4.6.2.1 of Part 1).

For safety reasons it should not be assumed that equipment is working safely. There should be no notice boards, literature racks, merchandise displays, or other distractions or obstructions in the vicinity of the door that may congest or inhibit the traffic flow.

Automatic Activation Devices

Sensor Activation (if fitted)

1. Test Sensors by walking towards the door opening. The door should start to open when a person is approximately 1400mm (5 ft) from the door. The door should slide smoothly to the open position and stop without impact.
2. Step out of the activation zone. After a delay (normally 1s to 5s) the door should close smoothly.
3. Repeat 1 and 2 on the other side of the door opening if the door has two way operation.

Safety Devices

Various devices are available to protect the threshold area by preventing a door from closing whilst the area is occupied. These include presence-sensing devices, hold open beams or safety mats. Test these devices as follows:

4. Presence Sensing Devices: If presence sensing devices are fitted, place the test object (see 8.4.2 of Part 1) within 150 mm of the plane of movement of the door (but not interrupting the safety light barrier) and verify the door remains open for a minimum of 30 s. After a minimum of 30 s it is allowable for the door to close.
5. Hold Open Beams: If hold open beams are fitted, place the test object (see 8.4.2 of part 1) on the threshold and verify the door remains open.

General Tests

5. Check that the door area has no tripping or slipping hazards.
6. Check all door panels for broken or cracked glass.
7. Check that all doors have signs correctly displayed at recommended viewing heights.
8. Check the position and security of associated screens and barriers.
9. Check the operation of manual activation, or remote activation, or emergency stop button if fitted.
10. Check for distractions or obstructions in the vicinity of the door.

Reference Extracts

Extract from BS 7036 : Part 1 : 1996 (4.6.2.1 Occupier Safety Checks)

To ensure continued operation of a powered door installation, the installation and its environment should be subjected to systematic operational checks as often as is appropriate to the type of installation and its traffic flow. This should be assessed with reference to the Hazard Analysis and Risk Assessment carried out under 4.1.4, e.g. in high traffic areas such as shops, hospitals and airports, an appropriate rate would be at least once a week using the tests given in parts 2 to 5.

Extract from BS 7036 : Part 1 : 1996 (8.4.2 Test Object)

The following test object should be used:

• For presence sensing devices, a cardboard box of approximate dimensions 250mm x 150mm x 710mm high (10in x 6in x 28in high) is a suitable test object.
• For motion sensing devices, testing is achieved by the tester approaching the door from several directions in turn.

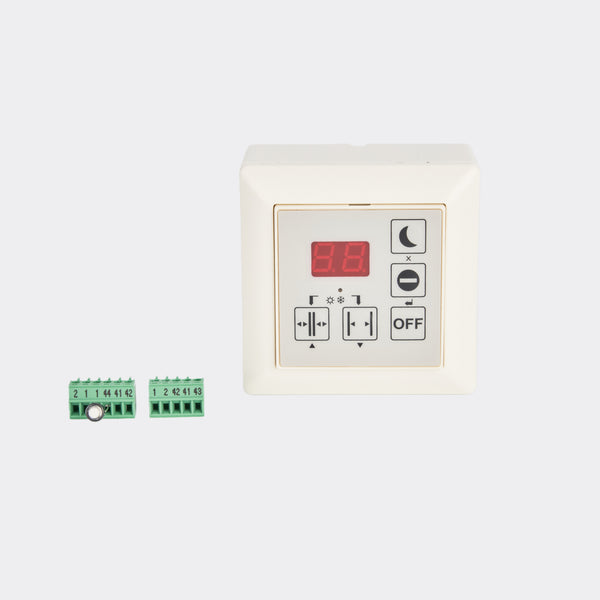

Operational Switches

Operation of Settings

This type of programme switch carries out various functions. They are: select mode of operation, view error messages, and programme and service the system. The modes of operation are as follows:

Automatic Mode (Au)

Whilst in this mode the door will be activated automatically by the relevant form of sensor fitted i.e. Radar, Push Pad etc. The door will power open, stay open for a designated time (normally 1 to 5 seconds) and then power close. There is also a possibility to open the doors to a reduced distance (Winter Setting). This is achieved by pressing the Automatic and Hold Open buttons at the same time. A small red LED is illuminated above the snowflake whilst the door is in Winter Setting. To return to the summer setting repeat the process of pressing Automatic and Hold Open at the same time.

Hold Open Mode (Ho)

Whilst in this function the door will power open and be held permanently open.

Night Mode (ni)

Whilst in this mode the drive unit is off. All activation and safety devices are isolated once the door is fully closed. If an integrated electric lock is fitted, this will be engaged automatically to secure the doors (if fitted).

Exit Only (Eo)

Whilst in this mode the external activation device is isolated. The internal activation device is still active. This enables traffic to leave the premises at closing time.

Program Switch Indicators

• Winter Setting: Press simultaneously Automatic and Hold Open.
• Automatic: Press once.
• Hold Open: Press once.
• One Way Traffic (Exit Only): Press once.
• Night Mode: Press once.

Note: Visual indicators include Red LED, Au code on LED Display, and Service Indicator.
