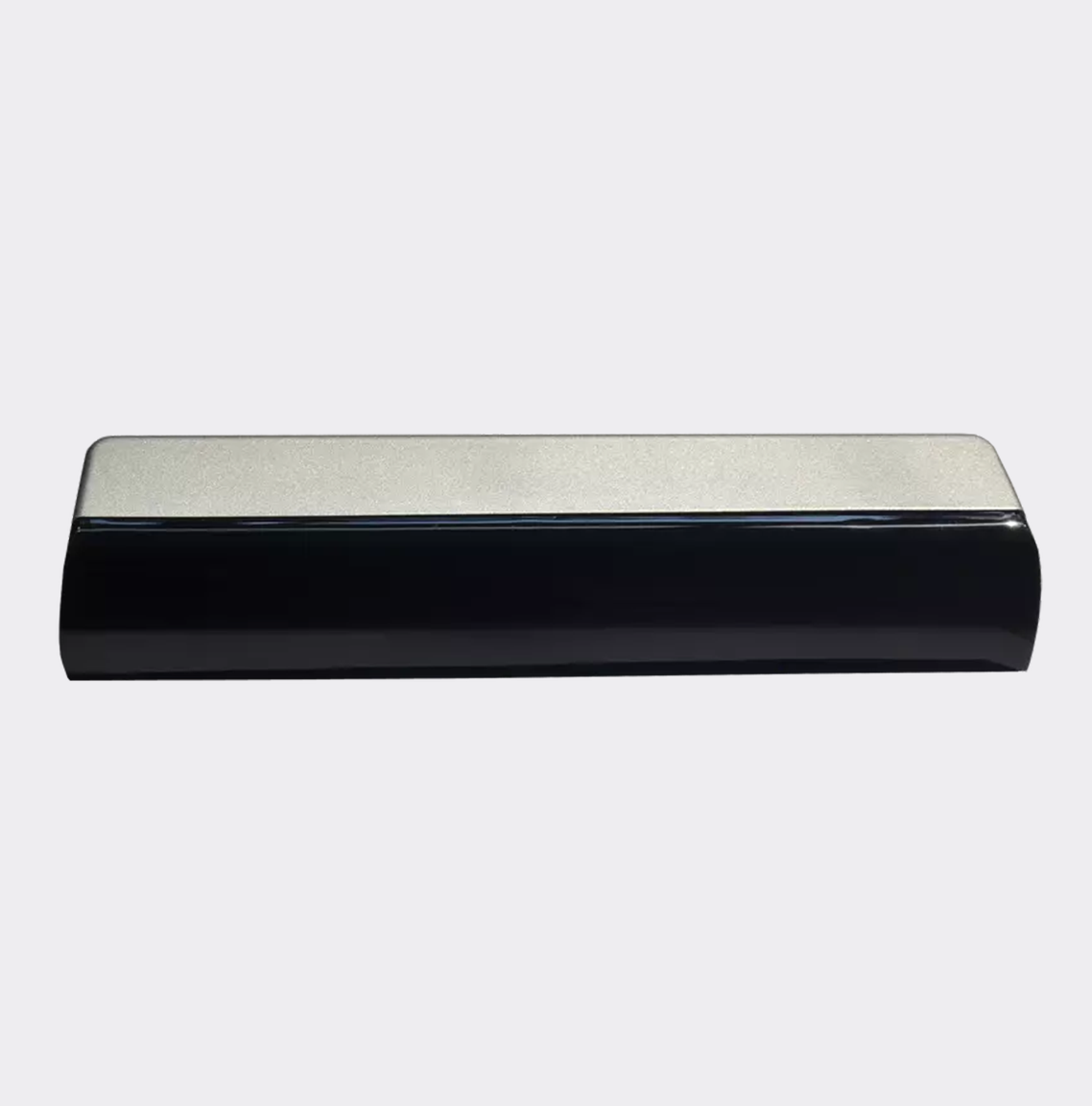

ZENSAFE
Regular price
$0.00
Sale price
$0.00
Regular price
Unit price
DESCRIPTION
TABEL OF SPECIFICATIONS
| Technology | Microwave and infrared | Microwave and infrared |
| Transmitter Frequency | 24.150 GHz | 24.150 GHz |
| Transmitter Radiated Power | < 20 dBm EIRP | < 20 dBm EIRP |
| Transmitter Power Density | < 5 mW / cm² | < 5 mW / cm² |
| Detection Mode | Motion and Presence | Motion and Presence |
| Min. Detection Speed | 5 cm/s (measured in optimal conditions) | 5 cm/s (measured in optimal conditions) |
| Supply Voltage | 12V to 24V AC ±10%; 12V to 30V DC ±5% / +10% | 12V to 24V AC ±10%; 12V to 30V DC ±5% / +10% |
| Mains Frequency | 50 to 60 Hz | 50 to 60 Hz |
| Max. Power Consumption | < 3 W (VA) | < 3 W (VA) |
| Output | Relay (free of potential change-over contact) | Relay (free of potential change-over contact) |
| Max. Contact Voltage | 42V AC / DC | 42V AC / DC |
| Max. Contact Current | 1A (resistive) | 1A (resistive) |
| Max. Switching Power | 30W (DC) / 60 VA (AC) | 30W (DC) / 60 VA (AC) |
| Mounting Height | 1.8 m to 3 m | 1.8 m to 3 m |
| Protection Degree | IP54 | IP54 |
| Temperature Range | -25°C to +55°C | -25°C to +55°C |
| Material | ABS | ABS |
| Weight | 215 g | 215 g |
| Cable Length | 2.5 m | 2.5 m |
