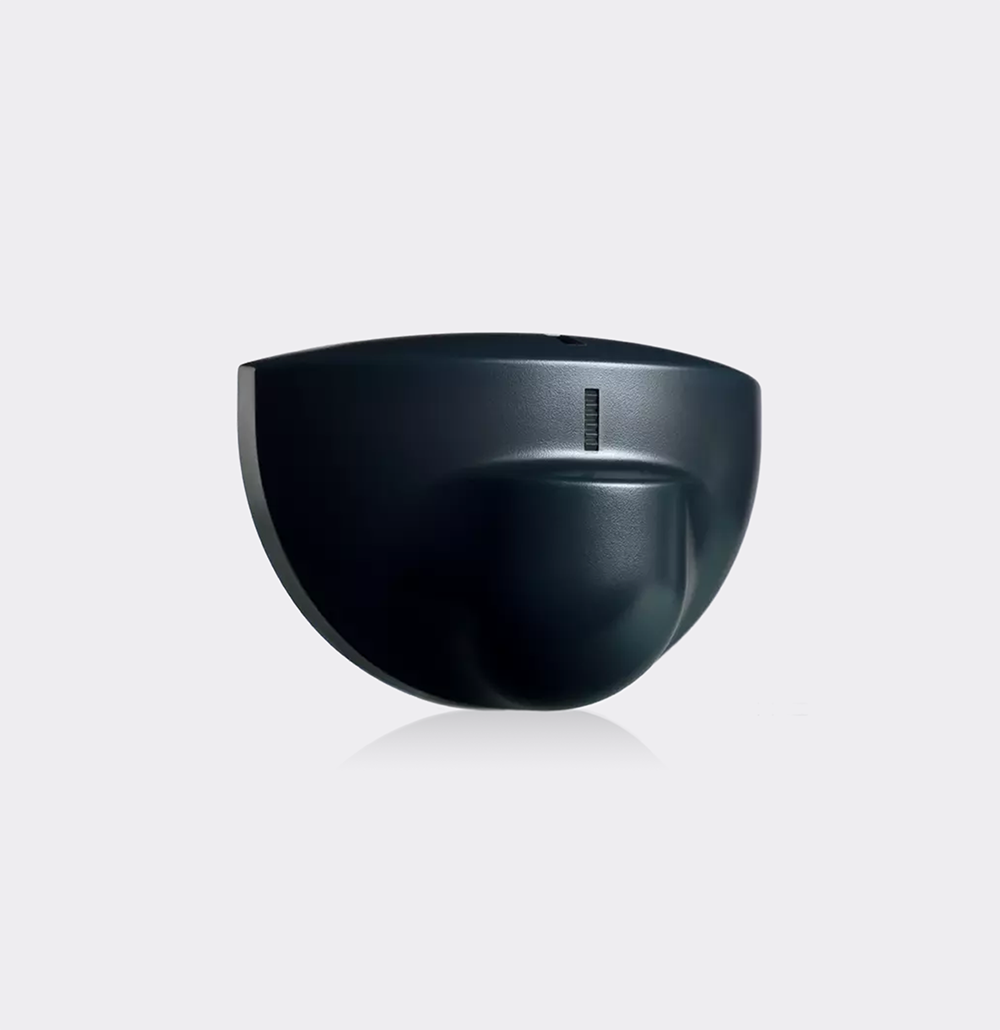

EAGLE
Regular price
$0.00
Sale price
$0.00
Regular price
Unit price
DESCRIPTION
TABEL OF SPECIFICATIONS
| Technology | EAGLE ONE | EAGLE THREE-N |
| microwave and microprocessor | microwave and microprocessor | |
| Transmitter Frequency | 24.150 GHz | 24.150 GHz |
| Transmitter Radiated Power | < 20 dBm EIRP | < 20 dBm EIRP |
| Transmitter Power Density | < 5 mW/cm² | < 5 mW/cm² |
| Detection Mode | motion | motion |
| Min. Detection Speed | 5 cm/s | 5 cm/s |
| Supply Voltage | 12V to 24V AC ±10%; 12V to 24V DC +30% / -10% | 12V to 24V AC ±10%; 12V to 24V DC +30% / -10% |
| Mains Frequency | 50 to 60 Hz | 50 to 60 Hz |
| Max Power Consumption | < 2 W | < 2 W |
| Output | relay (free of potential change-over contact) | relay (free of potential change-over contact) |
| Max. Contact Voltage | 42V AC/DC | 42V AC/DC |
| Max. Contact Current | 1A (resistive) | 1A (resistive) |
| Max. Switching Power | 30W (DC) / 42VA (AC) | 30W (DC) / 42VA (AC) |
| Mounting Height | EAGLE ONE: from 1.8 m to 4 m; EAGLE ONE HM: from 4 m to 5 m | EAGLE ONE: from 1.8 m to 4 m; EAGLE ONE HM: from 4 m to 5 m |
| Degree of Protection | IP54 | IP54 |
| Temperature Range | from -20°C to +55°C | from -20°C to +55°C |
| Dimensions | 120 mm (L) x 80 mm (H) x 50 mm (W) | 120 mm (L) x 80 mm (H) x 50 mm (W) |
| Tilt Angles | 0° to 90° vertical; 30° to +30° lateral | 0° to 90° vertical; 30° to +30° lateral |
| Material | ABS | ABS |
| Weight | 215 g | 215 g |
