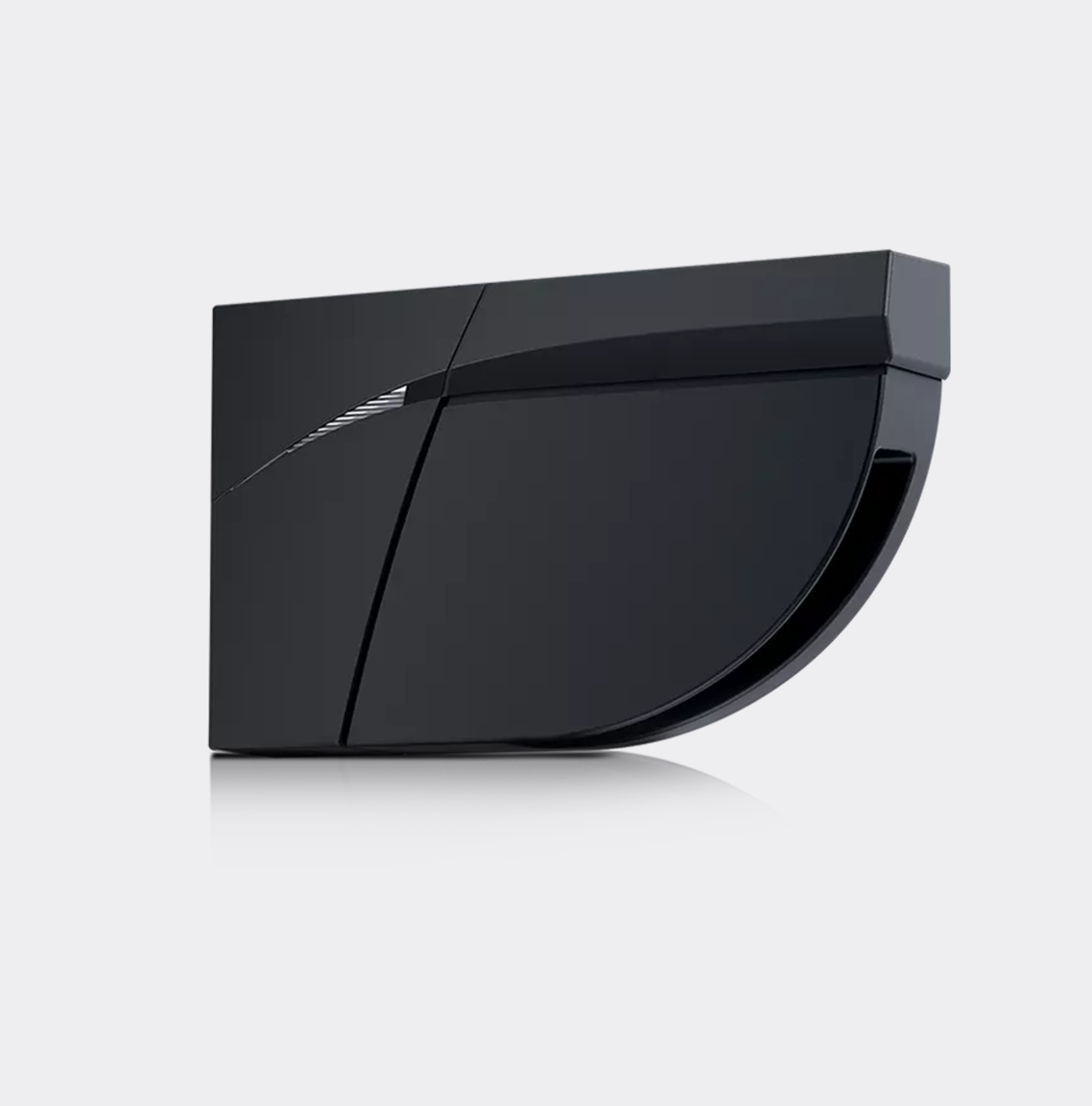

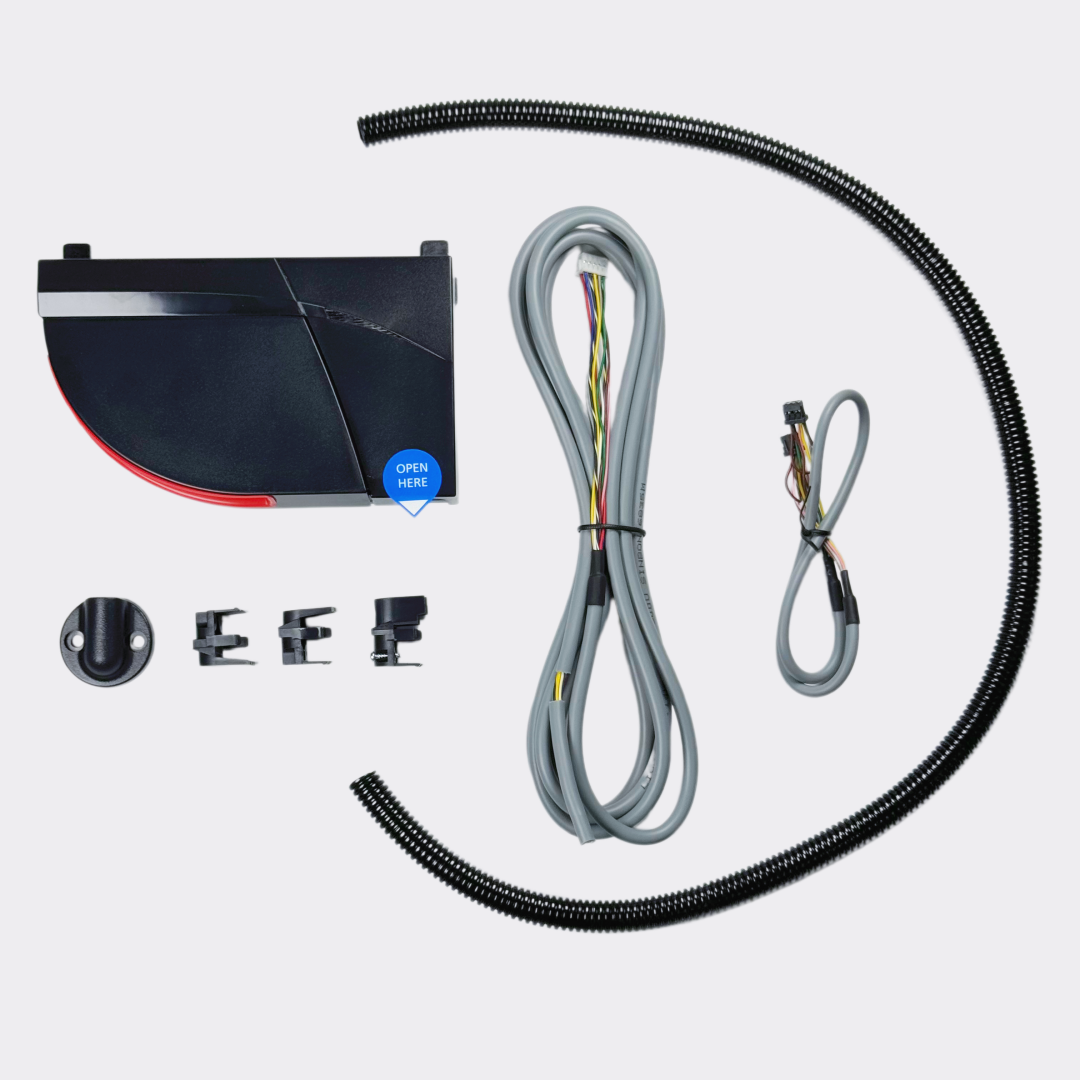

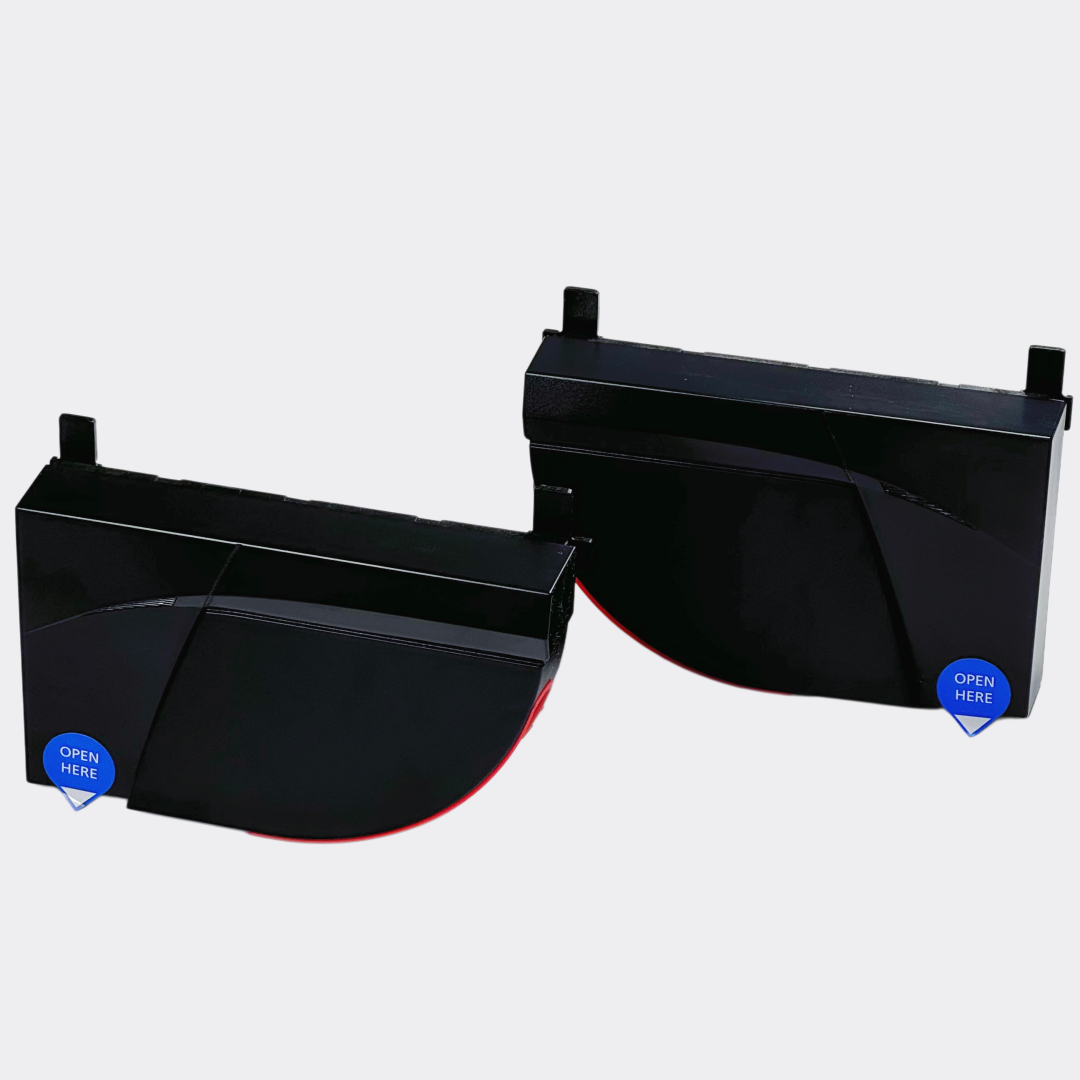

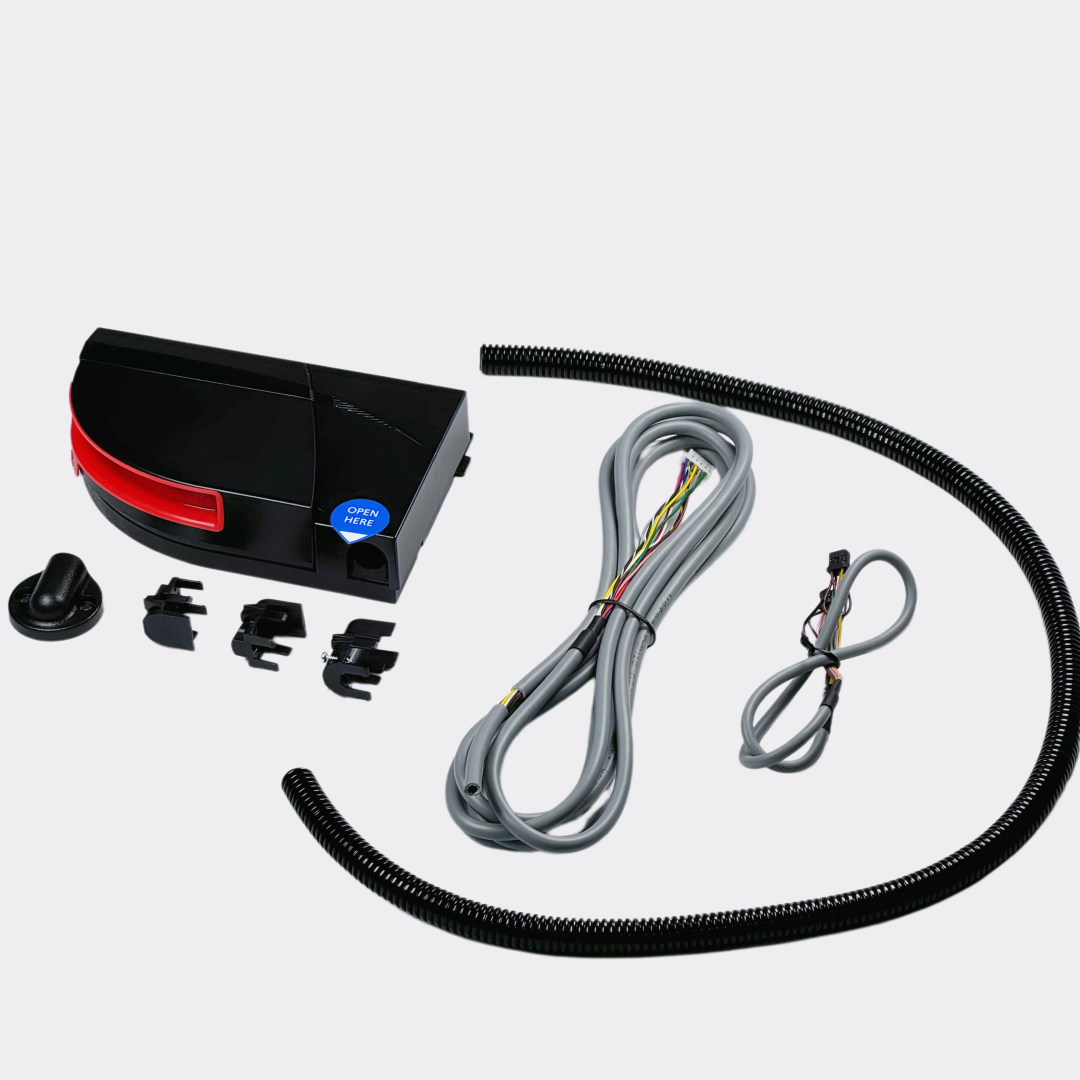

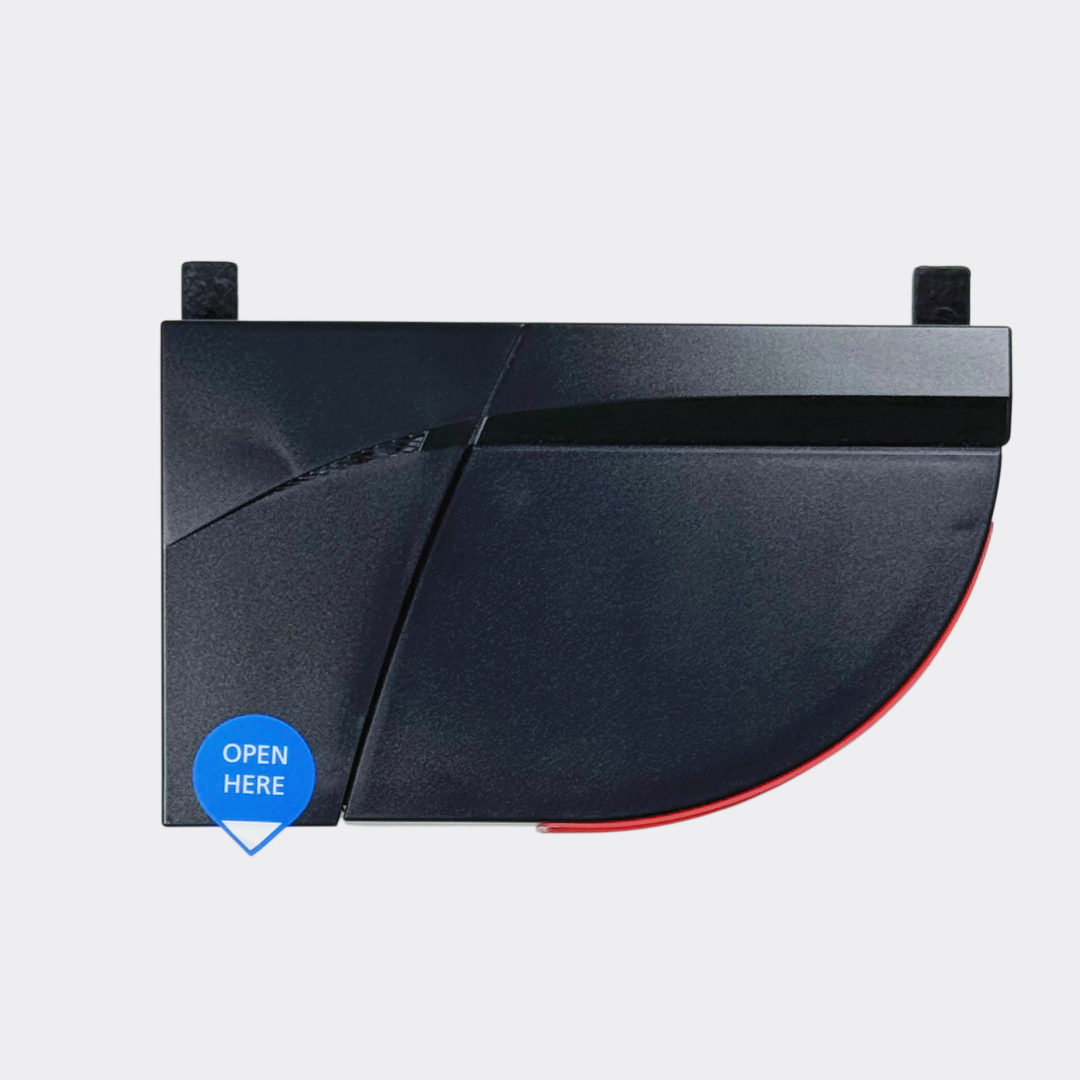

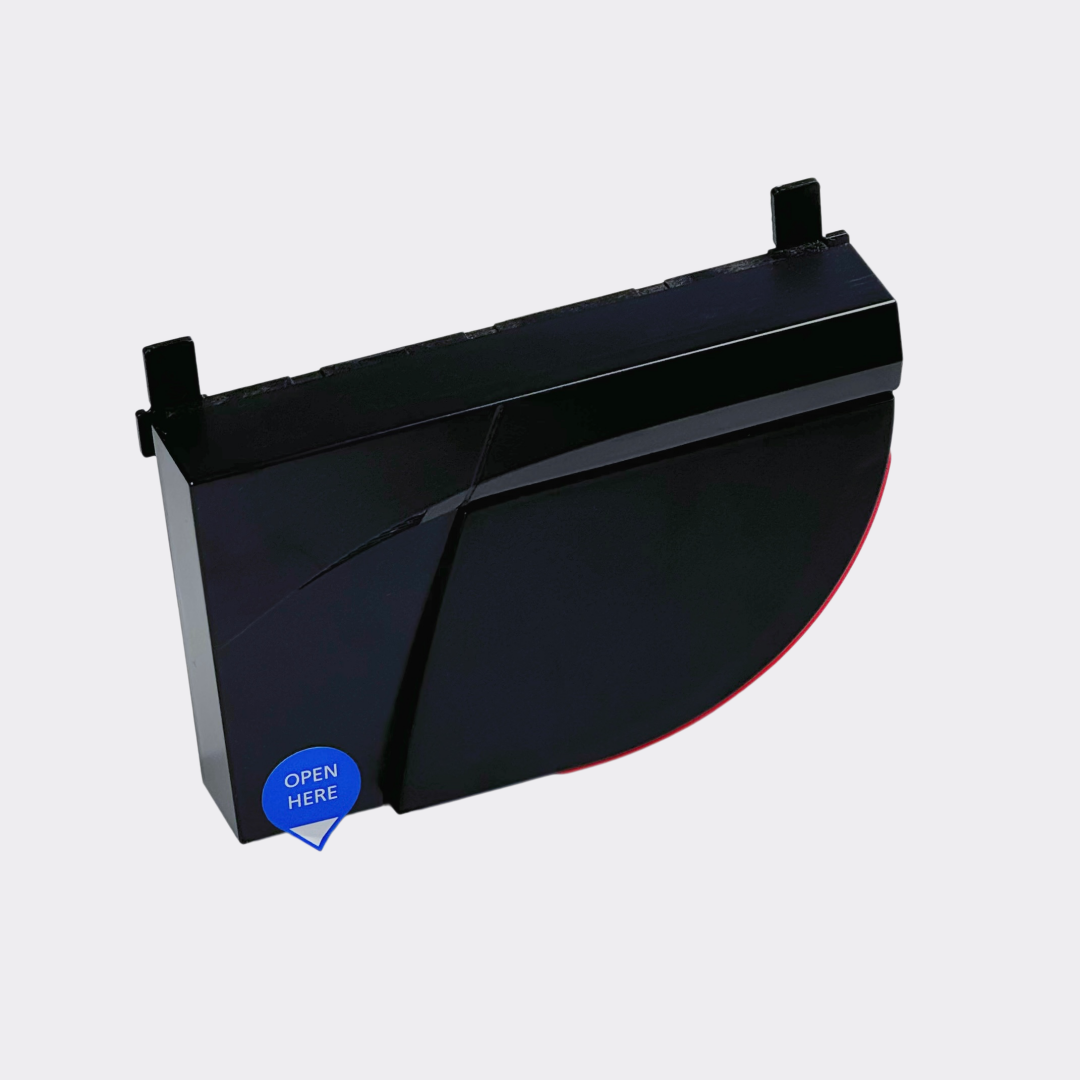

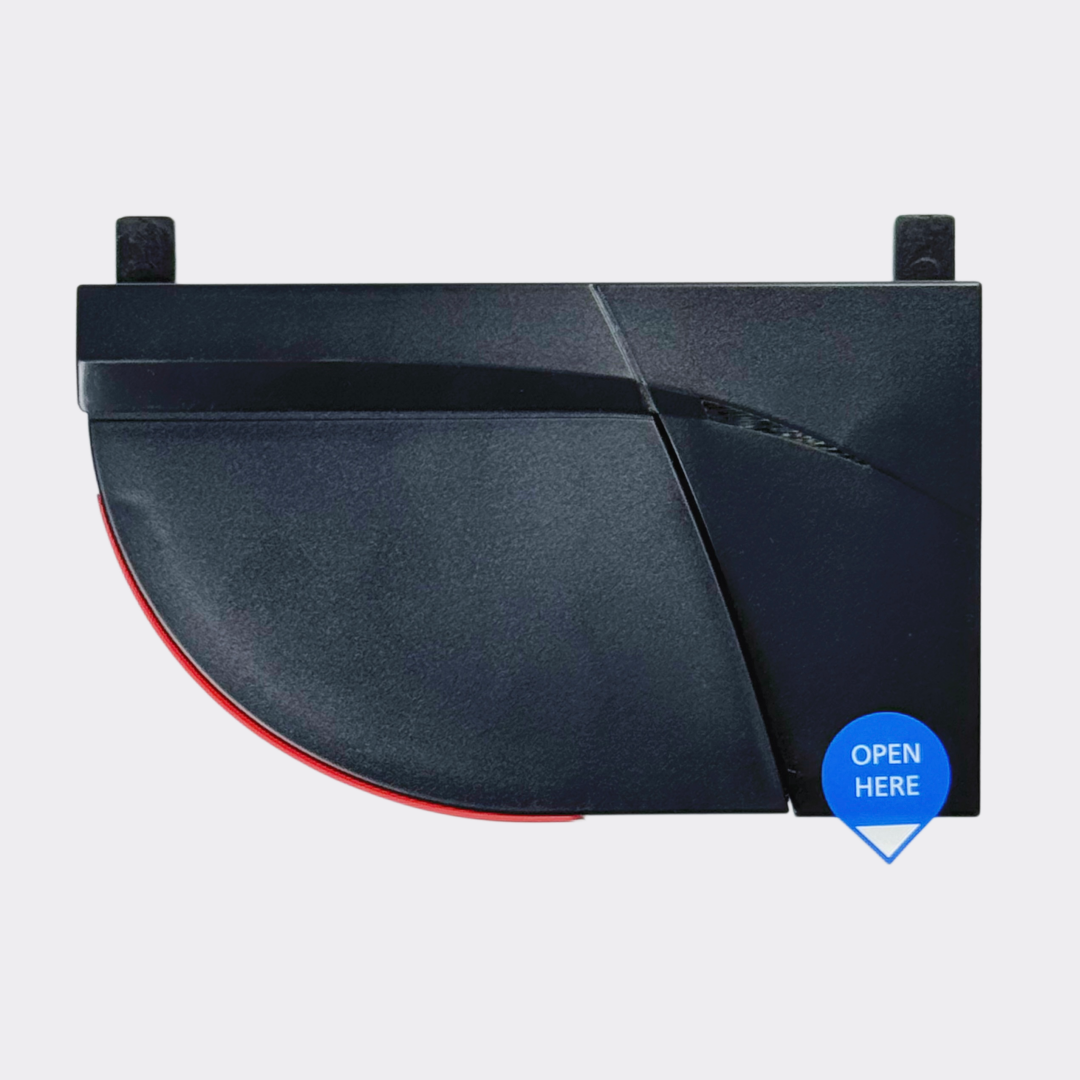

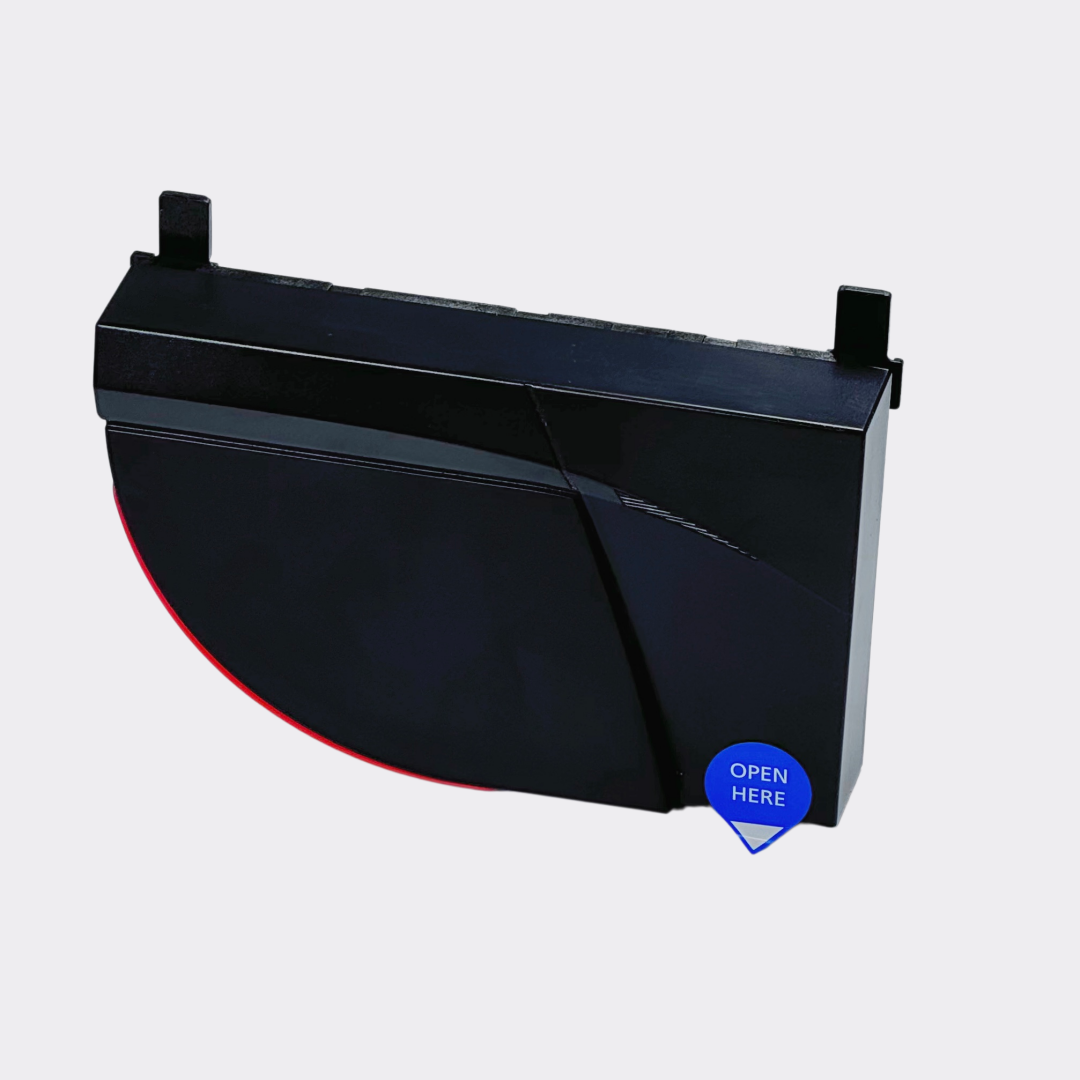

LZR®-FLATSCAN SW
Regular price
$0.00
Sale price
$0.00
Regular price
Unit price
DESCRIPTION
TABLE OF SPECIFICATIONS
| Technology | LASER scanner, time-of-flight measurement |
| Detection Mode | Presence |
| Max. Detection Range | 13' (diagonal with reflectivity of 2%) (e.g., at W = 5' -> max. H = 12') (see Page 15 of Users Guide) |
| Detection Area | Door leaf safety: 90° / Pinch zone safety: 16° |
| Angular Resolution | Door leaf safety: 1.3° / Pinch zone safety: 0.2° |
| Min. Object Size | Door leaf safety: 4" @ 13' (in proportion to object distance, DIP 2 = ON) Pinch zone safety: ¾" @ 13' (in proportion to object distance, DIP 2 = ON) |
| Emission Characteristics | IR Laser: Wavelength 905 nm; max. output pulse power 25 W; Class 1 |
| Supply Voltage | 12V - 24V DC ±15% |
| Power Consumption | ≤ 2W |
| Response Time | Door leaf safety: max. 50 ms / Pinch zone safety: max. 90 ms |
| Test Input | 30 VDC (max. switching voltage) low < 1V high > 10V (voltage threshold) |
| Output | 2 electronic relays (galvanic isolation - polarity free) |
| Max. Switching Voltage | 42 V AC / DC |
| Max. Switching Current | 100 mA |
| LED Signals | Red: Swing side detection Green: Approach side detection Yellow: Error |
| Dimensions | 5" (W) x 3 ½" (H) x 1" (D) (mounting bracket adds ¼") |

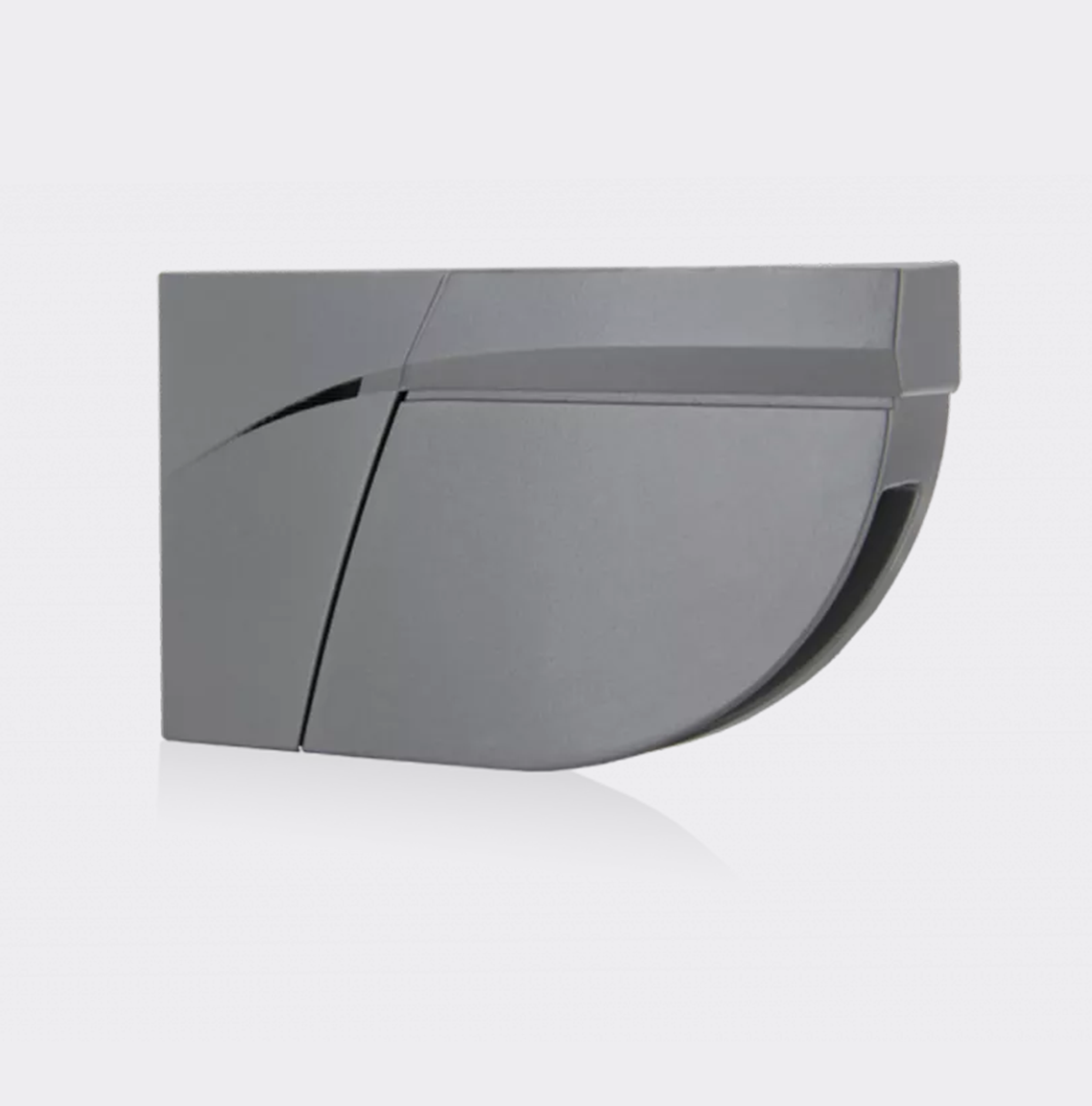

| Material / Color | PC / ASA / Black, White or Silver |
| Tilt Angles | 2° to +10° (without mounting bracket) |
| Degree of Protection | IP54 (EN 60529) |
| Temperature Range | -22°C to +140°F (if powered) |
| Humidity | 0-95% non-condensing |
| Vibrations | ≤ 2 G |
| Min. Door Leaf Speed | 2°/s |
| Norm Conformity | ISO 13849-1 Pld CAT2, IEC 60245-1, IEC 60950-1, IEC 61000-6-2, IEC 61000-6-3, IEC 62061 SIL 2 |
