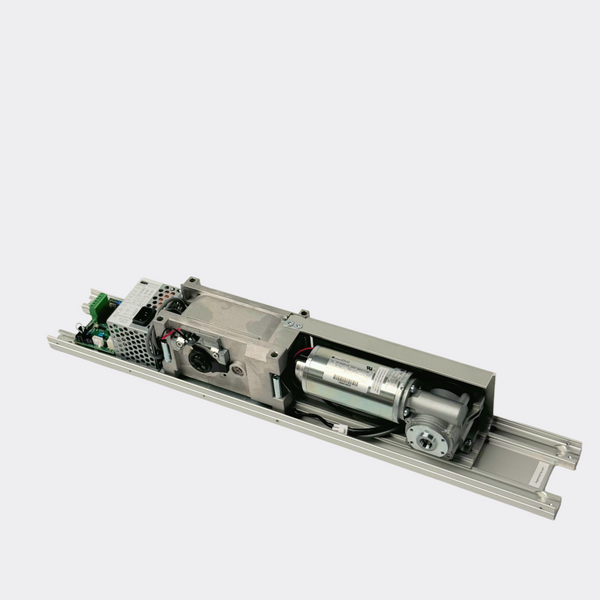

Assa Abloy SW100 Troubleshooting & Maintenance Guide | Error Codes



17. Troubleshooting Guide

Use the table below to identify faults, their possible reasons, and appropriate remedies.

Fault Possible Reasons Remedies / Explanations
The door does not open
or
The motor does not start
Control switch is set to OFF Change the setting of the control switch.
Mains are missing Check the mains switch.
Activation unit does not function Strap impulse inputs.
Presence detection is activated Check that there are no objects in the detection zone.
KILL activated Deactivate KILL.
Potentiometer SPTE not turned to 0° Turn SPTE to 0°.
Mechanical lock is locked Unlock the lock.
The motor starts Something jammed beneath the door Remove object.
Electric striking plate is binding Select lock release.
Adjust striking: Turn potentiometer SPTE until the door-stop hits the stop-block. Put the door in required open position. Tighten the arm system. Turn SPTE to 0°.
Arm system has come loose Adjust arm system (see above).
The door does not close Control switch is set to HOLD Change the setting of the control switch.
Presence impulse is activated Remove objects in the detection zone.
Something jammed beneath the door Remove object.
The operator has unknown spring pre-tension Reset Spring Pre-tension:
  1. Turn up the potentiometer SPTE until it is possible to loosen the door stop.
  2. Remove the door stop and the arm system.
  3. Unplug the mains and let spring close.
  4. Unplug the motor plug.
  5. Mount the drive arm from the arm system and find the 0-pre-tension by moving back and forth.
  6. Loosen the arm.
  7. Connect the motor plug.
  8. Connect the mains.
  9. Turn the SPTE pot to 210° and wait until the spindle stops turning.
  10. Mount the door stop against the closing stop block.
  11. Turn down SPTE to 0º - operator is now factory set.
  12. Adjust open stop position (refer to section 11 of full manual).

17.1 Error Indication (LED Codes)

Status Indicators:

  • Illuminated ERROR LED: Normal operation.
  • Extinguished LED: No mains power.
  • Flashing LED: Operator is out of function (see table below).

Note: An audible warning signal can be achieved by using the accessory board AIU.

LED Flash Frequency Reason Remedy
One 0.3 s flash, pause etc. + 24 V DC external error or sensor monitoring error Check for short circuit or broken monitored sensor.
Two 0.3 s flashes, pause etc. Battery defective (normal operation with mains) Replace battery.
Three 0.3 s flashes, pause etc. Control unit defective Replace control unit.
Four 0.3 s flashes, pause etc. Encoder error Check the encoder cable. Open and close the door manually and thereafter check the automatic function. If the operator is still out of function, replace the drive unit.
Five 0.3 s flashes, pause etc. Locking device defective Check for e.g. short circuit in the locking device. Replace as necessary.
Six 0.3 s flashes, pause etc. EXU-SI board defective Replace EXU-SI board.
Seven 0.3 s flashes, pause etc. Sync cable not connected or defective (double door only)
or
Secondary control unit defective
Replace the sync cable. Check the flash frequency on the secondary LED and take necessary measures.
Eight 0.3 s flashes, pause etc. Motor overheated Wait for the motor to cool down.
Nine 0.3 s flashes, pause etc. Blocked door and constant impulse Toggle impulse.

18. Service & Maintenance Schedule

Regular inspections shall be made according to national regulations and product documentation by an ASSA ABLOY Entrance Systems-trained and qualified technician.

Important: Disconnect mains when replacing the battery. Risk of battery explosion if wrong type of battery is used.

Preventive Maintenance Parts Replacement Interval (Months)

Part Description Part Number Abusive Env. High Traffic
(>100 cycles/h)
Med. Traffic
(<100 cycles/h)
Low Traffic
(<10 cycles/h)
Transmission unit 331003498 60 60 60 60
BK/SI PUSH/PUSH-335 service kit 330000271 6 6 12 24
BK/SI PULL/PULL-220 service kit 330000335 6 6 12 24
BK/SI Adaptor kit 330000270 6 6 12 24
Door stop (transmission until w.1947) 330000230 6 6 12 24
Stop arm kit (transmission from w.1947) 331019378 6 6 12 24
ST-V/H service kit 331003887 6 6 12 24
Micro switch kit 331019159 6 6 12 24
Battery backup unit * 331003567 24 24 24 24
CU-ESD control unit 331003532 60 60 60 60

* If Battery Monitoring DIP is ON, a reset is needed after changing batteries (see section 5.4.6 of manual).
