3.1 Intended Use
The Besam SW300/SW150 is an automatic swing door operator developed to facilitate entrances to buildings and within buildings through swing doors. The Besam SW300/SW150 is an electromechanical operator approved for fire door applications.
It is designed to be installed indoors where it is suitable for almost all types of external and internal swing doors. This widely-used operator serves applications ranging from handicapped access in private homes to high-traffic retail operations.
Installation Requirement: Door operators used in escape routes shall be installed so that the door opens in the escape direction unless the system allows break-out in this direction.

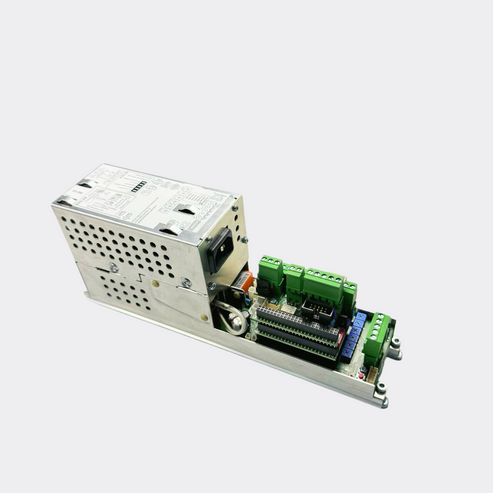

The motor and gear box are combined into a compact unit mounted alongside the control unit within the cover. The operator is connected to the door leaf with a range of different arm systems. The door is designed to offer continuous use, a high degree of safety, and maximum lifetime. The system is self-adjusting to the effects caused by normal variations in weather conditions and to minor friction changes caused by factors such as dust and dirt.
For escape in emergency situations, the door set is opened manually.
This manual contains the necessary details and instructions for the installation, maintenance, and service of the Swing Door Operator Besam SW300/SW150. For usage instructions, please refer to User Manual 1008788.
Note: Save these instructions for future reference.
3.2 Safety Precautions
Before taking the door into operation, ensure the following:
- Complete a risk assessment according to the "Guide for installers of Powered Pedestrian Swing Doors" (PRA-0006).
- Fill in the "Site Acceptance Test" (PRA-0007).
To avoid bodily injury, material damage, and malfunction of the product, the instructions contained in this manual must be strictly observed during installation, adjustment, repairs, and service.
Warning: Training is needed to carry out these tasks safely. Only ASSA ABLOY Entrance Systems-trained technicians should be allowed to carry out these operations.
3.3 Electronic Equipment Reception Interference
The equipment complies with the European EMC directive (US market FCC Part 15), provided it is installed according to the Installation and Service manual.
The equipment may generate and use radio frequency energy. If not installed and used properly, it may cause interference to radio, television reception, or other radio frequency type systems.
If other equipment does not fully comply with immunity requirements, interference may occur. There is no guarantee that interference will not occur in a particular installation. If this equipment does cause interference to radio or television reception (which can be determined by turning the equipment off and on), the user is encouraged to try to correct the interference by one or more of the following measures:
- Re-orient the receiving antenna.
- Relocate the receiver with respect to the equipment.
- Move the receiver away from the equipment.
- Plug the receiver into a different outlet so that equipment and receiver are on different branch circuits.
- Check that protective earth (PE) is connected.
If necessary, the user should consult the dealer or an experienced electronics technician for additional suggestions.
3.4 Environmental Requirements
ASSA ABLOY Entrance Systems products are equipped with electronics and may also be equipped with batteries containing materials which are hazardous to the environment.
Disposal Instructions: Disconnect power before removing electronics and battery. Ensure they are disposed of properly according to local regulations (regarding how and where), as was done with the packaging material.
