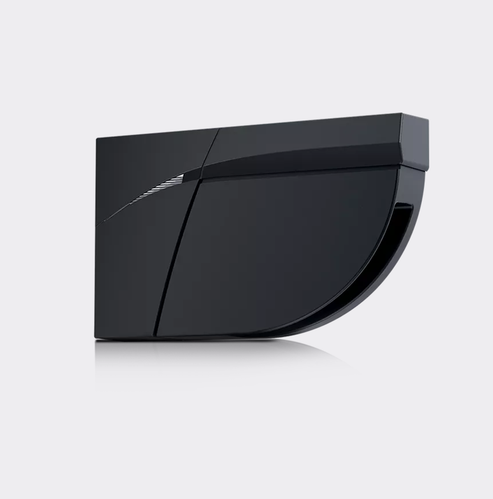

1. DIP-SWITCH 1 Settings
After changing a DIP-switch, the orange LED flashes. A LONG push on the push button confirms the settings. Afterwards, a number of green flashes (x) indicates the number of connected modules.
Make sure the setting of DIP 1 is correct on all modules according to the door side.
2. TEACH-IN
Before launching a teach-in, make sure that:
- Glass surfaces near the door are covered.
- The door controller is set up first.
- The door is closed (use the service mode if needed).
- The door controller is connected to both relay outputs and is fully reacting to them.
- The master-slave cable is connected between the modules.
- The detection field is free of snow buildups, heavy rain, snowfall, fog or other objects or people.
- The laser window protection is removed.
Relay Functions
- RELAY 1: STOP-impuls on the opening side of the door.
- RELAY 2: REOPENING-impuls on the closing side of the door.
Teach-in Steps
- To launch a teach-in, press the push button of the master* module briefly. The LED starts to flash red-green quickly. When installing the sensor on a double swing door, repeat this on the second master module.
- Wait until both sensors flash green. Position yourself in front of the door and stretch out your arm in front of you. Make an up and down movement at closing edge level in order to mark the limit of the detection zones. The LED flashes red while calculating the width of the door wings.
- Wait until the sensors flash green again. Make sure you are outside of the detection field and activate a door opening so the sensors can learn the environment. During the closing of the door, the sensor flashes red.
- Once the door is completely closed again and the LED is off, the teach-in is completed.
* A teach-in on the master configures both the master and the slave. A teach-in on the slave only configures the slave. In case the master and slave module are not aligned, first launch a teach-in on the master and then on the slave.
3. TESTING AND ADJUSTING
Check the correct positioning of the safety fields by placing an object in the detection field.
After changing the angle, the sensor position or the environment, always launch a teach-in and test the correct positioning of the detection fields.
4. FINAL STEPS
Close the cover starting on the narrow side. Do not hesitate to push (listen for "click").
To open the sensor again, position a screwdriver in the notch and pull upwards until the cover comes loose.
If necessary, adjust the tilt angle of the laser curtain by turning the tilt angle adjustment screw (from 2° to 10°).
5. SERVICE MODE
The service mode deactivates the safety detection during 15 minutes and can be useful during an installation, a mechanical teach-in of the door or maintenance work.
- To enter the service mode, push on the button for at least 3 seconds. When the sensor is in service mode, the LED is off.
- To exit the service mode, push again for at least 3 seconds.
The service mode is deactivated automatically when launching a teach-in.
6. DIP-SWITCH SETTINGS (OPTIONAL)
In order to change these settings by remote control, adjust the corresponding DIP-switches.
DIP 2: ENVIRONMENT
- Standard: Default operation.
- Critical*: Switch to CRITICAL when external disturbances are likely to cause unwanted detections (min. obj size, immunity and uncovered zone are increased). *A teach-in overwrites these values automatically.
DIP 3: BACKGROUND
- On: Standard operation with an existing background.
- Off: Switch to OFF when there is no background (glass floor, footbridge...).
DIP 4: PINCH ZONE
- On: Standard pinch zone monitoring.
- Off: Switch to OFF when the hinge area does not need to be secured and objects can cause unwanted detections.
Make a risk analysis to check if the environment requires an additional mechanical protection in the hinge area.
7. OUTPUT CONFIGURATION & FACTORY VALUES
- NO (Normally Open): Default setting.
- NC (Normally Closed): Closed circuit.
Additional Configurations
- Antimasking: Protective function which detects an unwanted object nearby the laser window masking the vision field.
- Background: Reference point in the detection field of the sensor. If no background is present, switch to off.
- Immunity Filter: Increase to filter out external disturbances. The reaction time increases significantly between value 5 and 9. Increase in case of snow, dead leaves, etc.
General Actions
- Teach-in / Full Reset: Factory reset of all values.
- Partial Reset: Factory reset of all values except field dimensions and output configurations.
