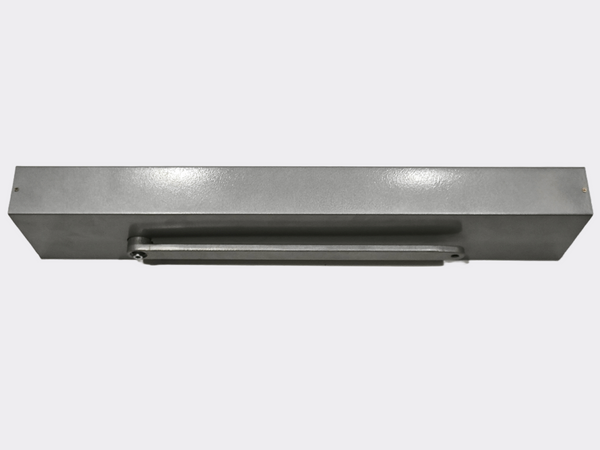

Operator Housing Dimensions
The following table lists the length dimensions for different operator cover variations.
| Model / Cover Type | Length (mm) |
|---|---|
| Basic | 685 |
| Basic RM (with Integrated Smoke Detector) | 735 |
| Vario / Professional | 900 - 1600 |
Installation Configurations
Technical data for various mounting positions and arm types.
Slide Channel (Pull Version) - Hinge Side
Configuration: EN 3-6 slide channel (pull version) on hinge side with ED 100 or ED 250.
- Mounting: Hinge side
- Arm Type: Slide Channel
Slide Channel (Push Version) - Opposite Hinge Side
Configuration: EN 3-4 slide channel (pull version) on opposite hinge side with ED 100 or ED 250.
- Mounting: Opposite hinge side
- Arm Type: Slide Channel
- Note: Not suitable for fire and smoke doors.
Standard Arm (Push Version) - Opposite Hinge Side
Configuration: EN 3-6 arm (push version) on opposite hinge side with ED 100 or ED 250.
- Mounting: Opposite hinge side
- Arm Type: Standard Arm (Push)
- ED 225 arm: max. 225 mm
- ED 500 arm/ED 100: > 226-300 mm
- ED 500 arm/ED 250: > 226-500 mm (max 350 mm with 90 mm spindle extension)
EN 7 Arm (Push Version) - Opposite Hinge Side
Configuration: EN 7 arm (push version) on opposite hinge side with ED 250.
- Mounting: Opposite hinge side
- Arm Type: EN 7 Arm (Heavy Duty)
- ED 225 arm: max. 125 mm
Component Dimensions
Spindle Extensions
Dimensions for axle extensions relative to the operator spindle center.
| Extension Length | Dimension A (Axis Vertical Position) | Dimension C (Total Clearance) |
|---|---|---|
| Standard | 22 | 31 |
| 20 mm | 42 | 51 |
| 30 mm | 52 | 61 |
| 60 mm | 82 | 91 |
| 90 mm (ED 250 only) | 112 | 121 |
Pivot Pins
Dimensions for arm pivot pins.
| Pivot Pin | Dimension B (Pin Height) | Dimension D (Total Height) |
|---|---|---|
| 12.5 mm | 29 | 19 |
| 25 mm | 42 | 32 |
Minimum System Widths
Required minimum widths for different installation setups to ensure proper operation.
Standard Configuration
- Standard: min. 1,400 mm
- With ESR door coordinator: min. 1,450 mm
- With integrated emergency power supply: min. 1,610 mm (Standard) / min. 1,700 mm (CPD arm)
Asymmetrical Door Systems
Minimum door leaf width requirements for asymmetrical double doors:
- General: 630 mm
- CPD arm configuration: 630 mm
- EN 3-6 arm (push) configuration: 510 mm
- EN 7 arm (push) configuration: 610 mm
