19. Troubleshooting
Use the table below to identify common faults, their possible reasons, and recommended remedies.
| Fault | Possible Reason | Remedies/Explanations |
|---|---|---|
| The door does not open The motor does not start |
Control switch is set to OFF | Change the setting of the control switch. |
| Electrical power is missing | Check the electrical power switch. Check incoming power. | |
| Activation unit does not function | Strap impulse inputs. | |
| Presence detection is activated | Check that there are no objects in the detection zone. | |
| KILL activated | Deactivate KILL. | |
| Potentiometer SPTE not turned to 0° | Turn SPTE to 0°. | |
| Mechanical lock is locked | Unlock the lock. | |
| Electric striking plate is binding | Select lock release. Adjust striking: Turn potentiometer SPTE until the door-stop hits the stop-block. Put the door in required open position. Tighten the arm system. Turn SPTE to 0°. |
|
| The motor starts | Something jammed beneath the door | Remove object. |
| The door does not close | Control switch is set to HOLD | Change the setting of the ON/OFF/HOLD open switch. |
| Presence impulse is activated | Remove objects in the detection zone. | |
| Arm system has come loose | Something jammed beneath the door, or unknown spring pre-tension |
Remove object. Follow these steps to reset:
Note: Adjusting the SPTE before power up increases the SPTE range 4 times (i.e., 180° on the SPTE will tension the spring 2 turns/720°). Adjusting to zero during power on will reset range of SPTE.
|
19.1 Error Indication
- During normal operation the ERROR LED on the control unit is illuminated.
- An extinguished LED indicates that there is no electrical power.
- A flashing light on the LED indicates that the operator is out of function (see table below).
- An audible warning signal can be achieved by using the accessory board AIU. It is connected to the 24 VDC and plugged into the EXU-SA relay output terminal.
| LED Flash Frequency | Reason | Remedy |
|---|---|---|
| One 0.3s flash, 10s pause | Kill impulse is active | Make a kill reset, reset kill switch or reset fire alarm. |
| One 0.3s flash, 2s pause | +24 V DC external error | Check for short circuit. |
| Two 0.3s flashes, pause | Sensor monitoring error | Check for broken monitored sensor. |
| Three 0.3s flashes, pause | Battery defective | Replace battery. If Battery Monitoring DIP is ON, then probably a reset of this is needed (after changed batteries), see section 5.5.5. |
| Four 0.3s flashes, pause | Control unit defective (Encoder error) |
Check the encoder cable. Replace control unit.
Open and close the door manually and thereafter check the automatic function. If the operator is still out of function replace the drive unit. |
| Five 0.3s flashes, pause | Locking device defective | Check for short circuit in the locking device. Replace locking device. |
| Six 0.3s flashes, pause | EXU-SI board defective | Replace EXU-SI board. |
| Seven 0.3s flashes, pause | Sync cable not connected or defective (double door only) / Secondary control unit defective | Connect the sync cable. Replace the sync cable. Check the flash frequency on the secondary LED and take necessary measures in accordance with this table. |
| Eight 0.3s flashes, pause | Motor overheated | Wait for the motor to cool down. |
| Nine 0.3s flashes, pause | Blocked door and constant impulse | Toggle impulse. |
| Ten 0.3s flashes, pause | Settings have been made that requires a new learn or the learn has failed | Check set up. Make a new learn. |
| Eleven 0.3s flashes, pause | Arm setting is Concealed (In-swing) and break-out switch is open or not connected | Change arm setting or see the manual for OHC, if such is installed. |
20. Service / Maintenance
Regular inspections shall be made according to national regulations and product documentation by an ASSA ABLOY Entrance Systems-trained and qualified technician. The number of service occasions should be in accordance with national requirements and product documentation. This is especially important when the installation concerns a fire-approved door or a door with an emergency opening function.
As with all other technical products, an automatic door needs maintenance and service. It is essential to know the importance of maintenance to have a reliable and safe product. Service and adjustments will ensure a safe and proper operation of an automatic door unit.
The “Service Log Book” shall be used together with the “Site Acceptance Test and Risk Assessment” document (PRA-0007) provided. Keep both documents available for maintenance and service records.
Preventive Maintenance Schedule
The table below shows the recommended interval in months, when to replace parts during preventive maintenance.
| Part Number | Part | High Traffic (>100 cycles/hour) | Medium Traffic (<100 cycles/hour) | Low Traffic (<10 cycles/hour) | Abusive Environment |
|---|---|---|---|---|---|
| 330000271 | BK/SI PUSH arm service kit | 6 | 6 | 12 | 6 |
| 330000272 | BK/SI PULL arm service kit | 6 | 6 | 12 | 6 |
| 330000335 | BK/SI PULL/PAS arm service kit slim | 6 | 6 | 12 | 6 |
| 330000276 | Stop arm kit | 6 | 6 | 12 | 6 |
| 330000275 | Microswitch kit | 6 | 6 | 12 | 6 |
| 330000270 | BK/SI Adaptor kit | 12 | 12 | 24 | 6 |
| 331007291 | Transmission unit | 60 | 60 | 60 | 60 |

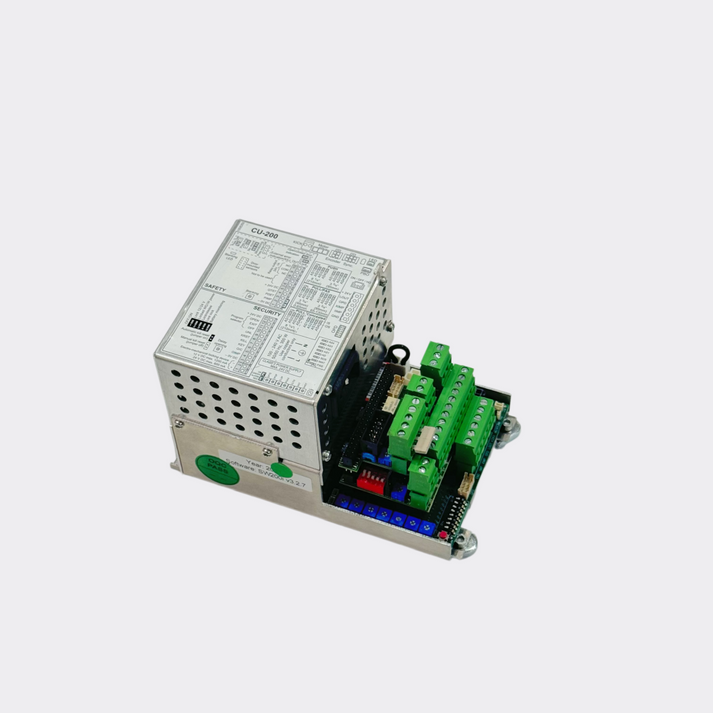

| 331008346 | Control unit CU-200 with EXU-boards | 60 | 60 | 60 | 60 |
| 33738753 | Battery* | 24 | 24 | 24 | 24 |
* Warning: Disconnect mains when replacing battery. Risk of battery explosion if wrong type of battery is used. If Battery Monitoring DIP is ON, then a reset of this is needed (after changed batteries), see section 5.5.5.
