SLH250 (SLM - Dunker Brushed Moter)
Regular price
$799.00
Sale price
$799.00
Regular price
Unit price
DESCRIPTION
 |
Dunkermotoren GR 63*55 ● DIN 18650 - 1 million test cycles at 4 000 cycles per day ● EB16005 |
 |
SLM controller function programs ● Off ● Automatic ● Permanent open ● Partial open ● Exit only ● Night-bank switch |
| High molecular polymer material, resistant to fatigue and wear |  |

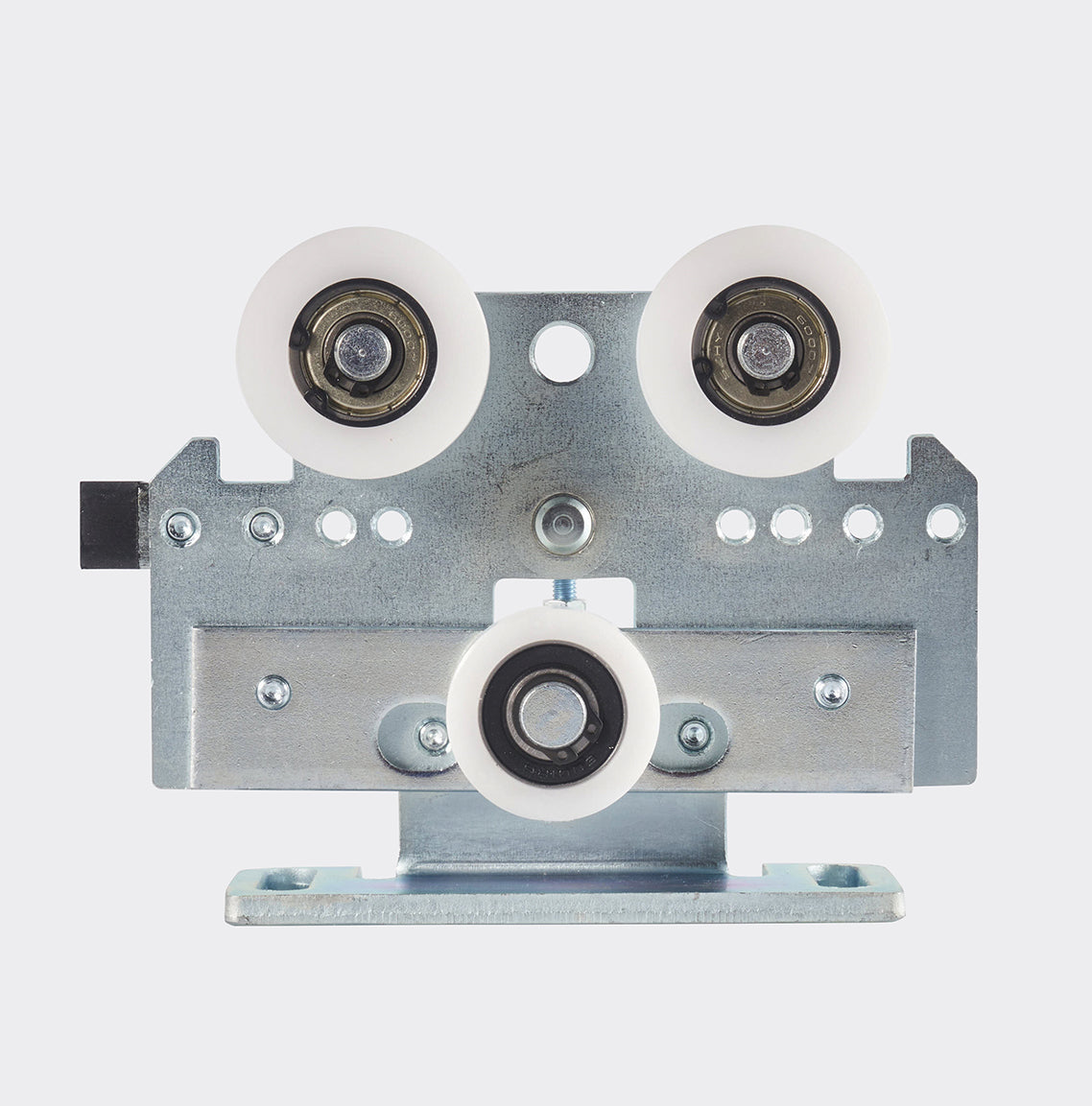

Noiseless Track with rubber strips |  |
Description

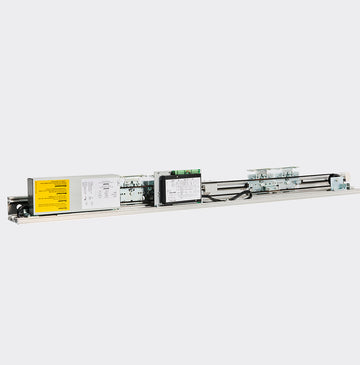

SLM 180 automatic door system uses the German DUNKER brushed DC motorand the motor is equipped with a reliable power regulation electronic system.It has an automatic monitoring function,which can monitor the running status and results of the system to ensure that the system operates without failure. At the same time, the system has a self-check function. Through the various combinations of the LED lights on the electroniccontrol panel, various failures occur.
Specification
| Door parameters | SLH 250 - Single Motor |
SLH 250 - Dual Motor |
| Single panel sliding door -Transit width LW -Door panel weight, max. |
700-3000mm 1×250kg |
700-6000mm 1×500kg |
| Double panel sliding door -Transit width LW - Door panel weight,max. |
800-3000mm 2×150kg |
800-6000mm 2×250kg |
| Technical Specification |
SLH 250 - Single Motor |
SLH 250 - Dual Motor |
| Height | 100/160 mm | 110 mm |
| Depth | 180 mm | 180 mm |
| Opening and closing force max. | 150 N | 220 N |
| Opening speed | 10-70 cm/s | 30-80 cm/s |
| Closing speed | 10-50 cm/s | 30-80 cm/s |
| Hold time - open | 0-10/30 s | 0-10/30 s |
| Moter | 100W Brushed Moter | 100W Brushed Moter |
| Voltage, frequency | 230 V, 50/60 Hz | 230 V, 50/60 Hz |
| Power consumption | 100 W | 200 W |
| Admissible temperature | -15-+50°c | -15-+50°c |
