Gilgen Door Systems Control Panel (Bedis SLH250/SLM)
Genuine Gilgen Door Systems Control Panel (BEDIS)
Ensure your automatic sliding doors operate at peak efficiency with the authentic gilgen door systems control panel. Widely recognized in the industry as the Bedis switch pad or electronic remote control, this highly reliable interface is the standard control unit designed seamlessly for Gilgen SLM series drive systems.
Product Features & Benefits
- OEM Quality: Genuine replacement part designed specifically for Gilgen automatic door operators.
- Full Control: Acts as the primary mode selector, allowing you to easily switch between operating modes (Automatic, Open, Closed, Night, Exit Only).
- Durable Interface: The robust membrane keypad is built to withstand high-traffic industrial and commercial environments.
- Easy Installation: Plug-and-play compatibility with your existing control setups.
Technical Specifications
This Bedis program switch is critical for the daily management of your entrance system. If your current selector is unresponsive or has a cracked faceplate, immediate replacement is recommended to maintain building security.
- Compatibility: Gilgen SLM Series / SLH250 Sliding Doors
- Part Type: Electronic Remote Control / Digital Program Switch
- Model: BEDIS

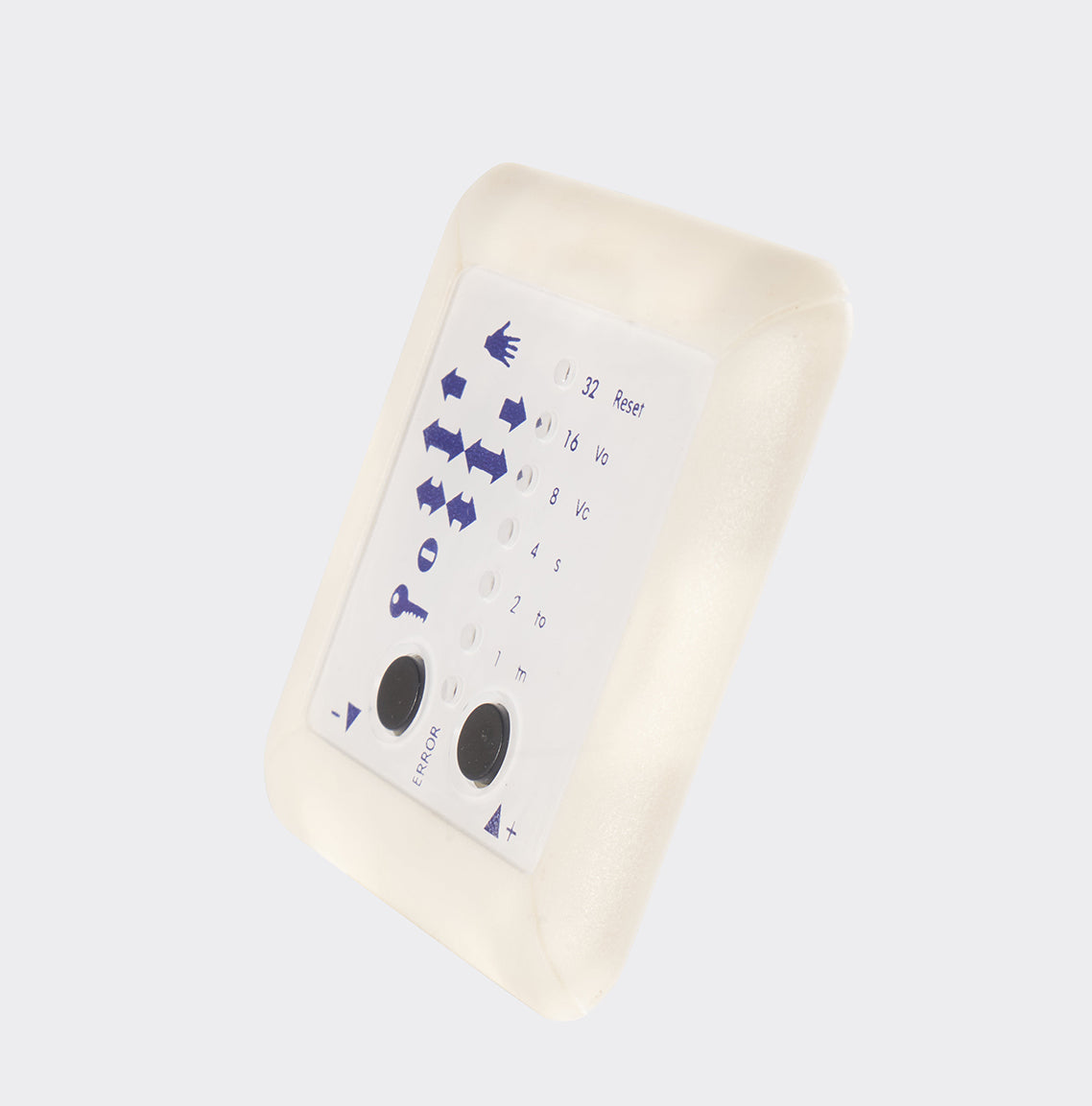

- Display & Interface: Diagnostic LEDs with membrane push buttons
- Mounting: Fits into any standard plug socket (supports surface or concealed mounting)
Technical & Troubleshooting Support
Gilgen Bedis Manual & System Overview
For proper installation and operation, always refer to the official gilgen bedis manual. The BEDIS unit features a patented data transmission design meant for precise control and easy diagnostics.
- System Architecture: Utilizes a highly stable two-wire bus system for data transmission.
- Functionality: Provides access to a wide choice of options for the selection of door programs, adjustment of running functions, and a built-in self-diagnostic display.
- Documentation: Looking for the full programming guide? You can access the bedis handleiding (manual) for complete configuration steps.
BEDIS Wiring Diagram & Connection Requirements
When connecting the operator, strictly follow the technical specifications outlined in the bedis wiring diagram to avoid signal loss or control failure.
- Required Cable Type: The connection must use a shielded cable (specifically U72M or DIN 47100 CY).
- Maximum Distance: Using the specified shielded cable guarantees reliable functioning and data transmission up to a distance of 50 meters (50 m).
- Port Setup: Simplified two-wire connection minimizing installation complexity.
Gilgen Bedis Error Codes & Self-Diagnostic Display

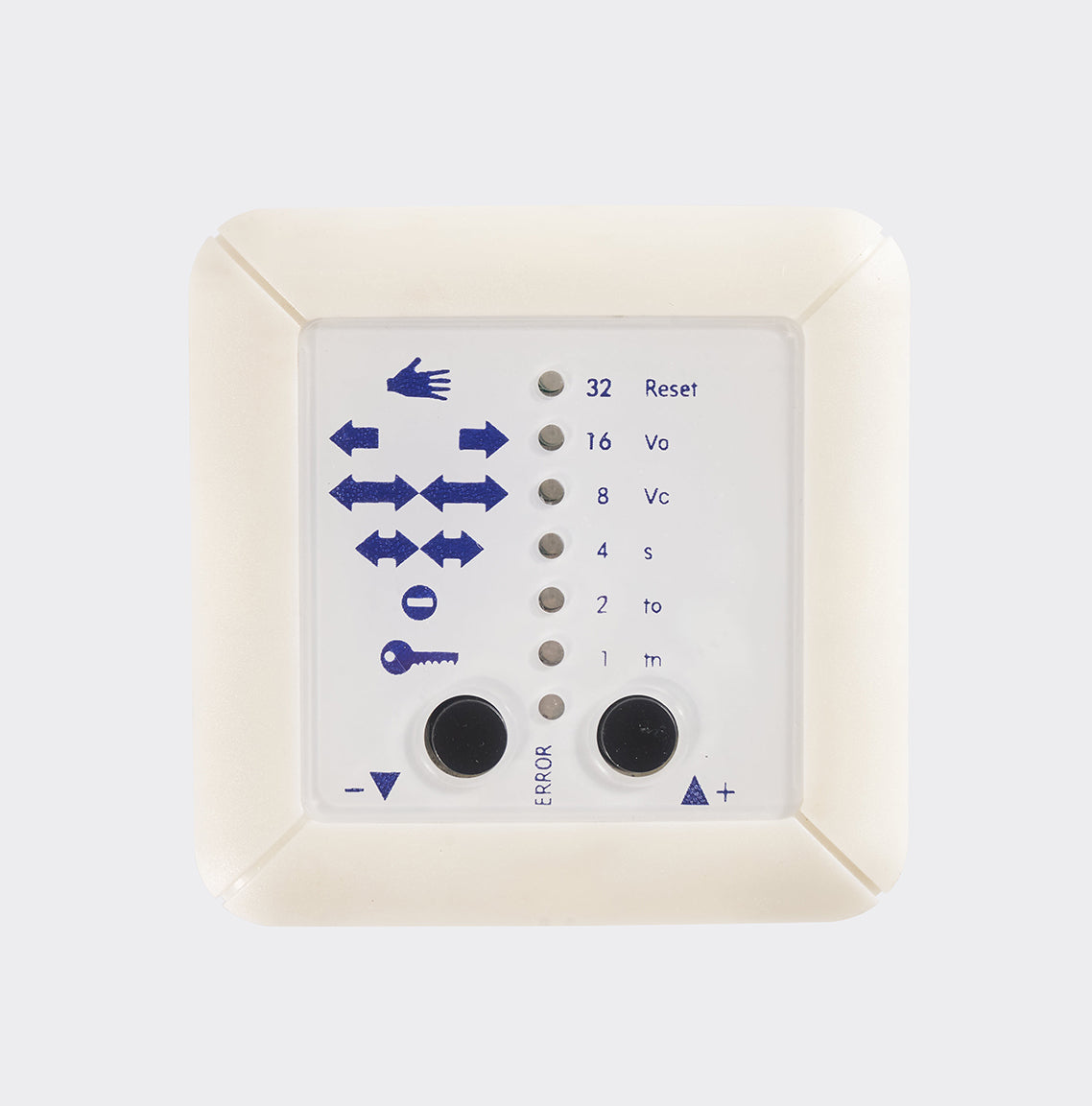

When your sliding door stops working, the BEDIS unit provides a visual self-diagnostic display to help identify gilgen door error codes. Below is the breakdown of the diagnostic LED panel used for troubleshooting:
| Code / LED Indicator | Meaning & Status | Troubleshooting & Action |
|---|---|---|
| ERROR LED | General System Fault | Indicates an active fault. You must read the numbered LEDs to identify the specific error. |
| LED 32 (Reset) | System Reset / Reboot | Indicates the system requires a hard reset. You can perform a gilgen slm reset by pressing the designated reset button to clear transient faults. |
| LED 16 (Vs) / 8 (Vc) | Speed Parameter Status | Relates to opening (Vs) or closing (Vc) speed settings. Recalibrate if the door stutters. |
| LED 4 / 2 / 1 | Diagnostic Binary Codes | Specific sensor, motor, or lock faults. Check surrounding hardware based on the specific binary combination. |
Need a Replacement?
If you have checked the wiring, continuously face the red ERROR LED, and the reset steps cannot eliminate the fault, it usually indicates that the internal electronic components of the control unit have suffered irreversible damage (e.g., from a power surge). In this case, we highly recommend purchasing a brand-new, genuine replacement part to restore your Gilgen SLM door's automatic operation immediately.
