C1.1 Knowing Act Switches
Ensure the proper signage is applied when using knowing act switches for the dorma ED100 and dormakaba ED250 operators.
ACTIVATE
SWITCH
TO OPERATE
SWITCH
TO OPERATE

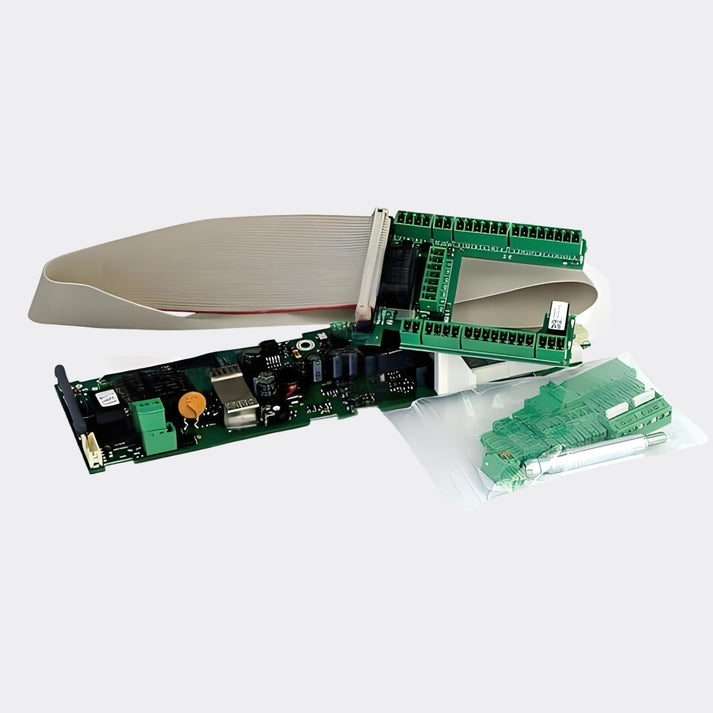

C1.2 Knowing Act Switch Wiring Diagrams
Interior Activation Input
Terminalfunction
42GND (0 V)
41Signal Input
1+ 24 V
Exterior Activation Input
TerminalFunction
43Signal Input
3GND (0 V)
1+ 24 V
Knowing Act Switch (Interior) ⟷ Operator Terminals
Knowing Act Switch (Exterior) ⟷ Operator Terminals
(Visual representation of connections described in Fig C1.2.2)
NOTICE
- Knowing act devices include items such as card readers.
- Always refer to the specific device wiring diagram for detailed pinouts when wiring a dormakaba ED50.
- 24 V is available for illuminated knowing act devices.
