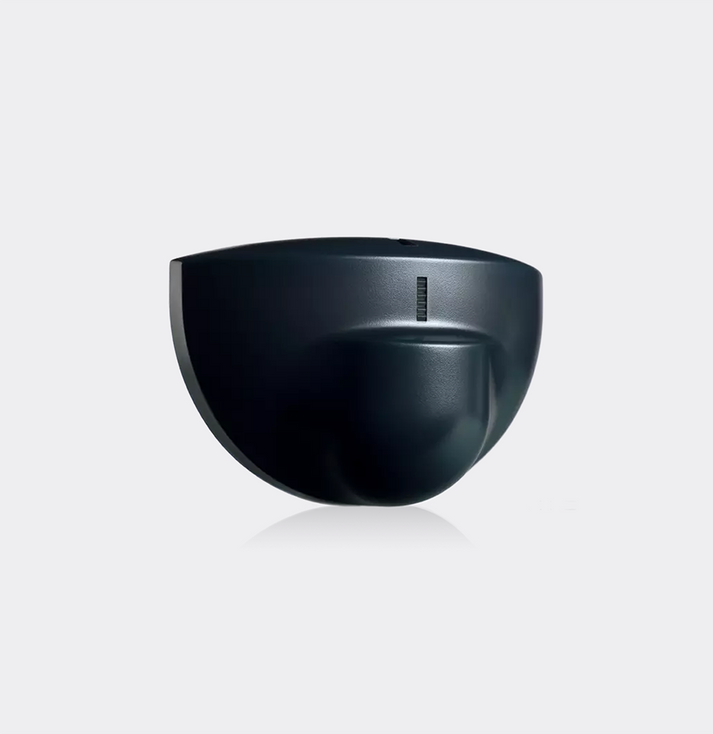

Description
- Main connector
- Antenna
- Push buttons
- Cover
Other use of the device outside of the permitted purpose can not be guaranteed by the manufacturer.
Technical Specifications
| Technology | Microwave and microprocessor |
|---|---|
| Transmitter frequency | 24.150 GHz |
| Transmitter radiated power | < 20 dBm EIRP |
| Transmitter power density | < 5 mW/cm² |
| Detection mode | Motion |
| Min. detection speed | 5 cm/s |
| Supply voltage | 12V to 24V AC ±10%; 12V to 24V DC +30% / -10% |
| Mains frequency | 50 to 60 Hz |
| Max power consumption | < 2 W |
| Output | Relay (free of potential change-over contact) |
| Max. contact voltage | 42V AC/DC |
| Max. contact current | 1A (resistive) |
| Max. switching power | 30W (DC) / 60VA (AC) |
| Mounting height | From 4 m to 5 m |
| Degree of protection | IP54 |
| Temperature range | From -20 °C to + 55 °C |
| Dimensions | 120 mm (L) x 80 mm (H) x 50 mm (W) |
| Tilt angles | 0° to 90° vertical; -30° to +30° lateral |
| Material | ABS |
| Weight | 215 g |
| Cable length | 2.5 m |
| Conformity | RED 2014/53/EU, RoHS 2 2011/65/EU |
Specifications are subject to changes without prior notice. Measured in specific conditions. See product label for serial number. This user's guide is an informative document and can not be seen as a commitment of result.
Opening the Sensor & Mounting & Wiring
- Apply the mounting template.
- Drill 1 hole for the cable and pull it through. Drill 2 holes for the screws.
- Position the cable as indicated.
- Fix the sensor firmly.
Tips
- Avoid proximity to neon lamps or moving objects.
- Do not cover the sensor.
- Avoid vibrations.
- Do not touch electronical parts.
Wiring Configuration
- 1 - BROWN - POWER SUPPLY
- 2 - GREEN - POWER SUPPLY
- 3 - WHITE - COM
- 4 - YELLOW - NO
- 5 - YELLOW - NC
Mechanical Adjustments & Settings
Adjust the lateral and vertical antenna angle.
Configuration (by remote control or push buttons)
- Configuration: A = active output (NO-contact), P = passive output (NC-contact)
-
Detection Mode:
- bi = two-way detection
- uni = one-way detection towards sensor
- uni PRM = one-way detection also of people with reduced mobility
- uni AWAY = one-way detection away from sensor
- Door Control: auto (automatic), open (sensor detects constantly/LED ON), closed (standby/LED OFF).
Resetting to Factory Values: Available via hardware or remote settings.
Troubleshooting
| Symptom | Possible Cause | Solution |
|---|---|---|
| The door remains closed. The LED is OFF. | The sensor power is off. | Check the wiring and the power supply. |
| The door does not react as expected. | Improper output configuration on the sensor. | Change the output configuration setting on each sensor connected to the door operator. |
| The door opens and closes constantly. | The sensor is disturbed by door motion or vibrations. | Make sure the sensor is fixed properly. Make sure the detection mode is unidirectional. Increase the antenna angle. Increase the immunity filter. Reduce the field size. |
| The LED flashes quickly after unlocking. | The sensor needs an access code to unlock. | Enter the right access code. If you forgot the code, cut and restore power to access the sensor. |
| The sensor does not respond to the remote control. | Batteries in the remote control are weak or installed improperly. / Remote control badly pointed. | Check and change the batteries. Point the remote control towards the sensor. |
| The door opens for no apparent reason. | Rain, highly reflective environments, or opposite door movement. | Make sure the detection mode is unidirectional. Increase the immunity filter. Change the antenna angle. Install the ORA (rain accessory). |
