Operation Mode Selectors
The door functions are set with different operate mode selectors. The operation mode selector is available with 5 buttons (plus RESET).
If monitored emergency unit is a demand, a test of the emergency unit is performed when the operate mode selector is set from OFF or OPEN to any other operation mode.
Functions
The following operating functions can be obtained: OPEN, AUTO PARTIAL, AUTO, ONE WAY, and OFF.
The door is permanently open. The door can be moved by hand (e.g., for window cleaning). All activation units except for the emergency push button (if fitted) are disconnected.
Two-way traffic, AUTO PARTIAL is obtained. The door can be opened partially with the inner and outer activation units and with a key switch (if fitted). With an emergency push-button, the door opens fully.
Two-way traffic, normal operation of the door. The door can be opened with the inner and outer activation units and with a key switch/emergency push-button (if fitted).
Passage from inside only. The door is normally locked if an electromechanical locking device has been fitted. The door can only be opened with the inner activation unit or with a key switch/emergency push-button (if fitted).
This function is only used on emergency escape doors after it is certain that all people have left the building. Features include:
- The door cannot be opened with inner and outer activation units.
- The door is locked if an electromechanical locking device has been fitted.
- The door can be opened partially with a key switch (if fitted).
- With an emergency pushbutton (if fitted) the door opens fully.
- The door can also be opened partially from the operation mode selector if the arrow down button is held for 2 seconds. No access code is necessary for this, and the key impulse is indicated by briefly showing a blue light to the left of the open symbol or text and then a flashing blue light to the left of the closed symbol or text for another 15 seconds.
Reset Instructions
Standard Reset
By briefly pushing the globe of the logotype with a narrow object, the door operator will make a RESET function with a system test. The door will return to the closed position (if not in operation mode selection OPEN or if an error is present) and is then ready for normal operation.

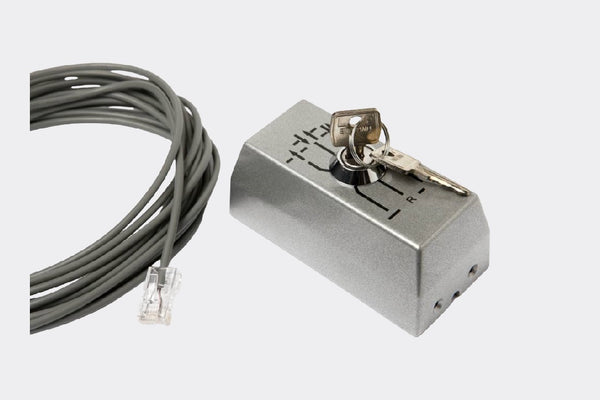

PSK-6U Key Reset
Turn the key clockwise to the position “R” (six o’clock) and insert a narrow object in the small hole on the operation mode selector and push briefly. Then turn the key counter-clockwise back to the requested setting and the door operator will make a RESET function with a system test. The door will return to the closed position (if not in operation mode selection OPEN or if an error is present) and is then ready for normal operation.
Access Codes and Selection
The different operation modes are selected by pushing the arrow symbols pointing upwards (Up) or downwards (Down). When a button is pushed a buzzer will sound. The present selection is indicated by a blue light to the left of the function symbol or text.
When an arrow symbol has not been pushed for 15 seconds the access will be locked.
Selectable Codes
Three alternative selectable codes are used:
- Default Access: Obtained by pushing the arrow symbol pointing up or down for 2 seconds.
-
Optional Access Code: Access is obtained by briefly pushing in turn:
- Arrow UP symbol
- Arrow DOWN symbol
- Arrow DOWN symbol again
- Arrow UP symbol (last)
- No Access Code: Direct selection.
Flashing Light Indicators (Troubleshooting)
Red Light
Every other second: Indicates an error in the door operator. If the error remains after a RESET then service is needed.
Quickly flashing (3/sec): Indicates an internal error in the operation mode selector.
Orange Light
Every other second: Indicates a status or condition that can be cleared by the owner (e.g., a break-out door is standing open).
Yellow Light
Every other second: Indicates that maintenance is needed.
Integrated Safety
To permit a safe passage between closing doors, the doors reverse immediately if an obstruction is detected. They then resume their interrupted movement at low speed to check whether the obstruction has disappeared or not.
If an obstruction is detected between opening doors and surrounding walls or interior fittings, the doors stop immediately, and then close after a time delay.
Parts Overview (Reference)
Reference list for Mode Selector components (Flush Mounted):
| Pos | Qty | Item Description | Part No. |
|---|---|---|---|
| 1 | 1 | FRAME 40x80 Flush | 1008102 |
| 2 | 2 | SCREW ISO 7049 C (RTS) ST2.9x16 FZB 4.8 | 724462 |
| 3 | 1 | Sticker 40x80 5 pos symbol overlay | 1008132 |
| 4 | 1 | Pin flush mounted MS | 1008773 |
| 5 | 1 | PCB Assembly Mode Selector Basic with LED | 1008140 |
| 6 | 1 | Software MS BwL | 1007926 |
| 7 | 1 | WIRING HARNESS MS BASIC RJ45 CABLE | 1008972 |
