An Expert Guide to the IXIO-DT1: 5 Proven Checks for Optimal 2025 Performance

Abstract

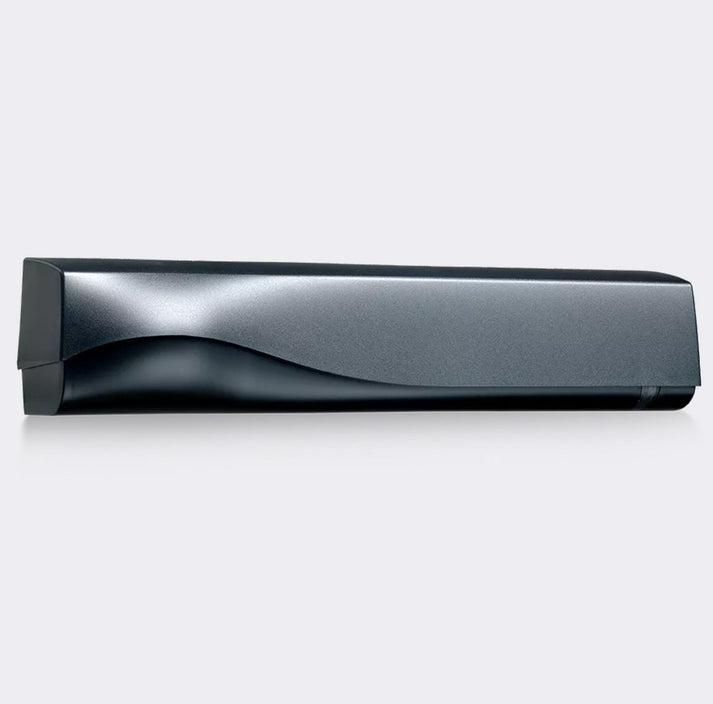

The BEA IXIO-DT1 is a dual-technology sensor that represents a significant component in the modern automatic sliding door system, integrating microwave radar for motion activation and active infrared for presence detection. This document examines the multifaceted nature of the IXIO-DT1, articulating its operational principles and the critical importance of precise configuration for ensuring safety, efficiency, and reliability. It explores the sensor's role within a larger ecosystem of automatic door parts, including controllers and motors, contextualizing its function as pivotal for user safety and building accessibility. A thorough analysis of the sensor’s installation, radar field adjustment, infrared curtain configuration, advanced parameter tuning, and long-term maintenance protocols is presented. The objective is to provide a comprehensive framework for technicians and facility managers, particularly in European and Middle Eastern markets, to optimize the performance of the IXIO-DT1 in compliance with prevailing safety standards like EN 16005, thereby enhancing the human experience of automated entryways in the year 2025.

Key Takeaways

• Properly assess the installation environment to prevent environmental interference with the sensor.
• Master radar field adjustments to balance responsiveness with energy efficiency.
• Configure infrared safety curtains meticulously to protect users within the threshold area.
• Use advanced settings to fine-tune the IXIO-DT1 for specific site requirements.
• Implement a regular maintenance schedule to ensure long-term reliability and safety.
• Integrate the sensor correctly with the door controller for seamless system operation.
• Verify all settings against EN 16005 standards for guaranteed compliance and user safety.

Table of Contents

• Foundational Installation and Environmental Assessment: The First Check
• Mastering the Radar Field for Activation: The Second Check
• Configuring the Infrared Curtain for Unwavering Safety: The Third Check
• Advanced Parameter Tuning and Logic Integration: The Fourth Check
• Long-Term Performance Monitoring and Proactive Maintenance: The Fifth Check
• Frequently Asked Questions (FAQ)
• Conclusion

Foundational Installation and Environmental Assessment: The First Check

The journey toward a perfectly functioning automatic door begins not with the flick of a switch, but with a thoughtful and meticulous installation process. For the BEA IXIO-DT1 sensor, this initial phase is arguably the most consequential. A flaw in its physical placement or an oversight in assessing the surrounding environment can cascade into a series of performance issues that are often misdiagnosed as faults within the unit itself. To treat installation as a mere mechanical task is to misunderstand its foundational role in the sensor's long-term efficacy and, by extension, the safety and comfort of every individual who will pass through the door. We must approach this first check with the precision of a cartographer, mapping out the physical and energetic landscape in which the IXIO-DT1 will operate.

The core of this process lies in understanding the sensor not as an isolated object but as a perceptive organ of the building itself. Its purpose is to see and to feel, and its ability to do so accurately depends entirely on where we place it and how we shield it from confusing sensory input. This requires a dual focus: one on the physical hardware and its precise geometric relationship to the door, and another on the less tangible, yet equally potent, environmental factors that can influence its radar and infrared technologies.

The Geometry of Safety: Mounting Height, Angle, and Position

Before a single wire is connected, we must consider the physical placement of the IXIO-DT1. The manufacturer’s guidelines provide a starting point, but true mastery lies in adapting these rules to the unique architecture of each entryway. Think of this as a dialogue between the sensor’s ideal operational parameters and the reality of the building.

The mounting height is the first critical decision. The IXIO-DT1 is typically designed for a mounting height ranging from 2 meters to 3.5 meters. However, simply choosing a height within this range is insufficient. The chosen height directly influences the shape and depth of both the radar activation field and the infrared safety curtain. A lower mounting height will naturally create a shorter, wider detection area, while a higher placement will project the fields further out, making them narrower.

Imagine for a moment a hospital entrance. The traffic here is varied: fast-moving staff, slow-moving patients, individuals in wheelchairs, and porters pushing beds. A sensor mounted too low might fail to detect a person until they are dangerously close to the closing doors. Conversely, a sensor mounted too high at a small boutique might trigger the door for pedestrians merely walking past the shopfront, leading to unnecessary energy loss and wear on the door’s motor and carriage assemblies. The optimal height is therefore a calculated compromise, balancing early detection with the avoidance of false triggers.

The angle of the sensor is the next piece of this geometric puzzle. The IXIO-DT1 allows for both a vertical tilt (mechanical angle) and a lateral swivel. The vertical angle, adjustable from 0° to 90°, is fundamental. It directs the radar field’s focus. An angle set too shallow (closer to 0°) might cause the radar to look straight out, parallel to the floor, potentially picking up distant traffic that has no intention of entering. An angle set too steep (closer to 90°) might point the radar almost directly at the floor just in front of the door, creating a blind spot for approaching individuals until they are practically at the threshold. The sweet spot, often between 15° and 30°, allows the sensor to see an approaching person’s upper body, providing a reliable trigger while ignoring irrelevant ground-level motion.

Lateral positioning—centering the sensor over the doorway—seems obvious, but its importance cannot be overstated. An off-center IXIO-DT1 will create a lopsided detection field. One side of the approach will be over-sensitive, while the other will have a significant blind spot. This asymmetry is not just an inconvenience; it is a safety hazard. It violates the principle of predictable operation, which is the bedrock of public trust in automated systems.

Wiring and Power: The Lifeblood of the Sensor

With the physical placement determined, the focus shifts to the electrical connections. The IXIO-DT1 is a low-voltage device, but the quality of its power supply and signal wiring is paramount. An unstable power source can lead to erratic behavior, including spontaneous reboots or a "chattering" relay, where the sensor rapidly cycles its output. This is not a failure of the IXIO-DT1 itself, but of its support system.

It is essential to use the correct gauge of wire, especially over longer runs from the door controller. Voltage drop is a real and often overlooked saboteur. A 24V supply at the controller might diminish to an insufficient level by the time it reaches the sensor, starving it of the consistent power it needs for its complex internal processing. The connection to the door controller’s safety inputs and activation trigger must be secure. A loose connection is an intermittent fault waiting to happen—the kind that frustrates technicians and compromises safety.

Furthermore, we must consider the path of the wiring. Running sensor cables parallel to high-voltage lines or mains power can induce electrical noise. This noise can interfere with the sensitive signals returning to the door controller, potentially causing the door to behave unpredictably. Shielded cabling is a wise investment, not a luxury, in environments with high potential for electromagnetic interference (EMI). The integrity of these connections ensures that the clear decisions made by the IXIO-DT1 are transmitted with equal clarity to the components that enact them, such as the powerful and precise Dunkermotoren motors that drive the door panels.

Environmental Reconnaissance: Seeing the Unseen

The final part of this foundational check involves stepping back and observing the environment through the "eyes" of the sensor. The IXIO-DT1 is a marvel of technology, but it is not sentient. It interprets the world through microwave and infrared radiation, and certain environmental conditions can create illusions or blind spots.

For the microwave radar, reflective surfaces are a primary concern. A large metal sign, a glass partition, or even a shiny, polished floor can bounce the radar beams in unexpected ways, creating a "ghost" signal that triggers the door. Imagine a lobby with a highly reflective marble floor; the radar might "see" the reflection of a person walking and trigger the door, even if the person is far outside the intended detection zone. Sometimes, the source of interference is not static. A revolving door nearby, an escalator, or even automatic lighting systems can emit radio frequency (RF) or infrared noise that can confuse a poorly configured sensor.

Vibrations are another subtle but potent source of trouble. A sensor mounted on a flimsy header or a wall that vibrates when a nearby heavy door closes can cause the IXIO-DT1 to misinterpret this motion as an approaching person. The sensor’s internal stabilization algorithms are sophisticated, but they cannot compensate for excessive structural vibration. The solution is mechanical: ensuring the mounting surface is solid and stable.

For the active infrared presence-sensing function, the challenges are different. The color and texture of the floor surface can affect the amount of infrared energy reflected back to the sensor. A dark, matte-black carpet absorbs significantly more infrared light than a light-colored, smooth tile floor. The IXIO-DT1 is designed to account for this with its automatic calibration sequence upon startup, but extreme cases can still pose a challenge. A sudden change in flooring, like a black welcome mat placed directly under the sensor, can create a localized "hole" in the safety detection field if the sensor is not allowed to recalibrate. Direct sunlight can also be a source of interference for the infrared components, although the IXIO-DT1 incorporates advanced filtering to mitigate this. However, in extreme cases, such as a low sun angle shining directly into the sensor's optics, performance can be affected.

Completing this first check is not about following a checklist. It is about cultivating an empathetic understanding of the technology and its interaction with the world. By carefully considering the geometry of placement, the integrity of the electrical connections, and the subtle challenges of the environment, we lay a robust foundation. Upon this foundation, the more nuanced adjustments of the radar and infrared fields can be made with confidence, knowing that the basic conditions for success have been firmly established.

Mastering the Radar Field for Activation: The Second Check

Once the IXIO-DT1 is securely mounted and powered in a suitable environment, our attention must turn to its primary function of activation. This is the domain of the microwave radar, the sensor's long-range "vision." The goal of this second check is to sculpt the radar's detection field with intention, creating a zone that is perfectly attuned to the flow of traffic. We want the door to open reliably for those who intend to pass through it, while remaining impassively closed to those who do not. This is a delicate balance between responsiveness and efficiency, a dance between invitation and conservation.

To achieve this, we must move beyond a superficial understanding of "sensitivity." We need to think in three dimensions, considering the width, depth, and responsiveness of the radar field. The BEA universal remote control is our tool, but our guide is a deep appreciation for how microwave energy propagates and interacts with moving objects. Each adjustment we make is a command that shapes an invisible field, and the consequences of these commands are felt in the door's behavior and the building's energy consumption.

Defining the Field's Boundaries: Width and Depth

The most fundamental adjustments to the radar field are its dimensions. The IXIO-DT1 offers independent control over the field's width and depth, a crucial feature for tailoring the sensor to specific locations.

Let's first consider the width. A wide radar field might seem desirable, ensuring that no one approaching from an angle is missed. However, in a narrow corridor or an entrance flanked by displays or seating, a wide field is a recipe for false activations. It will cause the door to open for people who are merely passing by, not approaching the entrance. This is not only wasteful in terms of energy but also creates a "boy who cried wolf" scenario, where the constant motion of the doors becomes a background nuisance rather than a helpful function. Using the remote control, we can narrow the field, focusing the radar's attention on the direct path to the door. For a standard 2-meter wide doorway, setting the radar width to a corresponding value ensures that the detection zone maps precisely to the entryway.

Now, let's turn to depth. The depth setting determines how far out from the door the sensor will "look" for motion. In a spacious airport terminal, a deep field is necessary to detect fast-moving travelers with luggage carts from a distance, giving the large, heavy doors ample time to open smoothly. The powerful Dunkermotoren motors used in such installations need a moment to accelerate the door panels, and early detection from the IXIO-DT1 provides this critical lead time. However, if we were to use that same deep setting in a small café where the door opens directly onto a busy sidewalk, the result would be chaos. The door would be in a constant state of activation, triggered by every pedestrian. Here, we must dial back the depth, creating a compact detection zone that only extends a meter or two from the threshold. This ensures the door opens for patrons, not for the city at large.

The process of setting these boundaries is empirical. It involves making an adjustment, then observing the result. Walk toward the door from various angles. Walk past the door at different distances. Does the door open when it should? Does it remain closed when it should? This iterative process of adjustment and testing is the only way to truly optimize the field.

Fine-Tuning Responsiveness: Sensitivity and Direction Sensing

With the physical shape of the field defined, we can now refine its responsiveness. This is controlled primarily by the sensitivity setting. It’s tempting to think of sensitivity as a simple volume knob, where higher is always better. This is a profound misunderstanding. Sensitivity determines the minimum amount of movement required to trigger the sensor within the defined field.

Setting the sensitivity too high makes the IXIO-DT1 "jumpy." It might be triggered by rain, falling leaves, or even the subtle vibration of a window display. The radar is performing its job correctly—it is detecting motion—but we have made it too perceptive for its own good. We need to dial it back, instructing it to ignore these minor disturbances and focus only on the significant motion of a person. A good practice is to start at a medium sensitivity level (e.g., 5 out of 9) and adjust up or down based on real-world testing. If the door fails to open for a person walking at a normal pace, increase the sensitivity. If it opens for no apparent reason, decrease it.

A more advanced feature of the IXIO-DT1 is its direction sensing capability. In its standard bidirectional mode, the sensor triggers the door for any motion detected, whether it's approaching or moving away. This is suitable for most applications. However, in certain scenarios, we may only want the door to open for approaching traffic. This is particularly useful for exit-only doors or in situations where we want to prevent the door from reopening for someone who has just passed through and is walking away.

By setting the radar to "unidirectional" or "approach-only" mode, we add a layer of intelligence to the activation. The sensor's internal processor analyzes the Doppler shift of the reflected microwave signals to determine the direction of motion. It will then only send an activation signal to the door controller when it detects an object moving toward the door. This single setting can dramatically reduce unnecessary door cycles, saving energy and reducing wear on mechanical components like belts and carriage assemblies. It’s a perfect example of how a nuanced configuration choice can have significant practical benefits. The high-performance BEA IXIO-DT1 offers this granular control, allowing for a truly optimized installation.

Immunity Settings: The Shield Against Interference

The final step in mastering the radar field is to engage the IXIO-DT1's immunity settings. These are digital filters designed to help the sensor distinguish between legitimate traffic and various forms of environmental interference. The sensor has specific settings to increase its immunity to things like fluorescent light flicker, vibration, and RF interference.

If you have completed the initial environmental assessment and still experience intermittent false activations, these immunity settings are your next line of defense. For example, if a facility uses older fluorescent lighting, the ballasts can sometimes emit electrical noise that affects the sensor's electronics. Engaging the "fluorescent light" immunity filter can help the sensor's processor ignore this specific type of interference. Similarly, if the sensor is mounted on a surface with unavoidable minor vibrations, the "vibration" immunity setting can prevent these from being misinterpreted as motion.

Using these settings requires a diagnostic mindset. You must first identify the likely source of the interference and then apply the corresponding filter. Applying all filters indiscriminately is not the answer, as it can sometimes reduce the sensor's overall responsiveness. This is a targeted solution for a specific problem. By methodically defining the field's boundaries, fine-tuning its sensitivity, leveraging direction sensing, and applying immunity filters where necessary, we transform the radar from a simple motion detector into a discerning gatekeeper. This careful sculpting ensures the automatic door is a seamless and intelligent part of the building's ecosystem.

Configuring the Infrared Curtain for Unwavering Safety: The Third Check

If the radar is the sensor's "vision," the active infrared (IR) system is its sense of "touch." While the radar's job is to open the door, the IR system's solemn duty is to ensure it does not close on a person or an object. This third check is the most critical from a human safety perspective. An error in the radar configuration might lead to inconvenience or wasted energy; an error in the infrared configuration can lead to injury. Therefore, we must approach the setup of the IXIO-DT1's infrared curtains with the utmost gravity and diligence, guided by the principles enshrined in safety standards such as EN 16005.

The IXIO-DT1 utilizes a multi-row active infrared curtain. It doesn't just see a single point; it projects a dense grid of detection points into the threshold area, creating a true safety zone. Our task is to configure this zone so that it completely covers the area where a person could be at risk from the moving door panels. This involves adjusting the curtain's width and depth, testing its responsiveness, and understanding its interaction with the door's overall safety logic.

The Sacred Space: Defining the Safety Zone

The primary goal is to create a safety zone that is impossible to stand within without being detected. The IXIO-DT1 achieves this with two distinct rows of infrared spots, which can be configured to create a comprehensive safety curtain. The configuration process involves setting the lateral width and the forward depth of this curtain.

The width adjustment is paramount. The infrared curtain must be wider than the door's clear opening. Why? Imagine a person pausing at the very edge of the doorway, perhaps to let someone else pass. If the IR curtain is only as wide as the opening, this person could be standing just outside the detection zone but still in the path of the closing door panel. To prevent this, the curtain must be set to extend beyond the door frame on both sides. EN 16005 provides specific guidance on this, but a good rule of thumb is to ensure the curtain is at least 150mm wider than the opening on each side. The IXIO-DT1's settings allow for precise angular adjustment of the IR rows to achieve this required width.

Next, we must consider the depth of the curtain. The IXIO-DT1 allows us to control how many "rows" of detection are active and how far they are angled into the threshold. The goal is to create a safety presence field that covers the entire area where a door panel travels, plus a small buffer. This ensures that if a person stops anywhere in the path of the door—whether in the middle of the threshold or near the fully open or fully closed position—the sensor maintains a constant detection and holds the door open.

Think of it as painting a safety net on the floor with invisible light. We must ensure there are no holes in this net. After making the initial adjustments with the remote control, the most reliable way to test this is with a standardized test object, often a cylinder of a specific size (e.g., 700mm high, 300mm wide, and 200mm deep as per EN 16005). By placing this test object at various points within the threshold—the center, the edges, near the jambs—we can physically verify that the IXIO-DT1's red indicator LED lights up, confirming detection. This is not a step to be rushed or estimated. It is a physical, empirical verification of the safety system's integrity.

Presence Detection vs. Safety: A Crucial Distinction

It is vital to understand the difference between presence detection and the primary safety function. The IXIO-DT1’s infrared system provides what is known as "presence detection." This means it can hold the door open for a person who is stationary within its field. This is the core of its function. The timer setting on the door controller dictates how long the door stays open after a person has been detected by the activation radar and has then cleared the infrared safety curtain.

The IXIO-DT1's IR curtain acts as a safety override to this timer. As long as the IR curtain detects a presence, it will continue to send a "hold open" signal to the door controller, regardless of what the timer is doing. This is why the reliability of the IR detection is so absolute. It is the final word in the door's operational logic.

The IXIO-DT1 also offers different IR immunity settings. These are crucial for ensuring the sensor is not deceived by environmental factors. For example, a floor surface that changes from a light tile to a dark mat can create a challenge for a less sophisticated sensor. The IXIO-DT1's processor can be set to a higher immunity level to better distinguish a person from these background variations. Similarly, in environments with a lot of infrared noise (like direct sunlight or heat lamps), increasing the immunity can prevent these sources from blinding the sensor or causing false presence signals. As with the radar, these settings should be used judiciously to solve specific, diagnosed problems.

The Background and the Subject: Calibration and Learning

Every time the IXIO-DT1 powers on, it performs a critical self-calibration sequence. During this brief period, it scans the area beneath it and memorizes the background—the floor, the door track, any permanent fixtures. This memorized image becomes its baseline for what is "normal" and "empty." Any significant deviation from this baseline is then interpreted as a presence.

This is why it is absolutely essential that the threshold area is clear during the sensor's startup or recalibration process. If a toolbox, a floor mat, or even a shopping cart is left under the sensor during this time, the IXIO-DT1 may learn it as part of the permanent background. It will then become "blind" to that object and, more dangerously, to a person or child of a similar size who might later stop in that exact spot.

Some advanced configurations of the IXIO-DT1 allow for a "long-term background analysis" mode. In this mode, the sensor can slowly and intelligently update its understanding of the background. This is useful for compensating for gradual changes, like the accumulation of dirt or slow changes in lighting conditions. However, it is not a substitute for ensuring a clear threshold during initial setup.

The responsibility of the technician is to ensure this calibration happens correctly and to educate the end-user or facility manager about its importance. A simple sign or a brief conversation can prevent a dangerous situation from being inadvertently created days or weeks after the installation is complete. By meticulously defining the safety zone, verifying it with physical tests, and ensuring a proper understanding of the sensor's calibration process, we honor our fundamental commitment to public safety. This transforms the automatic door from a mere convenience into a trusted and secure portal.

Advanced Parameter Tuning and Logic Integration: The Fourth Check

With the fundamental activation and safety fields established, we can now ascend to a higher level of optimization. This fourth check involves delving into the advanced parameters of the IXIO-DT1 and considering its role not as a standalone device, but as an integral part of a sophisticated system. This is where we fine-tune the sensor's behavior to match the unique cadence of its environment and ensure it communicates flawlessly with the door controller. It is the difference between a door that simply works and a door that works intelligently.

This stage requires a shift in thinking from broad strokes to fine details. We will be using the BEA remote control to access the deeper menus of the IXIO-DT1, adjusting settings that govern its internal logic, output behavior, and resilience. This is also where we consider the holistic system, ensuring the signals from our perfectly tuned sensor are correctly interpreted and acted upon by the door's 'brain'—the controller—and its 'muscle'—the motor.

Tailoring the Output: Relay Configurations and Logic

The IXIO-DT1 is equipped with two relays, which are essentially electronic switches that it uses to communicate with the door controller. By default, one relay is typically assigned to the radar (activation) and the other to the infrared (safety/presence). However, the genius of the IXIO-DT1 lies in the ability to customize what each relay does.

For example, the relays can be configured as "normally open" (N.O.) or "normally closed" (N.C.). This choice is dictated entirely by the requirements of the door controller. Connecting an N.O. sensor output to a controller expecting an N.C. input (or vice versa) will result in the door logic being inverted—it might stay permanently open or fail to activate at all. Verifying the controller's requirements and setting the IXIO-DT1's relays to match is a fundamental step in system integration.

Beyond this, we can alter the very logic of the outputs. For instance, we can program the sensor so that the "safety" relay is active when either the radar or the infrared system detects something. This can be useful in specific applications where the activation signal itself needs to be treated as a safety signal.

A particularly powerful feature is the ability to link the two technologies. We can configure the IXIO-DT1 so that the infrared presence detection curtains are only active after the radar has first triggered an activation. In a low-traffic area, this can extend the life of the infrared emitters, as they are not constantly running. This "smart" mode demonstrates how the sensor can manage its own resources for greater longevity. This level of customization, which is detailed in the comprehensive IXIO-DT1 specifications, allows for an unparalleled degree of application-specific tuning.

The Art of Unlocking: Integration with Locking Mechanisms

In many installations, particularly those concerning external doors, security is as important as accessibility. This is where devices like electromagnetic locks, or maglocks, come into play. The IXIO-DT1 must be integrated into the sequence of operations that includes unlocking the door.

The logic is typically as follows:

1. The IXIO-DT1's radar detects an approaching person and sends an activation signal to the door controller.
2. The door controller first sends a signal to release the maglock.
3. After a brief, programmed delay (to allow the lock to fully disengage), the controller initiates the motor to open the door.

The timing of this sequence is critical. If the controller tries to drive the door while the maglock is still engaged, it will put immense strain on the motor and the door's mechanical components, such as the carriage assemblies. The responsiveness of the IXIO-DT1's detection is a key part of this. By ensuring the radar field is deep enough, we give the system enough advance warning to perform the unlock-then-open sequence smoothly, without forcing the user to pause and wait at the threshold. The entire system of sensor, controller, maglock, and motor must work in perfect concert.

Advanced Detection Algorithms: Direction and Cross-Traffic Rejection

We touched upon direction sensing in the context of the radar, but its advanced application deserves further consideration. By setting the IXIO-DT1 to unidirectional mode, we are telling it to ignore departing traffic. This is more than just an energy-saving measure; it's about creating a more intelligent and less intrusive user experience. A door that doesn't needlessly reopen for someone walking away feels more refined and predictable.

The IXIO-DT1 also features sophisticated algorithms for cross-traffic rejection. Imagine a sensor at the entrance of a store in a shopping mall corridor. People are constantly walking past, parallel to the door. Standard motion detection would trigger the door for every passerby. The cross-traffic rejection feature allows the sensor's processor to analyze the trajectory of a moving object. It can distinguish between an object moving across its field of view and one moving into its field of view.

By enabling this feature, we can instruct the IXIO-DT1 to ignore the cross-traffic, no matter how close it is. It will only generate an activation signal when it detects a person making a clear turn and approaching the door. This is a level of discernment that transforms the sensor from a simple trigger into a true decision-making device. Fine-tuning this setting involves observing the real flow of traffic and adjusting the filter's intensity until the perfect balance is struck—ignoring all passersby while never failing to detect a genuine customer.

System Synergy: The Sensor and the Controller in Dialogue

It is a common mistake to tune the IXIO-DT1 in isolation, without considering the settings of the door controller it is connected to. The two devices are in a constant dialogue, and their parameters must be harmonized.

Consider the "hold-open time" setting. This is typically configured in the door controller, not the sensor. It determines how long the door remains open after all sensor fields are clear. If the IXIO-DT1's radar field is very deep, providing early activation, a long hold-open time on the controller may be redundant and wasteful. Conversely, if the radar field is tight, a slightly longer hold-open time might be necessary to ensure people can pass through comfortably without the door closing too quickly behind them.

Similarly, the door's opening and closing speeds, which are managed by the controller, have a direct relationship with the sensor's configuration. For a door with high-speed operation, the radar detection field must be sufficiently deep to provide the necessary reaction time. The infrared safety curtain's response time must be fast enough to halt or reverse the fast-moving door instantly if an obstruction is detected.

This fourth check, therefore, is about systems thinking. It is about understanding that the IXIO-DT1, for all its sophistication, is one part of a larger whole. By tuning its advanced parameters and ensuring its logical integration with the controller, locks, and motor, we elevate the performance of the entire automatic door system from merely functional to truly exceptional.

Long-Term Performance Monitoring and Proactive Maintenance: The Fifth Check

The completion of the first four checks—installation, radar configuration, IR safety setup, and advanced tuning—marks the beginning, not the end, of our responsibility. An automatic door system is not a static object; it is a dynamic machine operating in a constantly changing world. This final, fifth check is about establishing a rhythm of ongoing vigilance and care. It is a commitment to the long-term health of the IXIO-DT1 and the entire door system, ensuring that the safety and efficiency we have so carefully established do not degrade over time.

This check moves us from the role of installer to that of custodian. It involves proactive, scheduled maintenance rather than reactive repairs. It is founded on the understanding that small, predictable efforts over time prevent large, unexpected failures. For a device as critical as a safety sensor, this proactive stance is not just good practice; it is an ethical imperative.

The Routine Physical: Scheduled Inspections

Just as a person benefits from regular health check-ups, the IXIO-DT1 requires periodic inspection. The frequency of these inspections should be determined by the intensity of the door's usage and the nature of its environment. A high-traffic entrance to a public transit station may require monthly checks, while a low-use office door might be fine with quarterly or biannual inspections.

What does this "physical" entail? First, a visual inspection is crucial. We must check that the sensor is still securely mounted. Vibrations over thousands of door cycles can sometimes loosen mounting screws. A wobbly sensor is an unreliable sensor. We should also check for any physical damage to the sensor's housing. A crack or break in the casing can allow dust and moisture to ingress, which is a death sentence for sensitive electronics.

Second, and perhaps most importantly, the lens of the sensor must be cleaned. The front face of the IXIO-DT1 is where the infrared emitters and receivers look out at the world. Over time, this surface accumulates a film of dust, grime, or pollen. This film acts like a dirty pair of glasses, dimming the sensor's "vision." It can reduce the effectiveness of the infrared safety curtain, potentially creating a blind spot. Cleaning should be done with a soft, lint-free cloth and a gentle, non-abrasive cleaning solution (like isopropyl alcohol). Harsh chemical cleaners or abrasive materials must be avoided, as they can permanently damage the lens.

Re-validating the Safety System: The Cyclical Test

The passage of time and the cycles of changing seasons can subtly alter the operational environment. Therefore, it is not enough to rely on the initial safety tests performed during installation. The safety system must be periodically re-validated.

This means repeating the critical test from the third check: using a standardized test object to verify the integrity of the infrared safety curtain. We must once again place the test object at various points within the threshold—center and edges—to confirm that the IXIO-DT1 detects it without fail and holds the door open. This test should be performed after every cleaning and as part of every scheduled maintenance visit.

It is also wise to re-test the boundaries of the radar activation field. Has anything in the environment changed? Has a new reflective sign been installed? Has a large potted plant been moved into the sensor's line of sight? A quick walk-test, approaching and passing the door from multiple angles, can confirm that the carefully sculpted activation field remains effective and is not causing new false triggers. This re-validation is our assurance that the system's performance has not drifted from its optimized state.

Listening for Whispers of Trouble: Recognizing Early Warnings

Component failure is an inevitable part of any mechanical system's lifecycle. The key is to detect the signs of impending failure before it becomes critical. A well-maintained system rarely fails catastrophically; it usually provides subtle warnings first.

For the IXIO-DT1, this might manifest as intermittent or "soft" failures. Perhaps the door occasionally hesitates to open, or it begins to trigger for no discernible reason on humid days. These are not glitches to be ignored; they are symptoms that require investigation. They could indicate that an electronic component within the sensor is beginning to drift out of specification or that a seal is starting to fail.

The behavior of the door itself can also be an indicator. If the door starts to move more slowly or makes a new grinding noise, it might not be the sensor's fault, but it points to a problem in the broader system (like a wearing motor or failing carriage wheels) that could eventually impact the safety logic. For instance, if the door is unable to stop or reverse quickly due to a mechanical issue, the sensor's fast reaction time becomes meaningless. A holistic view is essential.

Keeping a maintenance log is a simple but powerful tool. Recording the date of each inspection, the cleaning performed, the results of the safety tests, and any unusual observations creates a health record for the door system. This record can be invaluable for diagnosing complex problems and for demonstrating a history of due diligence, which is a cornerstone of professional service and legal compliance in regions governed by standards like EN 16005.

This fifth and final check closes the loop. It institutionalizes the process of care, transforming a one-time installation into a long-term relationship of trust between the technology, the technician, and the people who use the door every day. It is the ongoing practice of this vigilance that ensures an automatic door remains a symbol of welcome and safety for the entire duration of its service life.

Frequently Asked Questions (FAQ)

What is the primary difference between the radar and infrared functions on the IXIO-DT1?

The radar and infrared systems serve two distinct but complementary purposes. The microwave radar is used for activation; it "looks" for motion approaching the door to tell it when to open. The active infrared system is for safety; it creates a dense curtain of detection points in the threshold to ensure the door does not close on a person or object that is stationary in the doorway.

Why does my IXIO-DT1 sometimes cause the door to open when it rains?

This is a common issue related to the radar's sensitivity. Heavy rain can be detected as motion by a highly sensitive radar. To resolve this, you can try slightly decreasing the radar's sensitivity setting using the universal remote control. Additionally, ensuring the sensor has the correct downward mechanical angle helps it focus on approaching people rather than on weather phenomena occurring further out.

How often should I clean the lens of my IXIO-DT1 sensor?

The cleaning frequency depends heavily on the environment. In a clean, indoor office environment, cleaning every six months may be sufficient. However, for an exterior door exposed to dust, pollen, and pollution, or in an industrial setting, monthly cleaning is recommended. A dirty lens can significantly impair the performance of the infrared safety curtain.

Can I install the IXIO-DT1 myself, or do I need a professional?

While the physical mounting may seem straightforward, the configuration and safety testing of an IXIO-DT1 should be performed by a qualified professional technician. Proper setup requires a deep understanding of the sensor's parameters, the door controller's logic, and the specific requirements of safety standards like EN 16005. Incorrect configuration can result in an unsafe or inefficient door system.

The red light on my sensor is blinking. What does this indicate?

A blinking LED on the IXIO-DT1 is a diagnostic code. The specific pattern of blinks can indicate a variety of states, such as a startup sequence, a fault condition, or the detection of interference. For example, a constant, rapid blinking might indicate an internal fault, while a slow, periodic blink could be normal operation in certain modes. It is best to consult the product's technical manual or a professional technician to accurately interpret the specific code.

What is EN 16005 and why is it important for the IXIO-DT1?

EN 16005 is a European safety standard for powered pedestrian doors. It outlines the requirements for designing, installing, and maintaining automatic doors to ensure user safety. The IXIO-DT1 is designed to help door systems meet these standards. Compliance involves configuring the sensor's safety fields, response times, and detection capabilities according to the specific mandates of the standard, which is a critical responsibility for installers in the European market.

My door is opening for people just walking past, not entering. How can I fix this?

This issue, known as cross-traffic activation, can be resolved by adjusting the radar settings. First, try narrowing the radar field's width so it is more focused on the direct approach to the door. If that is not enough, you can enable the "cross-traffic rejection" feature in the advanced settings. This allows the sensor to intelligently ignore motion that is parallel to the door and only trigger for motion that is directed toward the entrance.

Conclusion

The BEA IXIO-DT1, when examined with care, reveals itself to be more than a mere component; it is a nexus of technology, safety, and human experience. Our exploration through the five proven checks has demonstrated that the path to optimal performance is paved not with shortcuts, but with methodical diligence and a deep, empathetic understanding of the sensor's function within its environment. We began with the foundational act of installation, recognizing that the sensor's physical placement and electrical integrity form the bedrock of its reliability. We then sculpted the invisible fields of radar and infrared light, learning to balance the invitation of activation with the unwavering assurance of safety. Ascending to the advanced parameters, we saw how the IXIO-DT1 can be taught to speak the precise language of its controller, integrating into a symphony of coordinated parts that includes motors, locks, and logic boards. Finally, we embraced the ethic of long-term stewardship, establishing a rhythm of maintenance that ensures the system's integrity endures. To master the IXIO-DT1 is to commit to a standard of excellence that places human well-being at its very center, ensuring that every passage through an automated doorway in 2025 is an act of seamless, trustworthy, and safe convenience.
