Expert Guide: 5 Common Dorma Controller Faults and Actionable Fixes for 2025

Abstract

This article offers a comprehensive examination of the Dorma controller, with a specific focus on the ES200 model, which serves as a central component in modern automatic sliding door systems. It presents an analytical framework for diagnosing and resolving five prevalent categories of faults that professionals may encounter in 2025. The analysis covers issues ranging from power supply and connectivity failures to erratic motor behavior, sensor malfunctions, the interpretation of error codes, and failures within the electro-mechanical locking systems. The discussion is grounded in the technical specifications of the controller's modular design, including its basic and function modules. By providing systematic, step-by-step troubleshooting methodologies, this guide aims to equip technicians and installers in the European and Middle Eastern markets with the practical knowledge required for effective maintenance and repair. The objective is to foster a deeper understanding of the controller's operational logic, thereby enhancing diagnostic accuracy and ensuring the long-term reliability and safety of automated entrances.

Key Takeaways

• Systematically diagnose power issues by checking mains, fuses, and connections first.
• Erratic movement often points to motor, encoder, or belt tension problems.
• Clean and align sensors regularly to prevent common opening and closing failures.
• Use the integrated display to read error codes for a precise Dorma controller diagnosis.
• Test the electro-mechanical lock signal and mechanism for security system faults.
• Understand the modular design of the ES200 for easier component replacement.
• Adhere to EN 16005 safety standards during all installation and repair work.

Table of Contents

• The Cerebral Core: Understanding the Dorma Controller's Function
• Fault 1: The Silent Door – Diagnosing Power and Connectivity Failures
• Fault 2: The Stuttering Panel – Resolving Erratic and Jerky Door Movement
• Fault 3: Perceptual Errors – Troubleshooting Sensor and Activation Malfunctions
• Fault 4: The System's Cry for Help – Interpreting Displayed Error Codes
• Fault 5: A Breach in Security – When the Electro-Mechanical Lock Fails
• A Philosophy of Care: Proactive Maintenance for System Longevity
• Frequently Asked Questions (FAQ)
• Conclusion

The Cerebral Core: Understanding the Dorma Controller's Function

To approach the task of diagnosing and repairing an automatic door system, one must first cultivate an appreciation for its central intelligence: the controller. It is a disservice to view this component as a mere circuit board; a more fitting analogy is that of a central nervous system. The Dorma controller, particularly the widely adopted ES200 model, is the locus of decision-making, a microprocessor-driven core that receives sensory input, processes information, and directs the physical actions of the entire apparatus. Without a properly functioning controller, the sophisticated mechanics of the door—the powerful motor, the smooth-running carriages, the robust belt—are nothing more than inert materials.

The brilliance of the ES200's design, and a point of focus for us as manufacturers of compatible systems, lies in its modularity. Think of it not as a monolithic, unchangeable block, but as a system of interconnected, specialized organs. The primary component is the Basic Module (BM), which handles all fundamental operations. As detailed in technical specifications, the BM manages the core function programs: Automatic, Permanent Open, Partial Open, Exit Only, and the Night-Bank security function . It is responsible for interpreting signals from basic activation sensors and controlling the motor's speed and direction. This modular approach, as outlined in industry catalogs, represents a significant leap from older, integrated designs, allowing for targeted repairs and upgrades.

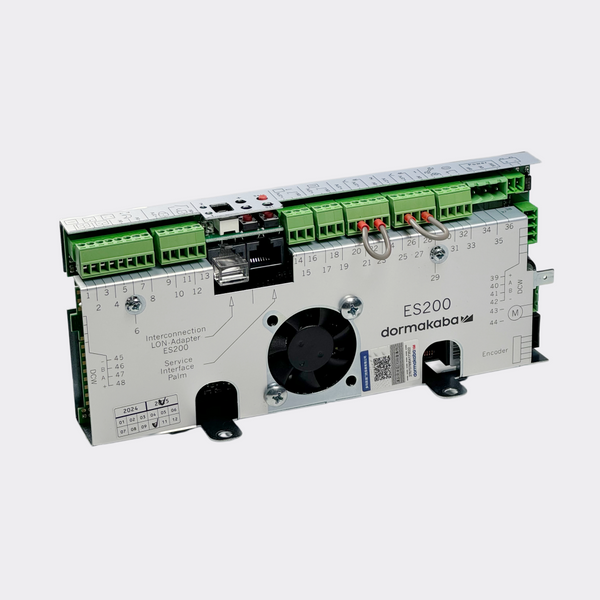

The Basic Module (BM) vs. The Function Module (FM)

The system's intelligence can be expanded through the addition of a Function Module (FM). If the BM is the brainstem, handling autonomic functions, the FM is the cerebrum, responsible for higher-order tasks. This optional module introduces specialized capabilities such as airlock control for environmentally sensitive areas, synchronous operation for double-door systems, and panic-closing functions for high-security applications. Understanding whether a fault lies within the jurisdiction of the BM or an installed FM is a foundational step in any diagnosis. For instance, a failure of the basic 'Automatic' mode likely points to the BM, whereas a malfunction in a complex airlock sequence would logically direct your attention to the FM or its connections.

This separation of duties is not merely an engineering convenience; it embodies a philosophy of efficiency and sustainability. Instead of replacing an entire operator for a single specialized function failure, a technician can simply service or replace the relevant module. This reduces waste, minimizes downtime, and lowers the total cost of ownership over the system's lifespan—a principle we hold in high regard.

The Language of the Controller: Inputs and Outputs

To effectively troubleshoot a Dorma controller, one must learn to speak its language, which is a dialect of electrical signals. The controller is in constant dialogue with its environment through a series of inputs and outputs.

• Inputs: These are the senses of the system. They include signals from activation sensors (like radar or push buttons), safety sensors (like infrared light barriers), the program switch that dictates the desired mode, and feedback from the motor's encoder, which tells the controller the door's exact position and speed.
• Outputs: These are the actions of the system. The most critical outputs are the voltage sent to the motor to initiate movement, the signal to engage or disengage the electro-mechanical lock, and the 24V power supplied to peripheral devices like sensors.

A fault can often be understood as a breakdown in this communication. Is the controller not "hearing" the sensor, or is it "speaking" to the motor incorrectly? This framing transforms the troubleshooter from a mere component-swapper into a system interpreter.

The table below provides a comparative overview of the functions managed by the Basic Module versus the optional Function Module, which can help in localizing a potential issue.

Understanding this architecture is the first, and perhaps most critical, step. When you arrive on-site and face a malfunctioning door, you are not just looking at a piece of hardware; you are observing a system whose central intelligence has encountered a problem. Your task is to patiently and systematically identify the nature of that problem, a process we will explore in the following sections.

Fault 1: The Silent Door – Diagnosing Power and Connectivity Failures

There is perhaps no fault more definitive, and yet potentially more straightforward to resolve, than a complete lack of response from the system. The door is inert. The program switch is unlit. There is an unnerving silence where there should be the quiet hum of readiness. This scenario almost invariably points to a fundamental failure in the power supply chain. The controller, the brain of the operation, is receiving no electrical energy and is therefore offline. The challenge is to trace the path of that energy from its source to the controller and find the point of interruption.

Tracing the Path of Power

Before touching any component, the first step is a logical and safe assessment. The path of electricity follows a clear sequence:

1. Building's Mains Supply (230V in Europe/Middle East)
2. Circuit Breaker/Fused Spur
3. Connection to the Operator's Power Supply Unit
4. The Power Supply Unit (PSU) itself, which transforms 230V AC to the required DC voltage.
5. The connection from the PSU to the Dorma controller's Basic Module (BM).

A failure at any of these points will starve the controller of the energy it needs to function. The diagnostic process should follow this path methodically.

Step-by-Step Diagnostic Protocol

1. Confirm the Mains Supply: This may seem elementary, but it is the most common point of failure. Has the circuit breaker tripped? Has a fuse blown? Use a multimeter to confirm that the terminal supplying the door operator is receiving the correct voltage (230V ±10%). A reading of zero indicates the problem lies within the building's electrical infrastructure, not the door operator itself.

2. Inspect Physical Connections: Visually inspect the wiring at the fused spur and at the input terminals of the operator's main power supply unit. Look for loose wires, signs of arcing (black scorch marks), or corrosion. A loose neutral or live wire can easily cause a complete power outage for the system.

3. Test the Power Supply Unit (PSU): The PSU is the heart of the system, pumping life-giving electricity to the controller. The standard ES200 system uses a universal switching power supply capable of handling input voltages from 90-230V, making it versatile across regions. Its function is to step this down to a stable DC voltage for the controller and a 24V supply for peripherals.

   • Safety First: Disconnect the mains power to the operator.
   • Disconnect the Output: Unplug the low-voltage output connector that leads from the PSU to the controller. This isolates the PSU for testing.
   • Power On and Test: Re-engage the mains power. Carefully use a multimeter set to DC voltage to measure the output pins of the PSU. You should be looking for a stable DC voltage reading as specified in the technical manual. If you read zero volts, or a fluctuating, unstable voltage, the PSU itself has failed and requires replacement.

4. Verify Controller Connectivity: If the PSU is providing the correct output voltage, the final link in the chain is the cable connecting the PSU to the controller's Basic Module. With the power off, perform a continuity test on this cable. A break or short within this small cable is less common but can be a frustrating and overlooked cause of a "dead" system.

The Case of Intermittent Power

A more perplexing issue is intermittent power loss. The system works for a time, then randomly shuts down and perhaps restarts later. This often points to one of two culprits: a thermal issue or a loose connection that is affected by the door's vibration.

• Thermal Overload: The PSU is designed to operate within a specific temperature range, typically from -20°C to +60°C. If the operator is installed in a poorly ventilated housing or in direct, intense sunlight (a common concern in the Middle East), the PSU may overheat and trigger an internal thermal cut-out. Once it cools, it may function again. Check for adequate ventilation around the operator and ensure the cover is not packed with insulation or debris.
• Vibrational Faults: The constant movement of a busy door can cause a marginally secure wire to vibrate loose over time. Carefully re-check every screw terminal and push-fit connector between the mains supply and the controller. The slight movement of the door opening and closing can be just enough to make and break a poor connection, leading to the maddening intermittent fault.

In all power-related diagnostics, a methodical approach is paramount. Rushing to replace the expensive controller before verifying the integrity of the power supply path is an inefficient and costly error. The silent door is speaking; it is telling you that its lifeblood—electricity—has been cut off. Your job is to find where.

Fault 2: The Stuttering Panel – Resolving Erratic and Jerky Door Movement

When a door panel, which should glide with a smooth and almost imperceptible grace, begins to move with a stutter, a jerk, or an audible shudder, it is a clear indication of a conflict within the system's core motor functions. This is not just an aesthetic issue; erratic movement places immense strain on mechanical components like the carriages, the belt, and the door panel mountings, leading to premature wear and potential failure. The source of this conflict typically lies in a breakdown of the conversation between the Dorma controller and the motor, or in the physical components that translate the motor's power into motion.

The heart of the ES200's movement is the robust Dunkermotoren GR 63x55, a brushed DC motor renowned for its reliability and power . The controller's task is to provide this motor with a precise, variable voltage to control its speed and torque, creating smooth acceleration and deceleration. This control is not a one-way command; it is a feedback loop.

The Critical Role of the Encoder

Attached to the motor is a vital component: the encoder. The encoder is the controller's set of eyes, constantly reporting the motor's exact position, speed, and direction of rotation. Imagine trying to park a car with your eyes closed, relying only on how far you've pressed the accelerator. You would lurch, stop short, or crash. This is what the controller experiences without clean, accurate data from the encoder. It sends a command to move, but if the feedback it receives is garbled, delayed, or absent, it will overcorrect, sending frantic new commands that result in jerky, uncontrolled motion.

Therefore, when faced with a stuttering door, our investigation must focus on three primary areas: the mechanical transmission system, the motor itself, and the integrity of the encoder feedback loop.

Diagnostic Steps for Erratic Movement

1. Mechanical Inspection (Power Off): Before diving into the electronics, a thorough mechanical check is essential. Disengage the motor by turning off the power and detaching the drive belt from the door carriages. Now, manually slide the door panels back and forth through their entire range of travel.

   • Is the movement smooth? Or do you feel any binding, grinding, or tight spots?
   • Check the track rail for debris, dirt, or damage. Even a small stone or accumulated grime can cause a carriage wheel to jump.
   • Inspect the carriage wheels (trolleys) themselves. Are they worn, cracked, or seized? A single faulty wheel can introduce significant drag.
   • Check the toothed belt for proper tension. A belt that is too loose will cause a "lash" effect, where the motor starts to turn but the door only moves after the slack is taken up, causing a jerk. A belt that is too tight places excessive strain on the motor and pulleys. The tension should be taut, but not rigid.

2. Motor and Gearbox Assessment: While the belt is disengaged, manually rotate the motor's drive pulley. Does it turn freely, or is there significant resistance or a grinding noise? While rare, internal failure of the motor's gearbox can introduce the kind of uneven resistance that leads to jerky motion. Also, listen to the motor during operation. A healthy Dunkermotoren is virtually silent. Any loud whining, grinding, or clicking sounds point toward an impending motor failure.

3. Encoder and Wiring Integrity: This is the most common electronic cause of erratic movement. The signal from the encoder is a low-voltage digital pulse train, which is susceptible to interference or degradation.

   • Visual Inspection: Carefully examine the thin cable that runs from the encoder on the back of the motor to the Dorma controller. Is it pinched, chafed, or damaged? Is the connector firmly seated at both the encoder and the controller ends? Vibration can cause these small connectors to work loose over time.
   • Electrical Interference: Is the encoder cable routed too close to the main 230V power lines? High-voltage AC can induce "noise" in the low-voltage DC signal of the encoder, corrupting the data sent to the controller. Ensure there is proper separation between power and signal cables.
   • Encoder Failure: The encoder itself can fail. This can be difficult to diagnose without a replacement part. If all mechanical and wiring checks pass, and the door still moves erratically, and especially if the controller is displaying an encoder-related error code (which we will discuss later), the motor/encoder unit is the primary suspect. As these are often integrated units, the entire motor may need to be replaced.

A stuttering door is a system in distress. It is a sign of a fight between the controller's commands and the physical reality it is perceiving. By methodically investigating the mechanical pathway and the vital communication line from the encoder, you can identify the source of the conflict and restore the smooth, reliable motion that defines a professional installation.

Fault 3: Perceptual Errors – Troubleshooting Sensor and Activation Malfunctions

An automatic door's interaction with the world is governed by its senses. It must perceive an approaching person to open and detect an obstruction to prevent closing. When this perception fails, the result is a door that either refuses to open when it should or, more dangerously, attempts to close when it should not. These failures are rarely the fault of the ES200 controller's basic module itself, but rather a problem with the "eyes" and "ears" of the system: the activation and safety sensors. All troubleshooting in this area must be performed with the utmost respect for safety standards like EN 16005, which governs the safety in use of automatic pedestrian doors.

The Two Families of Sensors

It is crucial to distinguish between the two primary types of sensors used in a standard ES200 installation:

1. Activation Sensors: Their job is to trigger the door's opening cycle. The most common type is the microwave or radar sensor, mounted above the door, which detects motion in a defined field. Other activators include push buttons, key switches, or access control readers.
2. Safety Sensors: Their job is to prevent the door from closing on a person or object. The most common type is the infrared (IR) light barrier or "photocell," which consists of a transmitter and a receiver that create an invisible beam across the threshold. If this beam is broken, the controller will immediately stop and reverse the closing door.

A simple logical test can often point you to the correct sensor family. If the door will not open for approaching traffic, the problem is likely with the activation sensor. If the door opens but will not close, or starts to close and then re-opens for no apparent reason, the problem is almost certainly with the safety sensor.

Troubleshooting Activation Sensors (Radar)

When a door fails to open, and you have confirmed the controller is powered and in "Automatic" mode, the activation radar is the prime suspect.

1. Check the LED Indicator: Most radar sensors have a small LED that illuminates when it detects motion. Walk towards the door and observe this LED. If it lights up, the sensor is working and sending a signal. If the door still doesn't open, the problem lies in the wiring between the sensor and the controller, or the controller's input itself. If the LED does not light up, the sensor is not detecting you or is not powered.

2. Clean the Lens: The sensor's face can become obscured by dirt, dust, or even a spider's web. A simple cleaning with a soft cloth can sometimes restore function.

3. Verify Power: The radar is powered by the controller's 24V output. Use a multimeter to confirm that 24V DC is present at the sensor's power terminals. If not, check the wiring back to the controller.

4. Adjust Sensitivity and Field: Radar sensors have adjustments for sensitivity and the size/shape of the detection area. It is possible that the sensitivity has been turned down too low, or the field has been adjusted incorrectly and is not covering the approach path. Consult the sensor's specific manual for adjustment procedures. Sometimes, environmental factors like fluorescent lighting, air conditioning vents, or even vibration can cause false detections, leading installers to reduce sensitivity to a point where it becomes ineffective for genuine traffic.

Troubleshooting Safety Sensors (Infrared Light Barriers)

A door that refuses to close is one of the most common service calls. This is a "fail-safe" behavior; the controller is perceiving an obstruction in the doorway and is correctly preventing a potentially dangerous closure. The task is to find out why it thinks something is there.

The Sunlight Problem: A particular challenge in the bright environments of the Middle East is direct sunlight overwhelming the IR receiver. The receiver is looking for a specific frequency of infrared light from its transmitter, but the intense, broad-spectrum IR from the sun can blind it, making it think the beam is broken. If this is suspected, try temporarily shading the receiver to see if the door then closes normally. Some higher-quality sensors have better filtering to mitigate this, but it remains a common environmental issue.

Perceptual errors are a fascinating area of troubleshooting because they force us to see the world from the system's point of view. The door is not being stubborn; it is acting logically based on the sensory information it is receiving. Our role is to become sensory diagnosticians, cleaning its lenses, checking its connections, and ensuring it perceives the world clearly and accurately.

Fault 4: The System's Cry for Help – Interpreting Displayed Error Codes

In the past, diagnosing an electronic control system was often a "black box" problem, a frustrating exercise in guesswork and component swapping. Modern systems like the Dorma ES200, however, are designed with a remarkable capacity for self-diagnosis. The integrated display and pushbuttons on the Basic Module are not just for setup; they are a window into the controller's mind. When the system detects a deviation from its normal operating parameters, it logs a specific error code, providing the technician with a precise starting point for diagnosis. Learning to access and interpret these codes is the single most powerful skill in an efficient troubleshooter's arsenal.

Accessing the Error Memory

The process of reading the error memory is straightforward and is detailed in the operator's technical manual. Generally, it involves using the pushbuttons on the controller to navigate through a menu system to a "Diagnostics" or "Errors" section. The controller stores a log of the most recent faults, often with additional data about when they occurred. This historical log can be invaluable. For example, if you find multiple "Encoder Fault" errors logged over the past week, it strongly suggests a developing hardware problem rather than a one-time glitch. This feature transforms troubleshooting from a snapshot investigation into a longitudinal study of the system's health.

Deconstructing Common Error Codes

While the specific list of error codes can vary slightly with firmware revisions, they follow a logical pattern. Manufacturers like us, who engineer fully compatible components, study these codes intently to ensure our own parts integrate flawlessly and report issues correctly. Below is a table outlining some of the most common error codes you might encounter on an ES200 or a compatible system, their likely meanings, and the investigative path they suggest.

This table is not exhaustive, but it illustrates the power of the diagnostic system. An error code like '04' immediately tells you to ignore the motor and focus your attention on the safety sensors. An error code '08' directs you away from the sensors and straight to the motor and its encoder feedback loop. This targeted approach, guided by the controller's own intelligence, can reduce diagnostic time from hours to minutes.

The Nuance of Error Interpretation

It is vital to approach error codes with a degree of critical thought. An error code tells you what the controller thinks is wrong, which is not always the root cause. For example, an "Obstruction Detected" error (Code 05) might be logged repeatedly. While this could mean people are frequently blocking the door, it could also indicate increased friction in the system (e.g., worn carriages) that is making the controller think it is hitting an obstruction because it has to work harder than expected to move the door. The error code is the symptom, not always the disease.

Similarly, a "Motor Encoder Fault" (Code 08) points to the encoder, but the problem could be as simple as a loose connector vibrated free by door movement. The expert technician uses the error code not as a final diagnosis, but as a powerful clue that initiates a specific, targeted investigation. After addressing the suspected cause, it is crucial to clear the error memory and cycle the door several times to ensure the fault does not re-occur. If it does, your initial diagnosis was incorrect, and you must investigate deeper. The controller's error log is a powerful, but not infallible, partner in the diagnostic process.

Fault 5: A Breach in Security – When the Electro-Mechanical Lock Fails

Beyond providing convenience and accessibility, an automatic door in many applications serves a critical security function. In its closed and locked state, it must provide a robust barrier against unauthorized entry. This security is most often provided by an electro-mechanical locking device, an optional but common component integrated into the ES200 system. A failure in this subsystem can manifest in two equally problematic ways: the door fails to lock, leaving a building vulnerable, or it fails to unlock, trapping people or preventing access.

The locking device in an ES200 system is an elegant piece of engineering, often integrated directly into the return pulley assembly. It consists of a solenoid-driven bolt that, when activated, physically engages with the carrier head or carriage, preventing the door panel from being forced open. The Dorma controller orchestrates its operation, typically engaging the lock a few seconds after the door has fully closed and disengaging it just before an opening cycle is initiated.

Diagnosing a Failure to Lock

When you find that a door can be slid open manually even when it should be locked (for example, when the program switch is in the 'Off' or 'Night-Bank' position), you must determine why the locking bolt is not engaging.

1. Listen for the "Click": The solenoid engaging the lock makes a distinct, audible click. Close the door and wait a few seconds. Do you hear it? If you hear the click but the door is not locked, the problem is likely mechanical. If you hear no click, the problem is likely electrical.

2. Electrical Diagnosis (No Click):

   • Verify the Controller's Command: The controller sends a voltage pulse to the lock's solenoid to engage it. With the door closed and in a locked mode, you can use a multimeter (with appropriate care) to test the lock output terminals on the controller. You should see a voltage signal at the moment the lock is supposed to engage. If there is no voltage, the controller's output relay for the lock may have failed. In this case, a replacement Dorma controller might be necessary.
   • Check Wiring Integrity: If the controller is sending the signal, the next step is the wiring. Perform a continuity test on the cable running from the controller to the lock solenoid. This wire is often routed along with other moving parts and can become chafed or broken over years of operation.

3. Mechanical Diagnosis (Click Heard, No Lock):

   • Inspect the Bolt and Mechanism: If the solenoid is firing, but the door doesn't lock, the issue is with the physical engagement. Manually inspect the lock assembly. Is the bolt bent, jammed with debris, or otherwise obstructed?
   • Check Alignment: The lock bolt needs to align perfectly with the recess or catch on the door's carriage. Over time, a door panel can sag or shift slightly, causing misalignment. When the door is closed, check that the bolt and its target are perfectly aligned. You may need to adjust the door panel's height or lateral position on the carriages to restore proper alignment.

Diagnosing a Failure to Unlock

A door that will not open because the lock will not disengage is a serious issue, particularly in a high-traffic or emergency egress path.

1. Listen for the "Click": When an open signal is given (by a sensor or pushbutton), you should hear the lock solenoid click as it retracts the bolt before the motor attempts to move the door. If you hear the click but the door strains without moving, the lock is mechanically jammed. If you hear no click, the lock is not receiving the electrical signal to retract.

2. Electrical Diagnosis (No Click): Similar to the locking diagnosis, verify that the controller is sending the disengage signal to the lock. If the controller is sending the signal but the lock doesn't retract, the solenoid itself has likely failed (either burned out or seized). If the controller is not sending the signal, the fault lies within the controller's logic or output relay.

3. Mechanical Jamming (Click Heard, No Movement): If the solenoid fires but the bolt does not retract, it is mechanically stuck. This can happen if the door is putting pressure on the lock bolt. For example, if a building has positive air pressure, it might be constantly pushing the door panel against the lock, creating too much friction for the solenoid to overcome. Try manually pushing the door panel further into the closed position to relieve pressure on the bolt, and then try the activation signal again. If it now unlocks, it points to an environmental pressure issue or a misalignment that is causing the door to bind against the lock.

Troubleshooting the locking system is a matter of security and safety. By systematically separating the electrical command from the mechanical action, you can efficiently pinpoint the failure and restore the door's integrity as both a convenient entrance and a secure barrier.

A Philosophy of Care: Proactive Maintenance for System Longevity

In the realm of complex mechanical and electronic systems, there exists a pervasive but flawed tendency to act only in response to failure. We wait for the breakdown, for the urgent service call, and then react. A more enlightened approach, one that aligns with a deeper respect for the engineering and a commitment to long-term value, is a philosophy of proactive care. An automatic door operator, like any sophisticated machine, benefits immensely from regular, preventative maintenance. This practice is not an expense; it is an investment that pays dividends in reliability, safety, and a significantly extended operational lifespan. It is the difference between being a reactive repair person and a proactive system custodian.

Adopting this philosophy means shifting one's perspective. Instead of seeing a door as a collection of parts that will eventually fail, see it as a dynamic system whose health can be maintained and whose decline can be postponed. Regular check-ups allow you to identify and address minor issues—a slightly loose belt, a dusty sensor, a worn roller—before they can cascade into major, system-crippling failures. This is not just good practice; it is a mark of professionalism that builds trust and confidence with the client.

The Seasonal Maintenance Ritual

A comprehensive maintenance check does not need to be excessively time-consuming. A disciplined ritual, performed perhaps semi-annually or quarterly depending on the door's usage, can cover all critical systems. Consider the following as a template for a thorough maintenance checklist.

1. The Cleansing:

• Track and Housing: Clean the entire length of the track rail, removing all dust, grit, and debris. A clean track is fundamental to smooth operation.
• Sensors: Gently clean the lenses of all activation and safety sensors with a soft, lint-free cloth.
• Operator Housing: Clear any accumulated dust or debris from within the main operator cover. This improves heat dissipation and prevents interference with moving parts.

2. The Mechanical Inspection:

• Carriage Wheels: Inspect all rollers for signs of wear, cracking, or flattening. Worn rollers are a primary cause of noise and increased friction.
• Belt Tension and Wear: Check the toothed drive belt for correct tension. Inspect its surface for any fraying, cracking, or missing teeth.
• Pulleys and Fasteners: Check the return pulley and drive pulley for smooth rotation. Systematically check and tighten all accessible mounting bolts and fasteners for the track, operator, and door panels.

3. The Electronic Health Check:

• Wiring and Connections: Visually inspect all accessible wiring for chafing or pinching. Gently check that all push-fit connectors on the controller, sensors, and motor are firmly seated.
• Error Log: Access the controller's error memory. Note any recurring faults, even if the door is currently working. A repeated, intermittent fault is a clear warning of a developing problem.
• Sensor Function Test: Systematically test every activation and safety function. Does the door open promptly from all activators? Does it immediately and smoothly reverse when the safety beam is broken during a closing cycle?
• Backup Battery Test: If an optional backup battery is installed, perform a function test. Disconnect the mains power and confirm that the door performs an emergency operation (e.g., opens and stays open) as programmed.

4. The Final Calibration:

• Opening and Closing Speeds: Observe a full cycle. Are the speeds appropriate for the location? Is the deceleration smooth and the closing gentle? Make minor adjustments on the controller if necessary.
• Locking Mechanism: Test the electro-mechanical lock to ensure it engages firmly and disengages cleanly.

Performing this ritual diligently transforms your relationship with the system. You are no longer an adversary, wrestling with its faults. You become its caretaker, nurturing its health and ensuring it can perform its function reliably for years to come. This commitment to proactive care, supported by the use of high-quality, precision-engineered replacement parts, is the ultimate expression of technical excellence.

Frequently Asked Questions (FAQ)

1. How do I perform a factory reset on a Dorma ES200 controller? A factory reset can resolve issues caused by incorrect parameter settings but should be used with caution as it erases all custom configurations. To perform a reset, you typically need to access the programming menu via the integrated pushbuttons on the Basic Module. Navigate to a "Reset" or "Factory Defaults" option in the menu structure. The exact procedure can vary with firmware, so consulting the specific technical manual for your controller version is highly recommended. After a reset, the door will need to go through a new 'learning cycle' to calibrate itself to the door's weight and width.

2. What does a flashing light on the ES200 program switch usually indicate? A flashing light on the five-position program switch is a visual alert that the controller has detected and logged a fault. It serves as an immediate, external indicator that the system is not in its normal operating state. The specific fault can only be identified by accessing the error code memory directly on the controller's display. The flashing light is simply the first sign that a deeper investigation is required.

3. Can I replace an older Dorma controller with a newer model or a compatible unit? Yes, in most cases, this is possible and often recommended. The modular design of the ES200 system facilitates such upgrades. When replacing a controller, such as an older BM with a new one, ensure the replacement is fully compatible. As an OEM manufacturer, our components are designed to be direct, plug-and-play replacements. The key is to ensure the new controller's firmware is compatible with the existing motor, sensors, and any Function Modules (FM) that may be installed. A new learning cycle will be required after installation.

4. The automatic door is moving much slower than usual. What is the likely cause? Slow door speed, assuming it was not intentionally reprogrammed, can have several causes. First, check the controller's parameters to ensure the speed settings have not been accidentally altered. Second, a significant increase in friction can cause the controller's microprocessor to reduce speed to avoid motor overload. Manually check the door for binding or worn carriages. Lastly, a failing motor or a low-voltage issue from a faulty power supply could also result in reduced performance, though these are less common causes than simple friction.

5. Is the Dorma ES200 controller suitable for use in emergency escape routes? The standard ES 200 operator is designed for general use. However, for applications in emergency exits and escape routes, a special redundant version is required to comply with stringent safety standards like EN 16005 and Germany's AutSchR. This version is often designated as the ES 200-2D (dormakaba, 2021). It features a redundant control system and a second motor to ensure the door can be opened reliably even in the event of a single component failure. It is absolutely critical to use the correct, approved operator for any designated escape route.

6. What is the "Partial Open" function and when should it be used? The "Partial Open" or "reduced opening width" function is a standard program on the ES200 controller. When selected, the door opens only to a pre-set reduced width instead of its full width. This is particularly useful for conserving energy. In winter, it minimizes the loss of heated air, and in summer, it helps retain cooled air. It is ideal for periods of moderate foot traffic where a full opening is not necessary for every passage.

7. My controller is displaying an error code, but the door seems to be working fine. Should I be concerned? Yes. An error code, even on a seemingly functional door, is a warning that should not be ignored. It indicates that the controller has detected a condition outside of its normal parameters, even if it was a temporary or intermittent event. This could be an early sign of a developing problem, such as an occasional misread from a sensor or a momentary power fluctuation. It is best practice to note the code, investigate the potential cause, and then clear the error log. Ignoring such warnings can lead to an unexpected and complete failure later on.

Conclusion

The exploration of the Dorma controller and its common faults reveals a narrative of logic, perception, and communication. We move beyond the conception of an automatic door as a simple mechanism and come to appreciate it as a system with a sophisticated electronic intelligence. The controller, in its capacity as the system's brain, is in a constant, intricate dialogue with the motor, sensors, and locking devices. A malfunction is not an arbitrary event but a disruption in this dialogue—a signal that is unheard, a command that is misunderstood, or a perception that is skewed.

The diagnostic journey, from the silent, powerless door to the stuttering panel or the unblinking sensor, is a process of interpretation. The error codes logged in the controller's memory are not mere numbers; they are the system's own articulation of its distress. The true mark of a professional technician lies not in the ability to swap parts, but in the capacity to listen to these signals, to understand the logic of the system, and to systematically trace the fault to its source. Whether the culprit is a simple loss of power, a mechanical binding, a dirty sensor, or a complex internal failure, a methodical and patient approach is always the most effective.

Ultimately, ensuring the flawless operation of these systems is a profound responsibility. It touches upon matters of convenience, energy efficiency, security, and, most critically, public safety. A commitment to proactive maintenance and the use of high-quality, reliable components is the foundation of this responsibility. By cultivating a deeper understanding of the controller's function and a philosophical approach to its care, we elevate our practice from simple repair to the art of system stewardship, ensuring these gateways to our buildings remain safe, reliable, and welcoming for all.
