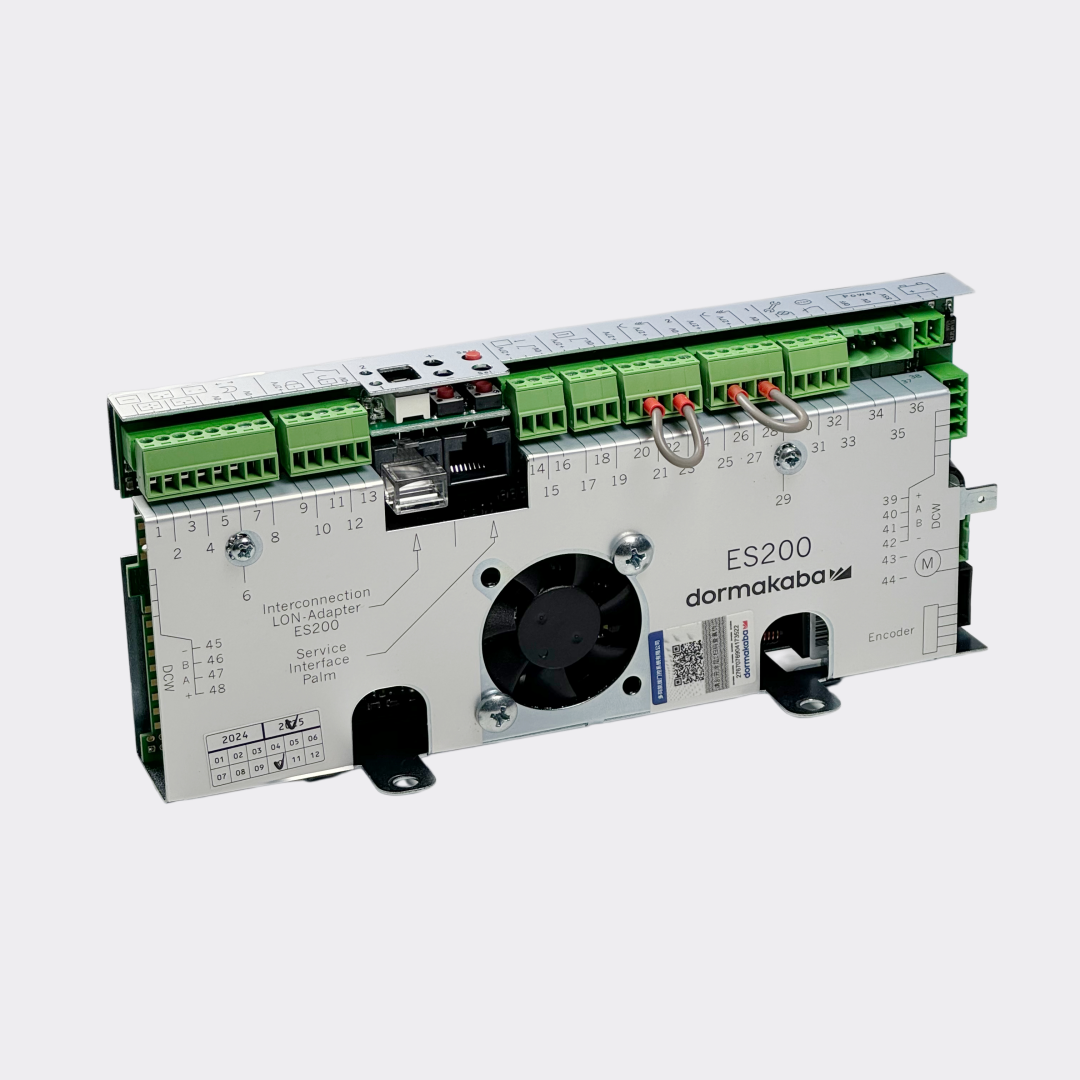

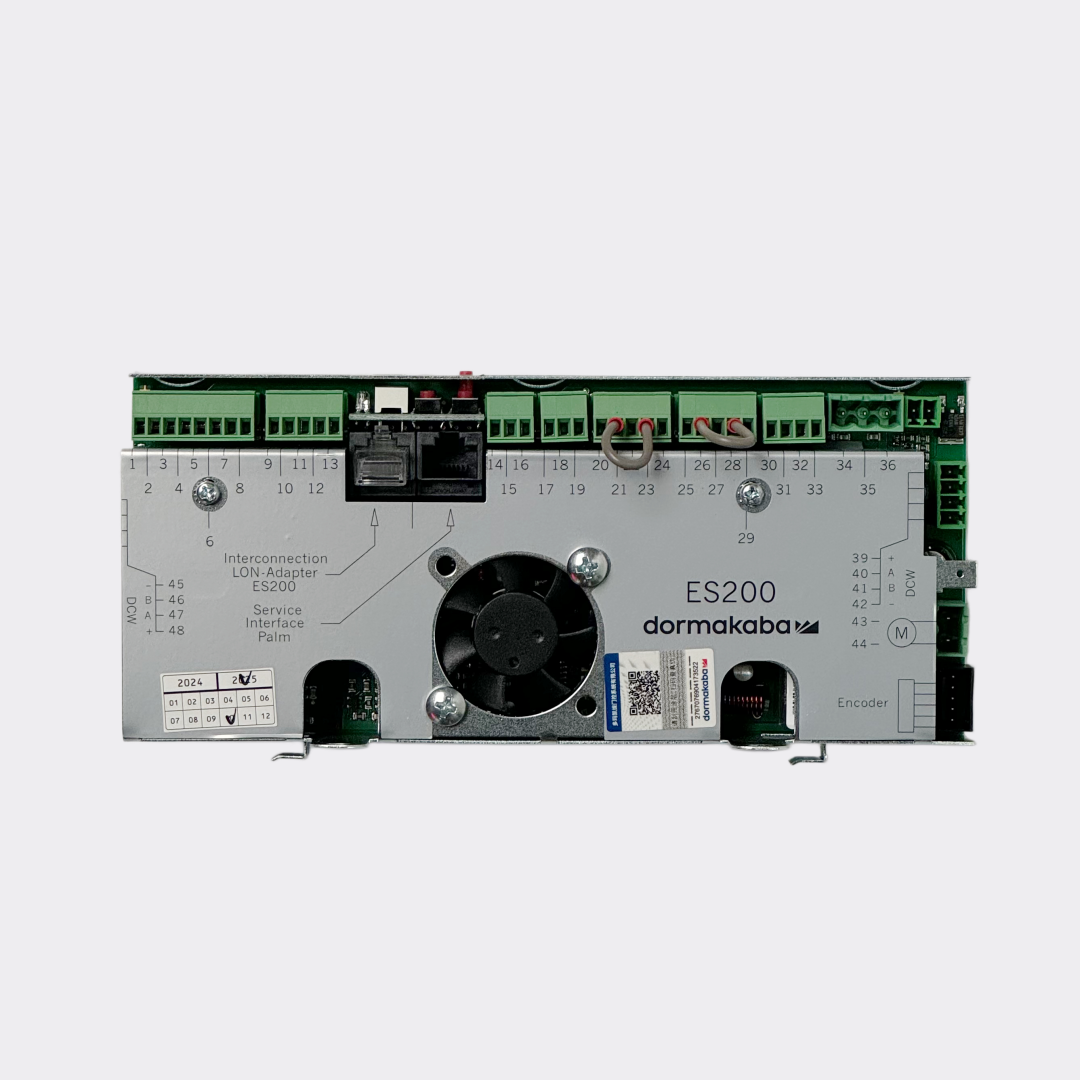

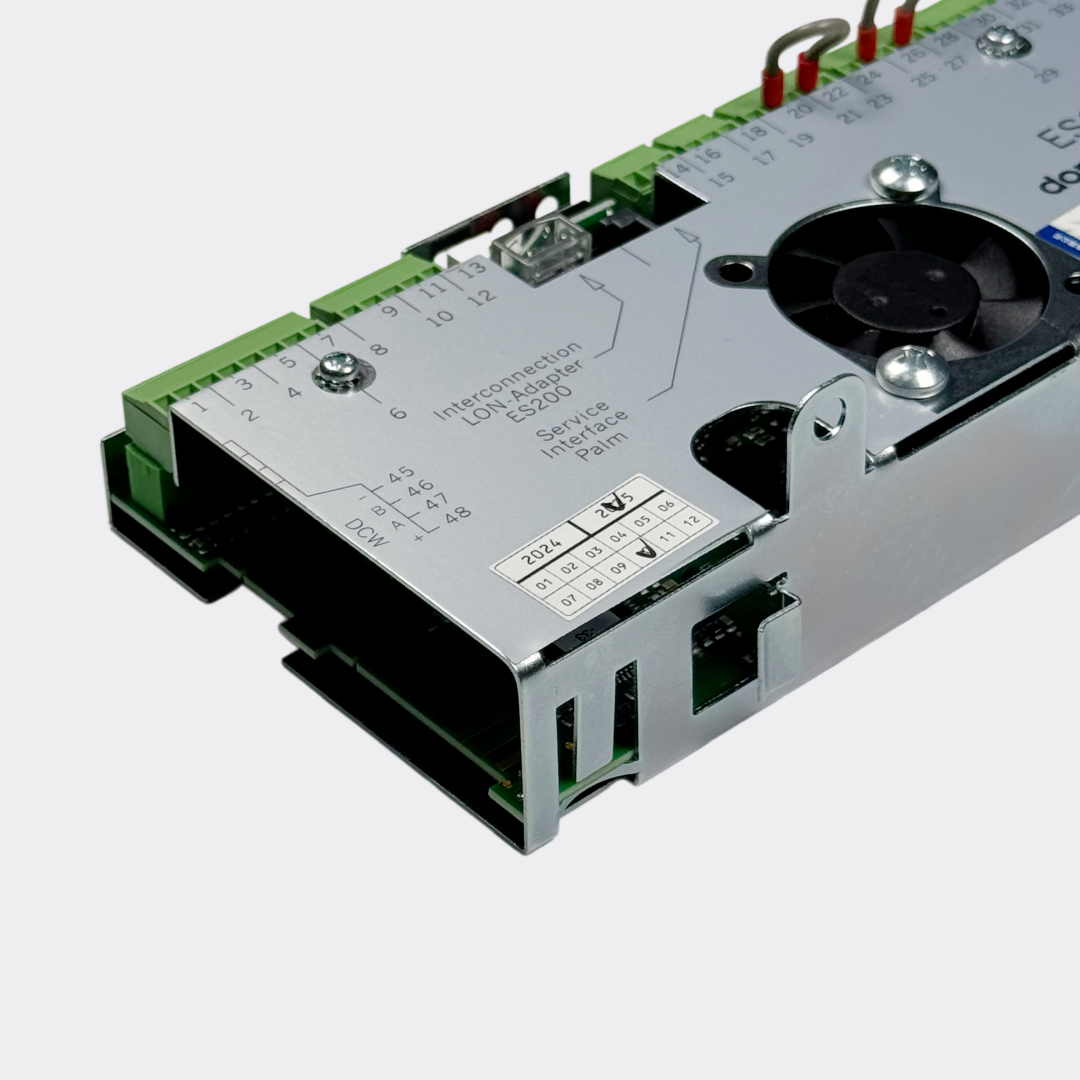

Original Dorma ES200 Controller (BM) - Part No. 9925511401150
Replace your faulty system with the genuine es200 controller (P/N: 9925511401150). As the core microprocessor for your entrance system, this original Dorma ES200 component ensures seamless automation and maximum security. Choosing a genuine automatic door control board guarantees perfect compatibility, reduces downtime, and prevents unexpected system crashes.
Technical Specifications & Part Numbers
- Brand: dormakaba (Original OEM)
- Product Name: Dorma ES200 Controller (BM)
- Manufacturer Article Number (P/N): 9925511401150
- Module Type: Basic Module (bm controller)
- Core Functions: 5-position program set (Off, Automatic, Permanent Open, Partial/Half Open, Exit Only), Night/Bank via controller logic.
- Connectivity: DCW® bus for sensors/activators, terminals for electro-mechanical lock and light barriers, 24V auxiliary output.
- Diagnostics: Error memory read-out via integrated display.
Dorma ES200 Controller Manual & Troubleshooting Guide
To assist field technicians in maintaining their automatic sliding door systems seamlessly, we provide comprehensive technical documentation below. Whether you need the essential dorma es200 controller manual programming sequences or a quick reference for system faults, this guide covers the core operations.

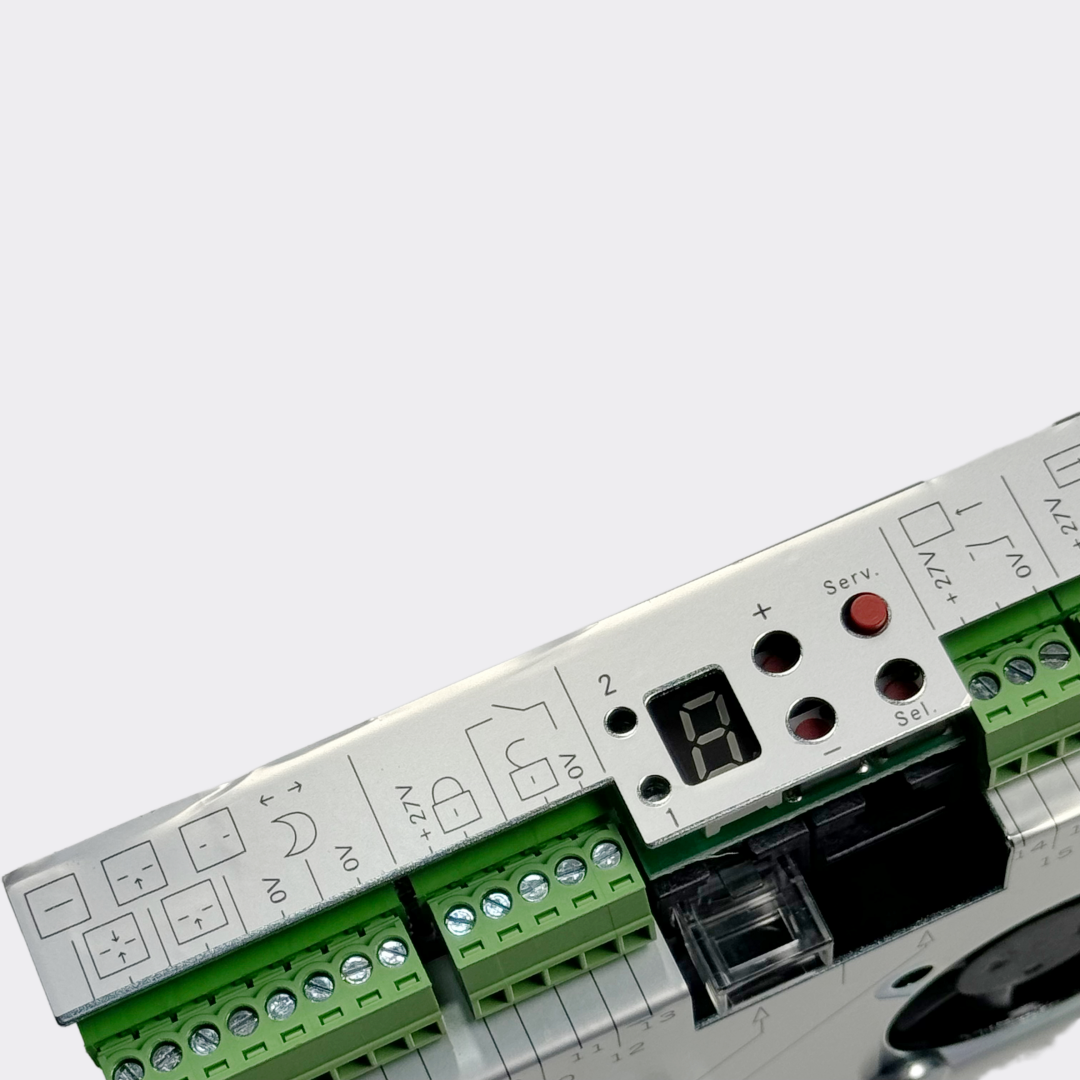

1. Terminal Wiring & Connection Guide
Accurate wiring is critical for safe operation. Refer to this section corresponding to the official dorma es200 wiring diagram to ensure your sensors and peripheral devices are correctly terminated on the Basic Module.
- Program Switch (Pins 1-6): Select modes—Off, AUTOMATIC, EXIT ONLY, PARTIAL OPEN, PERMANENT OPENING (Pin 6 is GND).
- Locking Device (Pins 9-13): Connect your electromechanical lock setup. Pin 9 offers +27 V DC for power supply; Pins 11 and 12 handle the Status report (Lock/Unlock).
- External Activation (Pins 14-16): Inputs for outside motion detectors/radars. Pin 14 provides +27 V DC power, and Pin 15 receives the external detector signal.
- Presence 1 & 2 (Pins 20-29): Connections for safety light barriers or presence curtains. Provides separated Power supply, Transmitter, and Receiver connections.

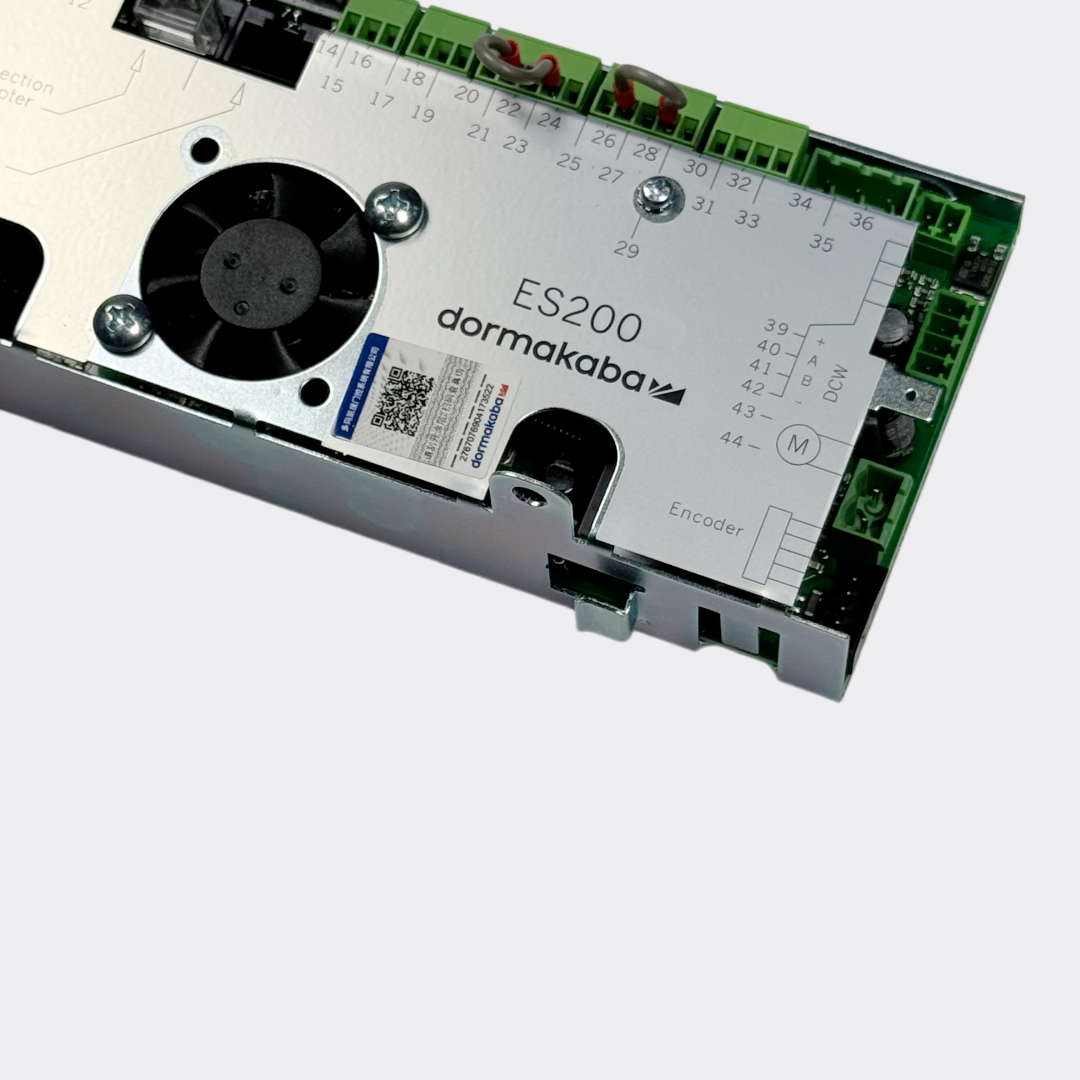

- DCW-Interface (Pins 45-48 & 39-42): Dedicated 4-wire bus connection (+27 V DC, Signal A, Signal B, GND) for Dorma Connect & Work monitored sensors.
- Motor (Pins 43-44): Main drive motor connection.
- Battery (Pins 37-38): Backup battery pack connection for emergency operation upon power failure.
Caution: Always verify DCW connections. Interchanged terminals (e.g., routing 27 V DC into signal lines A or B) or missing grounds can irreparably damage connected DCW devices.
2. On-Board Menus & Display Controls

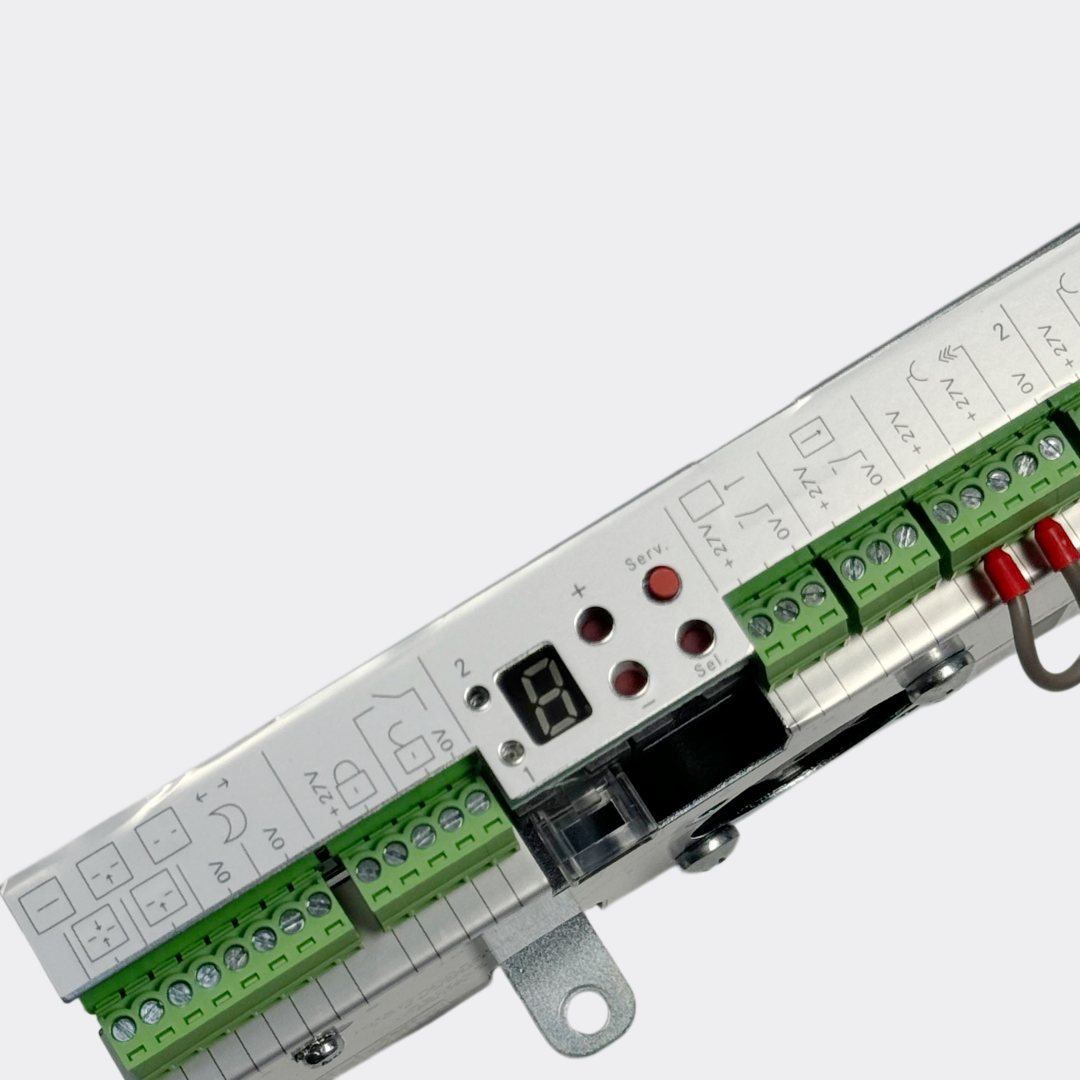

For basic parameterization without a PDA, the controller features a 7-Segment-display menu navigation system.
- LED 1 (①) & LED 2 (②): Provide instant visual status feedback.
- "+" Pushbutton (④): Used to increase values or scroll forward in menus.
- "-" Pushbutton (⑤): Used to decrease values or scroll backward in menus.
- "Select" Pushbutton (⑥): Used to confirm selections and enter submenus.
- "Service" Pushbutton (⑦): Dedicated button for service and learning cycles.
3. Diagnostic Faults & Error Codes
The integrated microprocessor monitors system health continuously. Match the reading on the 7-segment display (or handheld terminal) with our dorma es200 error codes reference below to isolate issues quickly.
| Component / Subsystem | Potential Fault Indication | Troubleshooting Step |
|---|---|---|
| Locking Device | Door stalls; incorrect lock status feedback | Verify +27 V DC at Pin 9. Check microswitch continuity across Pins 11/12 and GND (Pin 13). |
| Sensors (Presence) | Door reverses unexpectedly or stays open | Check voltage at Transmitter/Receiver terminals. Clean lenses. Ensure wiring is secure at Pins 20-29. |
| DCW Bus | Sensors not recognized / Comm Error | Measure voltage at Pin 48 (+27V). Check structural integrity of Signal A/B lines (Pins 46, 47). Ensure GND is solid. |
| Motor Loop | Jerky movement; failure to learn | Inspect Motor output (Pins 43-44) and Incremental encoder ribbon cable seating. |
| Power Loss/Battery | System dies on mains failure | Check fuse. Verify battery voltage across Pins 37/38. Replace battery if depleted. |
Why Professionals Choose This Modular Control Platform
Unlike monolithic boards that force a full replacement to add functions, the ES200 architecture separates the Basic Module (BM) from Function Modules (FM). Start with this essential controller to cover program modes, sensor/lock interfaces, and self-learning motion—then add FM features only if the site demands them. Engineered to meet strict EN 16005 / DIN 18650 requirements.
Need a Replacement?
If you have followed the wiring guidelines and cleared standard errors via the pushbuttons, but the system continues to exhibit erratic behavior (such as failed learning cycles or unresponsive DCW ports), the microcontroller itself may have sustained irreversible damage. In such cases, ordering authentic Dorma ES200 spare parts is the safest, most cost-effective path to restoring your entrance. Upgrade to a Genuine dormakaba controller today to ensure compliance and peace of mind.
