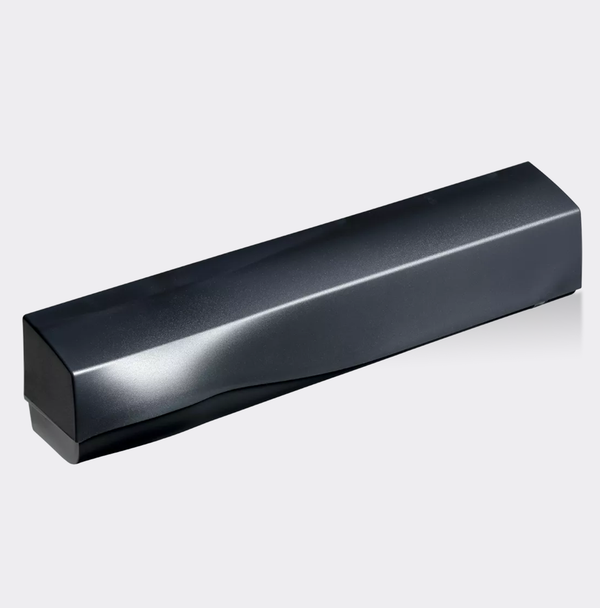

BEA IXIO-ST Safety Sensor for Automatic Sliding Doors - User Manual

Description

SAFETY SENSOR FOR AUTOMATIC SLIDING DOORS

User’s Guide for software version 0600 and higher (refer to tracking label on product).

Download the BEA DECODER app for a quick overview of settings.

Accessories

  • BA: Bracket accessory
  • CA: Ceiling accessory
  • CDA: Curved door accessory (according to EN 16005 and DIN 18650)
  • RA: Rain accessory
  • 9 V battery

Mounting & Wiring

Only trained and qualified personnel may install and setup the sensor. The warranty is invalid if unauthorized repairs are made or attempted by unauthorized personnel. Always test the good functioning of the installation before leaving the premises.

  • The sensor should be fixed firmly to avoid extreme vibrations.
  • Do not cover the sensor. Avoid moving objects and light sources in the detection field.
  • Avoid highly reflective objects in the infrared field.
  • The door control unit and the door cover profile must be correctly earthed.

Wiring Connections

  • Power Supply: Red / Black
  • Opening: Yellow / Yellow
  • Safety: Pink / Pink
  • Test: Blue / Blue

Note: Output status when sensor is operational. For compliance with EN 16005 and DIN 18650, connection to door controller test output is required.

How to Use the LCD & Settings

To adjust contrast, push and turn the grey button simultaneously during normal function only.

  • Select parameter / Scroll menu up-down
  • Select Back to return to previous menu or display.
  • Select More to go to next level: basic settings, advanced settings, diagnostics.
  • Select your language before entering the first LCD-menu (during the first 30 seconds after power-on).

Value Check & Display

Pressing a parameter symbol on your remote control displays the saved value directly on the LCD-screen. Displayed value equals saved value. Negative display means active output.

Password & ZIP Code

Enter password if necessary. Validate the last digit in order to activate the new ZIP code:

  • v = valid ZIP code, values will be changed accordingly.
  • x = invalid ZIP code, no values will be changed.
  • v/x = valid ZIP code, but from a different product. Only available values will be changed.

Infrared Safety Field & Setup

Part of the detection field can be masked to reduce it. The arrow position determines the width of the detection field. Always verify the actual detection field width with a piece of paper and not the Spotfinder, which detects the whole emitted field.

  • Angle: If necessary, adjust the IR-curtain angle (from -7° to 4°, default 0°).
  • Distance: The distance between the inner curtain of the inside door sensor and the inner curtain of the outside door sensor should always be smaller than 20 cm.

Setup Options

  • SETUP 1 (QUICK): Test of full door cycle & reference picture.
  • SETUP 2 (ASSISTED): For special applications. STEP OUT OF THE INFRARED FIELD!
  • Presettings:
    • Standard: standard in- and outdoor installations
    • Critical Environment: critical installations due to surroundings or weather
    • Shopping Street: installations in narrow streets with pedestrian traffic

Troubleshooting

Indication Problem Solution
ORANGE LED flashes 1x The sensor signals an internal fault. Check power supply. Cut and restore power. If LED lights up again, replace sensor.
ORANGE LED flashes 2x Power supply is too low or too high. Check power supply & wiring.
ORANGE LED flashes 3x Previous sensor in daisy chain is faulty. Replace previous sensor in the chain.
ORANGE LED flashes 4x Sensor receives not enough IR-energy. Select presetting 2 or 3. Clean windows if necessary. Launch assisted setup.
ORANGE LED flashes 5x The sensor receives too much IR-energy. Decrease the angle of the IR-curtains. Move highly reflective objects.
ORANGE LED flashes 8x IR power emitter is faulty. Replace sensor.
RED LED flashes quickly Sensor sees the door during setup. Launch a new assisted setup and adjust the IR angle.
LCD or remote doesn't react Sensor is protected by password. Enter password or cut/restore power to access without password during 1 minute.

Maintenance & Safety Instructions

  • It is recommended to clean the optical parts at least once a year or more if required.
  • Do not use aggressive products to clean the optical parts.
  • For complete cleaning, remove both windows by inserting a screwdriver into the notches.
  • The sensor cannot be used for purposes other than its intended use.
  • The manufacturer of the door system is responsible for compliance to applicable national and international regulations.

Technical Specifications

  • Supply voltage: 12 V - 24 V AC +/-10% (50 - 60 Hz) ; 12 V - 30 V DC +/-10%
  • Power consumption: < 2.5 W
  • Mounting height: 2 m to 3.5 m
  • Temperature range: -25°C to +55°C; 0-95% relative humidity, non condensing
  • Degree of protection: IP54 (IEC/EN 60529)
  • Noise: < 70 dB
  • Presence Typical response time: < 200 ms (max. 500 ms)
  • Technology: Active infrared with background analysis
  • Spot size: 5 cm x 5 cm (typ) | Number of curtains: 2 (max. 24 spots per curtain)
  • Output: Solid-state-relay (potential and polarity free), Max 100 mA, 42V DC / 30V AC
  • Safety standards: EN 12978; EN ISO 13849-1 PL «c» CAT. 2; EN 16005; DIN 18650-1
