Aptronic ES200 Power Supply Unit (90-230V)
Ensure the reliable operation of your Dorma ES200 and es 200 easy automatic doors with the genuine Aptronic ES200 Power Supply Unit (90-230V). Designed as a universal, auto-sensing switch-mode module, this high-quality automatic door power supply delivers stable DC rails to the controller (BM) and motor. Resolving intermittent reboots, speed variability, and power failures, this authentic Aptronic replacement unit ensures factory-grade performance and exact compatibility.
Technical Specifications & Part Numbers

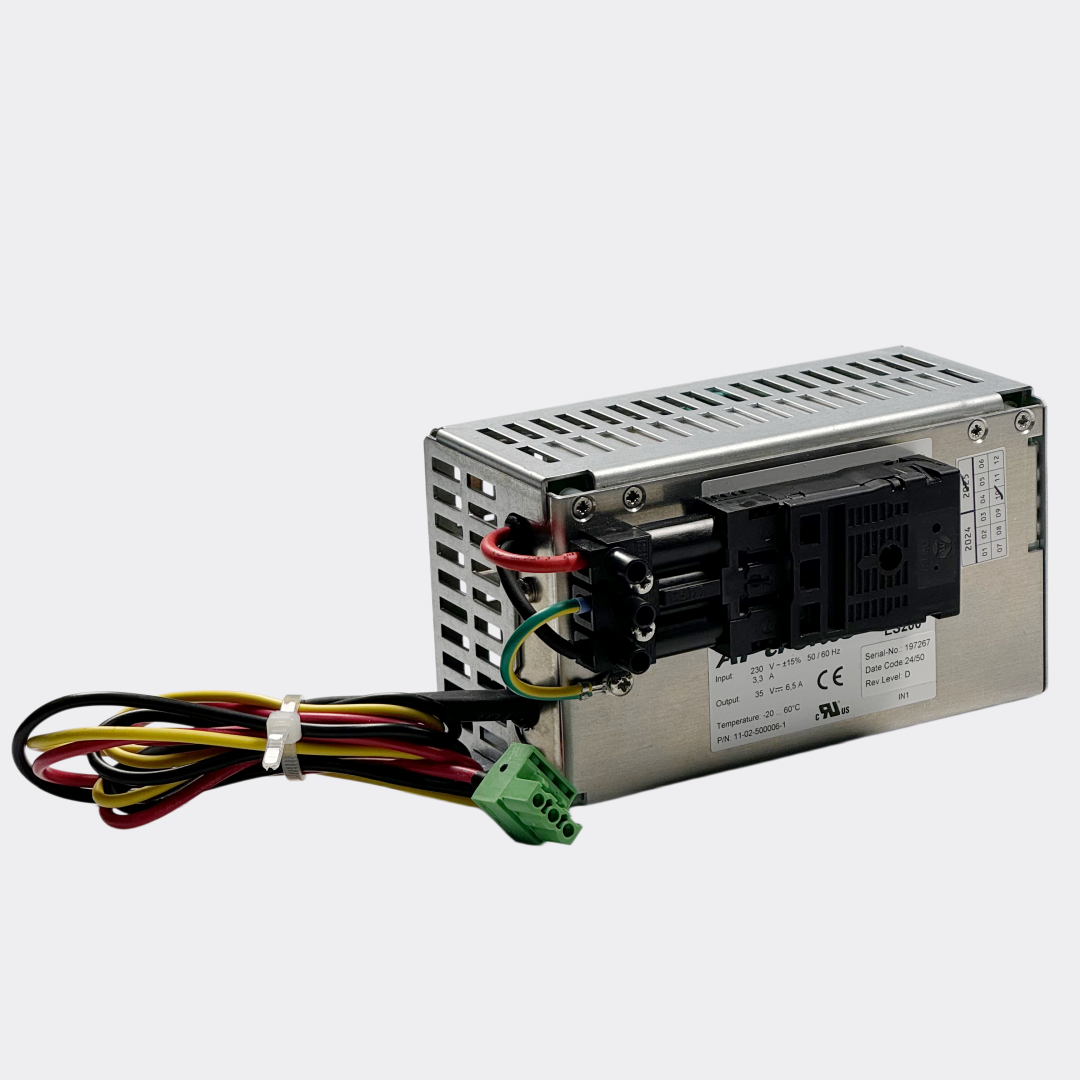

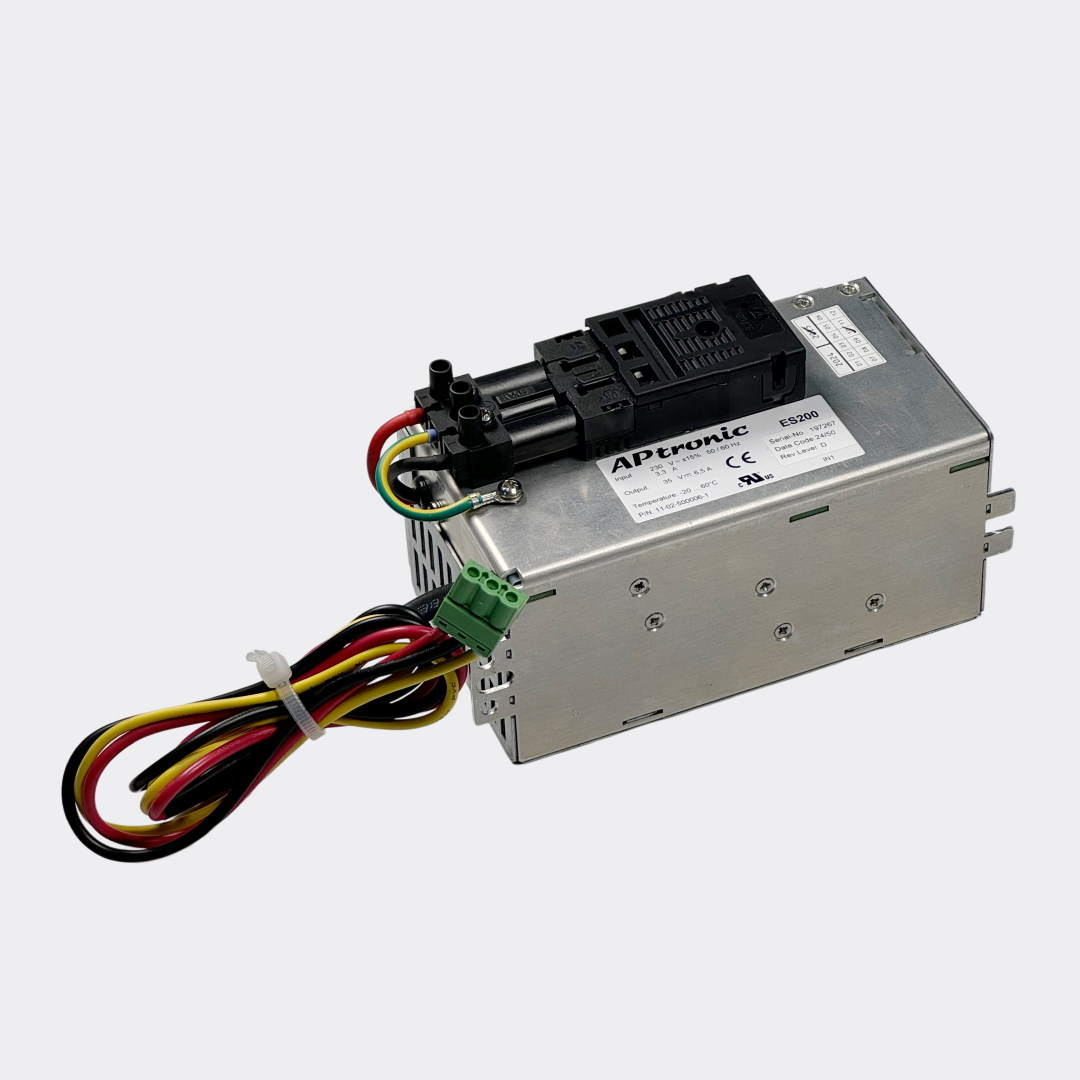

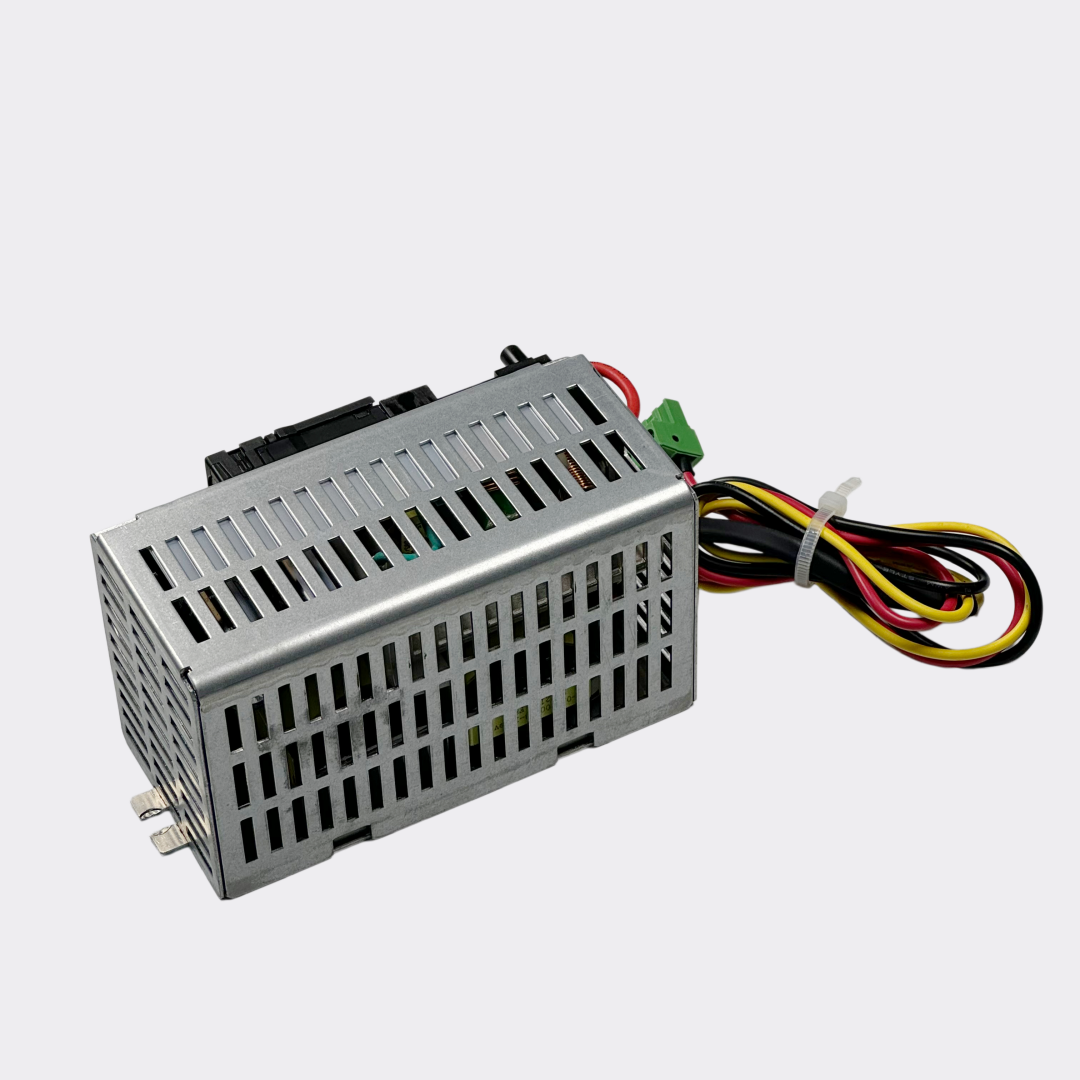

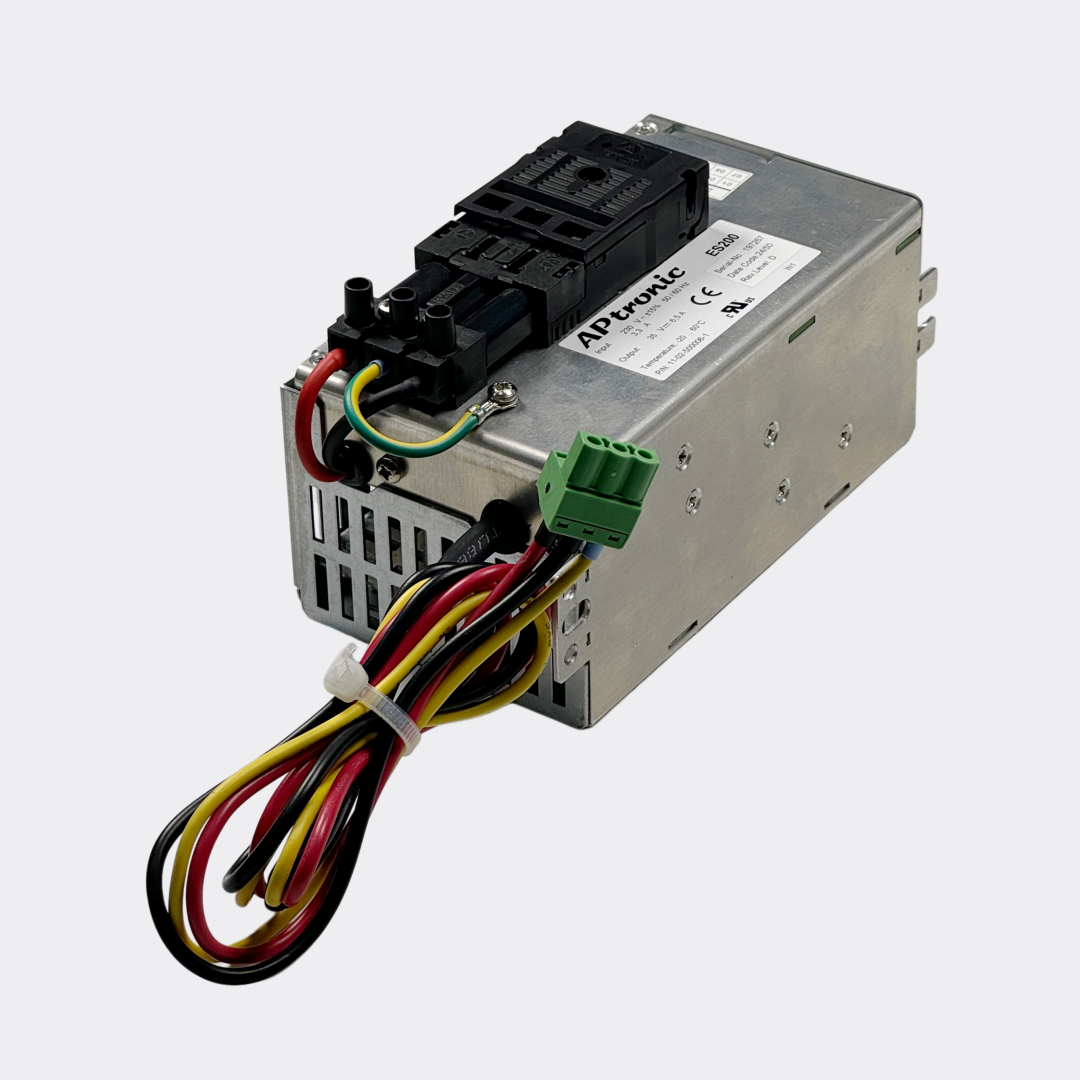

When selecting a replacement dorma power supply, verifying the hardware parameters and correct input/output voltage is crucial. Below are the official nameplate specifications and product identifiers to ensure accurate compatibility with your Dorma ES200 system:
- Brand: Aptronic
- Product Name: ES200 Universal Switching Power Supply Unit
- Manufacturer Article Number (SKU): 9925511101150
- Part Number (P/N): 11-02-500006-1
- Input Voltage: 230 V ~ ±15% 50/60 Hz 3.3 A (Compatible with wide AC input range 90-230V)
- Output Voltage: 35 V === 6.5 A
- Operating Temperature: -20 ... 60 °C
Wire Configuration & Terminal Ports
To ensure compliance with EN 16005 safety standards and prevent board burnout, cross-referencing your interface connections against the standard wire configuration is essential. If you are wondering how to disconnect this safely, always cut the mains power before handling the RJ45 and terminal blocks.
- Terminal 1 (RJ45): Connecting port for the control unit (Grundmodul).
- Terminal 2 (LED): LED status indicator for operation and faults.
- Terminal 3 (Start): Start pushbutton for manual operation testing.
- Terminal 4 (Infrared): Infrared device control receiver.
- Terminal 5 (SUB D): Connecting port for PDA (Personal Digital Assistant), essential for performing software updates via the service key.
Dorma ES200 Manual & Programming Guide
Configuring the BM controller is fast and accurate when referencing the official manual. Technicians can adjust parameters directly on the control board using the integrated 7-segment display and pushbuttons, eliminating the need for complex external setup tools for basic commissioning.
- [ + ] UP pushbutton: For increasing the parameter or value indicated.
- [ - ] DOWN pushbutton: For decreasing the parameter or value indicated.
- SEL. (SELECT): Pushbutton for MENU control.
- SERV. (Service): Pushbutton for performing the functions of the service pushbutton.
- Display Overview: Features critical parameters such as P. (Program mode), 0. (Opening speed), C. (Closing speed), and d. (Hold open time).
Troubleshooting: Dorma ES200 Error Codes
When a malfunction occurs, the controller's digital display will flash "E." followed by a specific fault code. Knowing how to read these error codes allows maintenance teams to quickly isolate sensor, loop, or motor issues. The system stores up to 10 previous errors in its memory for efficient diagnostics.
| Display Code | Error Meaning | Method of Acknowledgement / Fix |
|---|---|---|
| 0 | No error in memory | System functioning normally |
| 1 | Obstruction | Self-knowledge (Clears automatically) |
| 2 / 3 | Lock / Program switch | Turn program switch to "OFF" |
| 4 / 5 | Light barrier / Incremental encoder | Self-knowledge |
| 6 | Back up accumulator | Turn program switch to "OFF" |
| 7 | System (EEPROM) | Cycle mains (Disconnect & reconnect power) |
| 8 | EMERGENCY OFF | Release EMERGENCY OFF |
| A / C | Motor fault / Force test | Self-knowledge |
| d | Overcurrent at motor | Turn program switch to "OFF" |
| F | DCW® | Cycle mains and reset to original settings |
| L | Relay test fault | Cycle mains (Disconnect & reconnect power) |
*If resetting the program switch or cycling the mains power fails to clear these fatal codes, the controller's internal components (such as RAM or relays) are likely damaged irreversibly. In these cases, we strongly recommend ordering a brand-new replacement BM control board.
