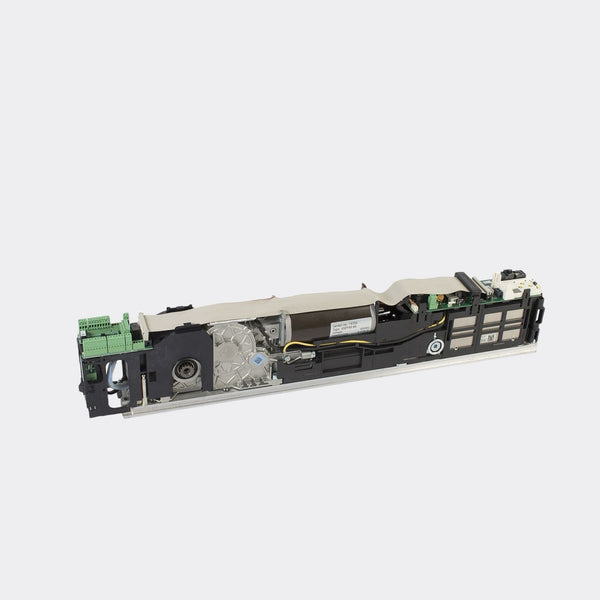

Pre-Installation Checks
- The ED operator must be completely installed per the applicable dormakaba Installation Instruction Manual.
- Door must be closed. Both program switches must be in the CLOSE “0” position.
- All terminal blocks need to be installed. No safety sensors should be connected initially.
Step 1: Power Up
- Turn the Power switch to the ON position.
- A series of numbers and letters will show up on the display.
- This sequence will stop after two horizontal dashes side-by-side move up and down several times.
Step 2: Orientation Setup
- While the dashes are moving up and down, press the bottom button on the display.
- This will identify which way the unit is mounted.
- Letters and numbers will now display right side up.
- The display will show a “P“ on the right with a rotating segment on the left.
Functional Check: When the braking circuit plug is in the correct position, the door will easily press open and close slowly. If the door is very hard to press open, change the jumper position.
WARNING
If the braking circuit plug is inserted incorrectly, the brake circuit will not work. The door can close at high speed!
Verify power fail closing speed and braking circuit plug position before programming the door and completing a learn cycle.
Power fail closing speed: The door must be adjusted to close in no less than three seconds, but a minimum of five seconds is recommended.
Braking Circuit Plug Position Reference
- Pos A: Pull arm
- Pos B: Press arm
Programming Instructions
Controls Overview:
Navigation:
- > 3s (Right Button): Enter Programming (PRG) / Reset
- < 3s (Left Button): Quit / Exit
Functions:
- > 8s: Factory Setup (Fact-Setup)
- LEARN Cycle: Indicated by "0" and rotating segment.
Detailed Programming Steps
| Step | Action | Expected Result |
|---|---|---|
| 3 | Press and hold the right button until Parameter ID is displayed (approx. 3 seconds), then release. | Parameter ID will appear (ex. AS). |
| 4 | Press the right button. | Displays the current setting. |
| 5 | Press the right button. | Display will flash the current setting. |
| 6 | Press the up and down buttons to change the setting. | Setting value changes. |
| 7 | Press the right button to accept the changes. | Displays the new parameter setting. |
| 8 | Press the left button to return to the programming menu. | Displays the current Parameter ID (Step 3). |
| 9 | Press the down button to go to next parameter. OR Press the left button to exit. |
Next parameter OR Display shows rotating segment and "0". |
All three required parameter settings (AS, rd, Tb) must be made to flash even if the value does not need to be changed before the door will move to the learn cycle.
Configuration Parameters
| Step | Parameter | ID | Range / Values | Factory Setting | Description |
|---|---|---|---|---|---|
| 10 | Installation type | AS | 0-4 | 0 |
0: Pull arm with track, wall mounting on pull (hinge side). 1: Push arm, wall mounting on approach (non-hinge side). 2: Push arm with track, wall mounting on approach (non-hinge side). 3: Overhead concealed (OHC) right hand. 4: Overhead concealed, left hand. |
| 11 | Reveal depth | rd |
ED50/100: -3 to 30 ED250: -3 to 50 |
0 |
Set in increments of 10 mm (3/8”). Example: 4 = 40 mm (1 9/16”) |
| 12 | Door width | Tb |
ED50/100: 7 to 11 ED250: 7 to 16 |
10 |
The astragal is included in the door width. Set in increments of 100 mm (4”). Example: 9 = 900 mm (36”). |
Reference Tables
Reveal Depth (rd) Conversion
| Value | Inches |
|---|---|
| -3 | -1 3/16" |
| -2 | -3/4" |
| -1 | -3/8" |
| 0 | 0" |
| 1 | 3/8" |
| 2 | 3/4" |
| 3 | 1 3/16" |
| 6 | 2 3/8" |
| 10 | 3 15/16" |
| 15 | 5 7/8" |
| 20 | 7 7/8" |
| 25 | 9 13/16" |
| 30 | 11 13/16" |
| 40 | 15 3/4" |
| 50 | 19 11/16" |
Door Width (Tb) Conversion
| Value | Inches |
|---|---|
| 7 | 28" |
| 8 | 32" |
| 9 | 36" |
| 10 | 40" |
| 11 | 44" |
| 12 | 48" |
Learn Cycle
Ready State: A “0“ displayed on the right side and a rotating segment on the left indicates the unit is ready for a learn cycle.
- To start the learn cycle, press and hold the bottom button until the display changes (approximately three seconds).
- The door will make several movements and the display will cycle through several letters and numbers.
- When the display stops at “4”, push the door open to the desired opening angle between 90 and 110 degrees.
- Let go of the door and press the bottom button to continue the learn cycle.
- The operator will complete the learn cycle.
- When finished, there will be two horizontal bars side by side on the display.
You can now continue with the programming and customize the door as desired.
Troubleshooting: Spring Force
If the door closes and an “F” is displayed, this indicates that the spring force is too low.
- Turn off the power.
- Increase the spring force.
- Minimum: 10 turns
- Maximum: 18-24 turns (24 on ED250)
- Restart the learn cycle by pressing and holding the bottom button for approx. 3 seconds.
