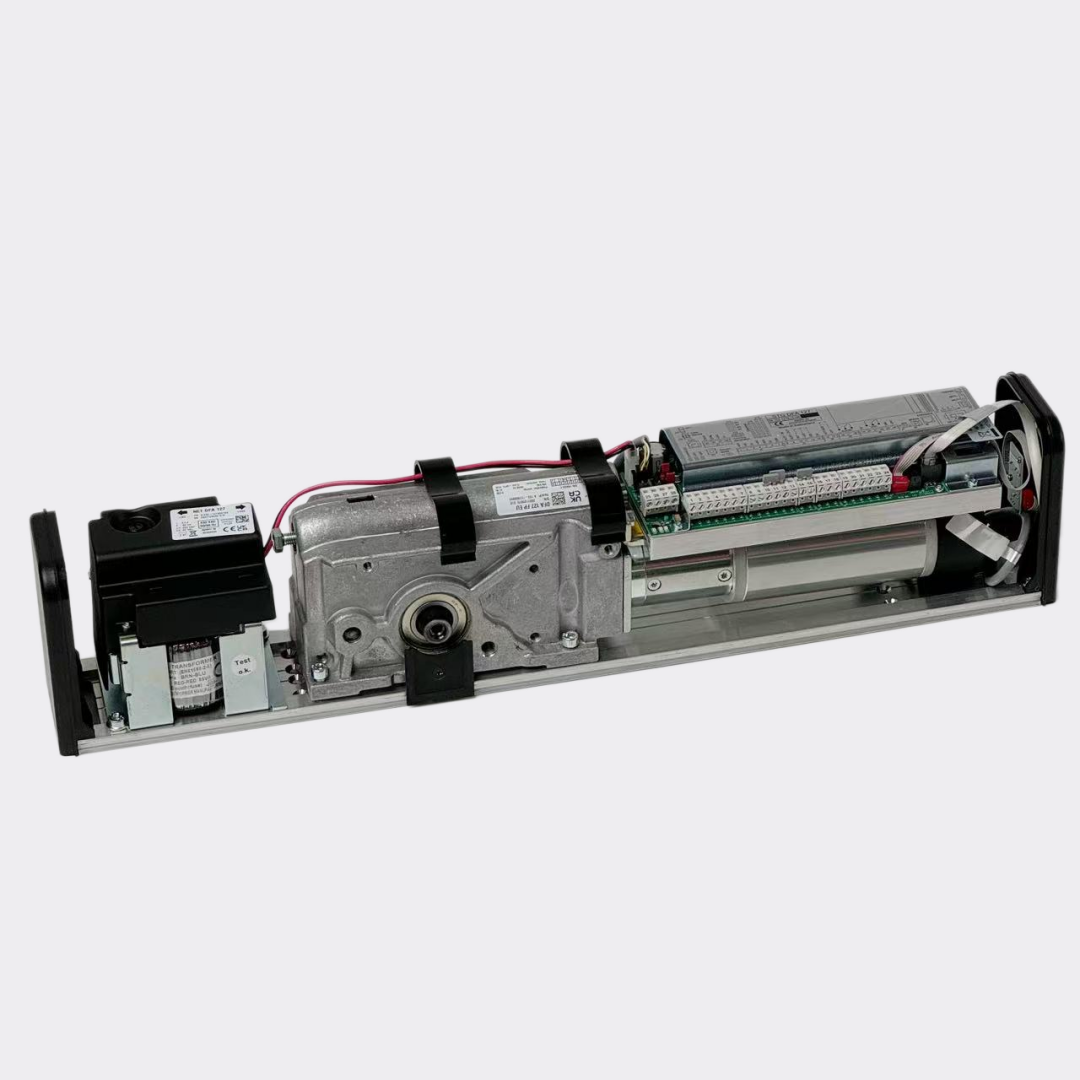

Record DFA 127 Pushing Swing Door Operator — OEM Replacement Unit

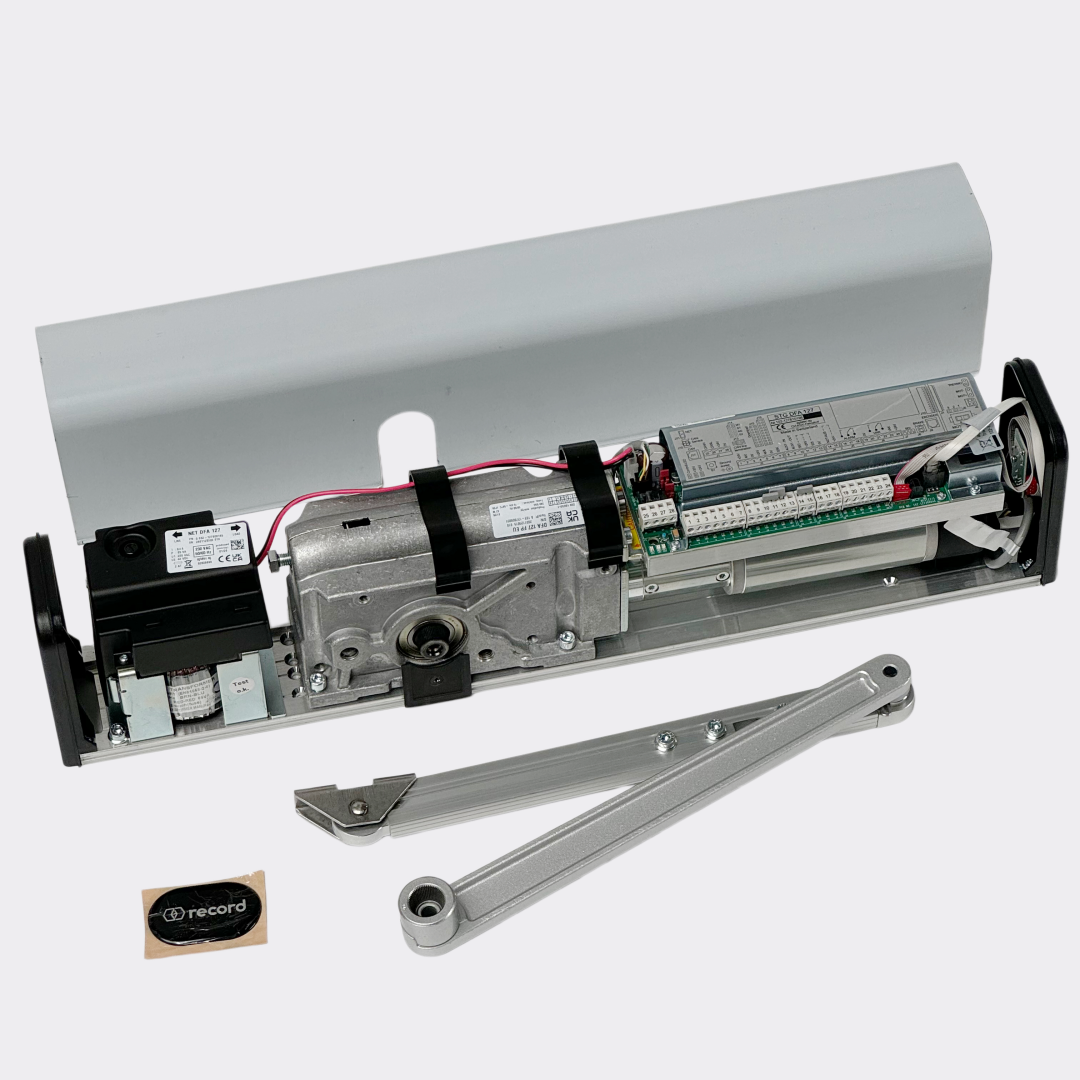

The Record DFA 127 is a compact electro-mechanical swing door operator configured with a standard pushing arm. It is engineered for professional automatic-door installations, planned Record DFA 127 replacements and refurbishment projects where a dependable complete operator is required.

This Record DFA 127 pushing operator is suited to contractors and facilities teams specifying a push-side swing-door automation solution. Its compact format supports a clean installation while providing reliable, whisper-quiet automatic door operation for commercial and public-access environments. As a DFA 127 replacement unit, it mounts directly into existing DFA 127 rail systems without modifying the door frame.

Key Application Benefits

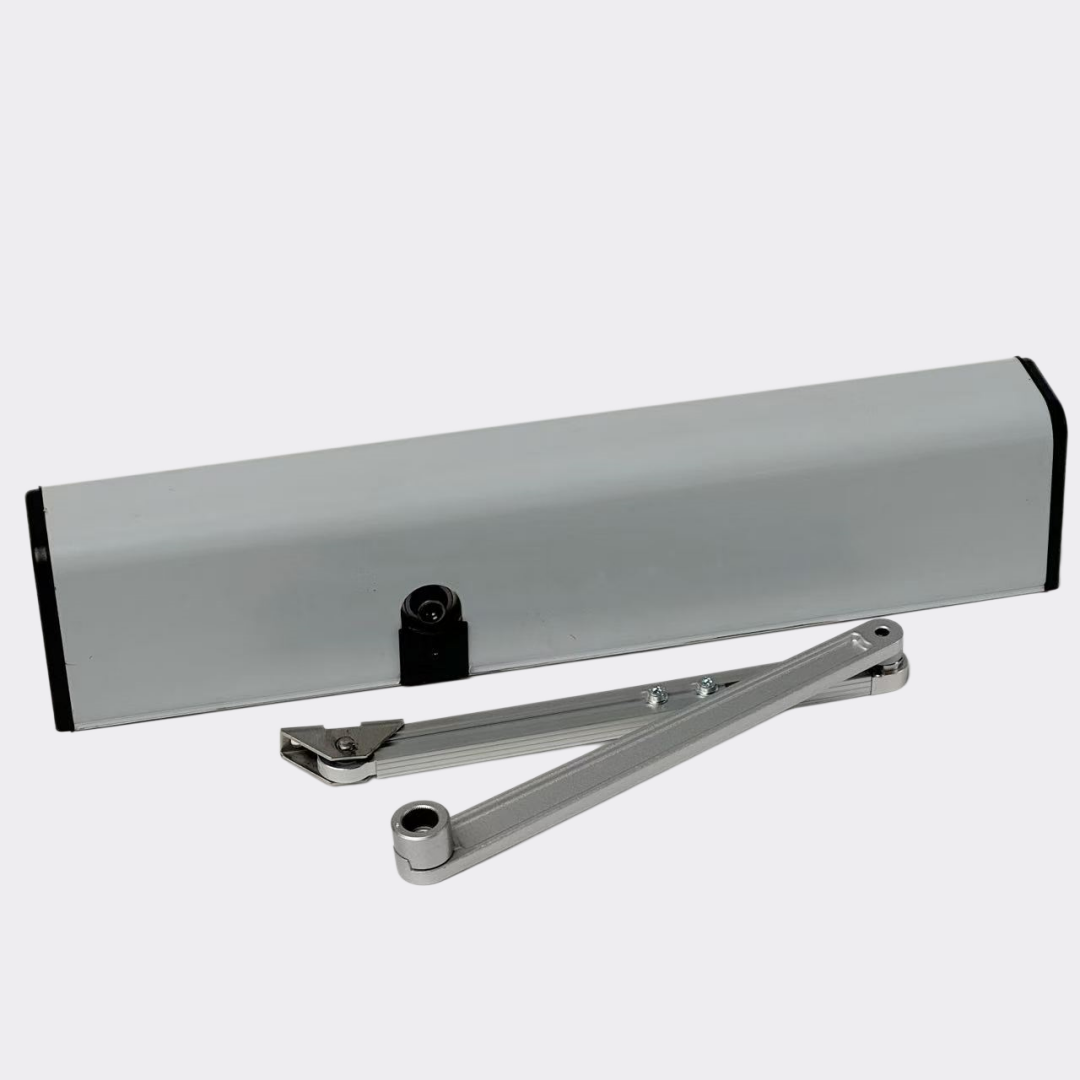

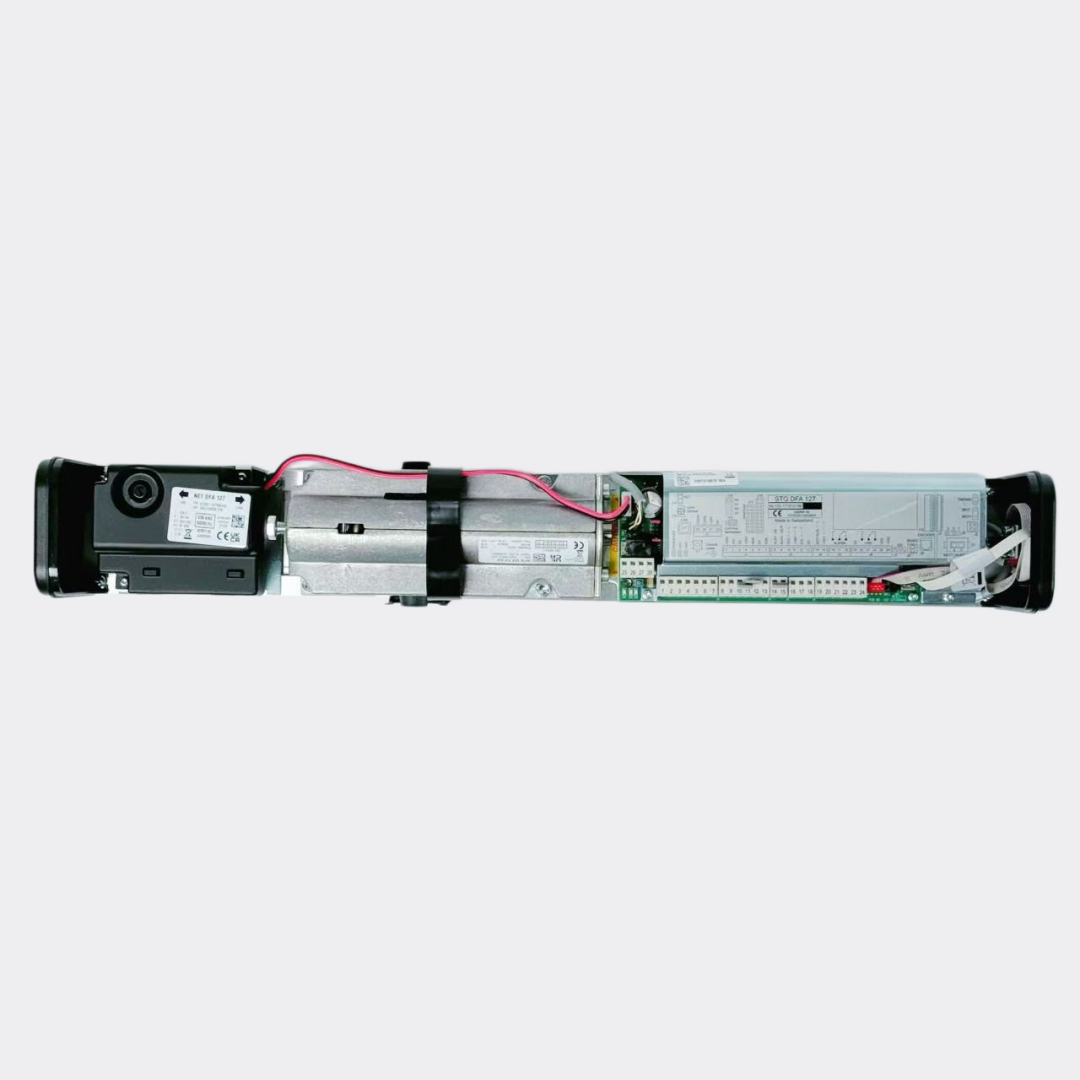

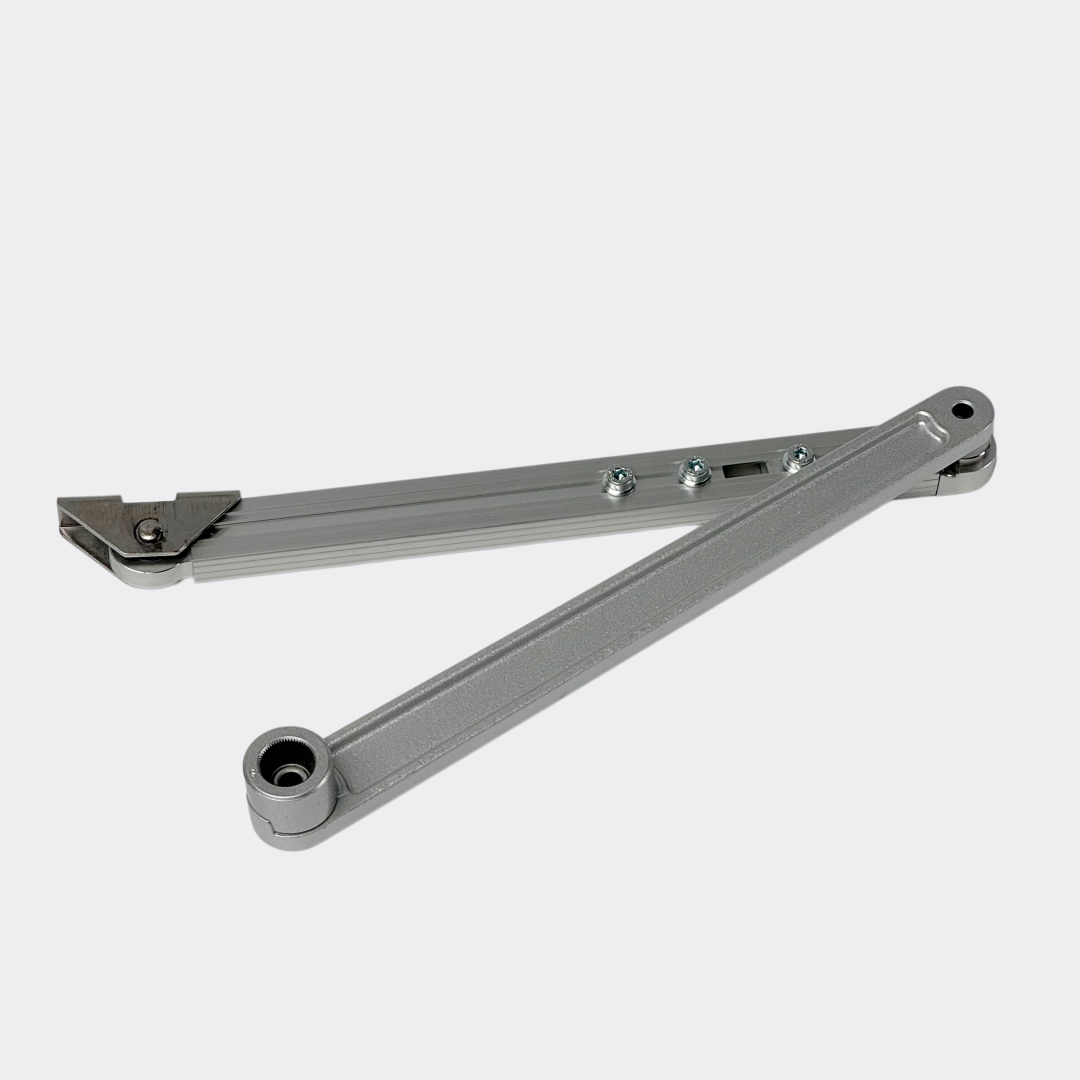

• Complete DFA 127 complete operator assembly for standard pushing-arm applications
• Direct-fit replacement for existing Record DFA127 operator installations
• Compact electro-mechanical design — ideal for DFA 127 push operator configurations
• Suited for commercial, healthcare, hospitality and public-access doors
• Compatible with DFA 127 swing operator rail and arm accessories

Ordering Guidance

Please confirm the door handing, opening direction, site conditions and required operating configuration before ordering. This ensures the Record DFA 127 is correctly specified — including whether your project requires a DFA 127 low energy mode setup or a Record DFA 127 fire door compliant configuration. For the full range of compatible arms, sensors and control panels, browse our Record DFA 127 collection.

Technical Specifications

• Manufacturer (OEM): Record (Switzerland — agta-record)
• Compatible Model: DFA 127 Automatic Swing Door Operator (Full Power, Pushing Arm)

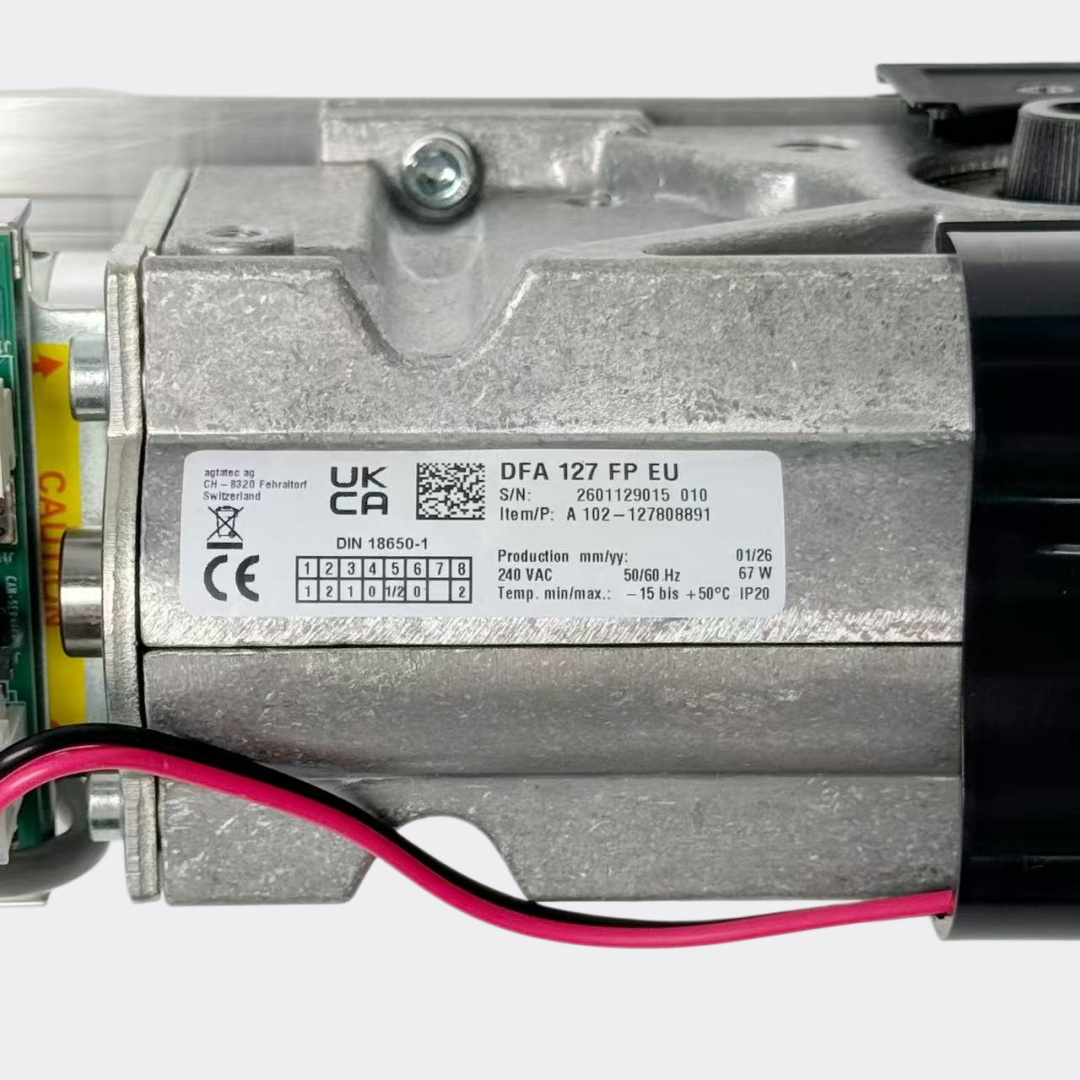

• Part Number (P/N): 127808891 (Original OEM Motor & Gearbox Unit)
• Article Number: 08290802
• Dimensions (H × W × L): 85 × 124 × 600 mm (high housing: 110 × 126 × 600 mm)
• Door Closer Size: EN4 – EN6 (standard & slide arm)
• Electrical Power Supply: 230 VAC, 50 / 60 Hz
• Rated Power: 67 W
• Standby Consumption: 13 W
• Noise Level: ~18 dB (whisper-quiet)
• Opening Angle: 70° – 115°
• Key Functions: Automatic reverse, Push & Go, Emergency exit, 2-leaf master/slave operation

Record DFA 127 Replacement — Compatibility & Installation

If you are replacing an aging or failed unit, this Record DFA 127 replacement operator is a direct-fit assembly matching the original mounting footprint. The DFA 127 replacement unit includes the motor and gearbox (P/N 127808891) and is compatible with both standard pushing and slide-arm configurations across the EN4–EN6 door-weight range.

For contractors upgrading an existing Record DFA 127 installation, please verify whether your current setup uses a DFA127 push arm or pull-arm variant before ordering. The pushing-arm version — the most common configuration — is the default for this product page.

Troubleshooting & Technical Support

Q: How do I reset the Record DFA 127 operator?

A: Toggle the BDI switch to Manual, then press and hold the reset button (next to the BDI) until the status LED changes state. Switch back to Automatic and run a test cycle.

Q: What does the status LED on the DFA 127 mean?

A: The status LED indicates the operating state of the Record DFA 127:

Q: Why won't my DFA 127 door close?

A: Work through this checklist before assuming hardware failure:

• BDI in Automatic (not Manual / Continuously Open)
• Radar sensor powered & lens clean
• Clear obstacle memory via reset button
• Exit Lock mode if key-switch (SSK) is installed
• Verify 230 VAC supply & 10 A fuse

Still not working after reset? The motor or gearbox has likely failed beyond repair. Order the direct-fit OEM Record DFA 127 replacement (P/N 127808891, Article No. 08290802) — 230 VAC, EN4–EN6, pushing arm. Explore the full Record DFA 127 range for compatible arms, sensors and control panels.
