Push Arm Assembly for Assa Abloy Besam SW300 – Black (1007965BK)
Regular price
$0.00
Sale price
$0.00
Regular price
Unit price
DESCRIPTION

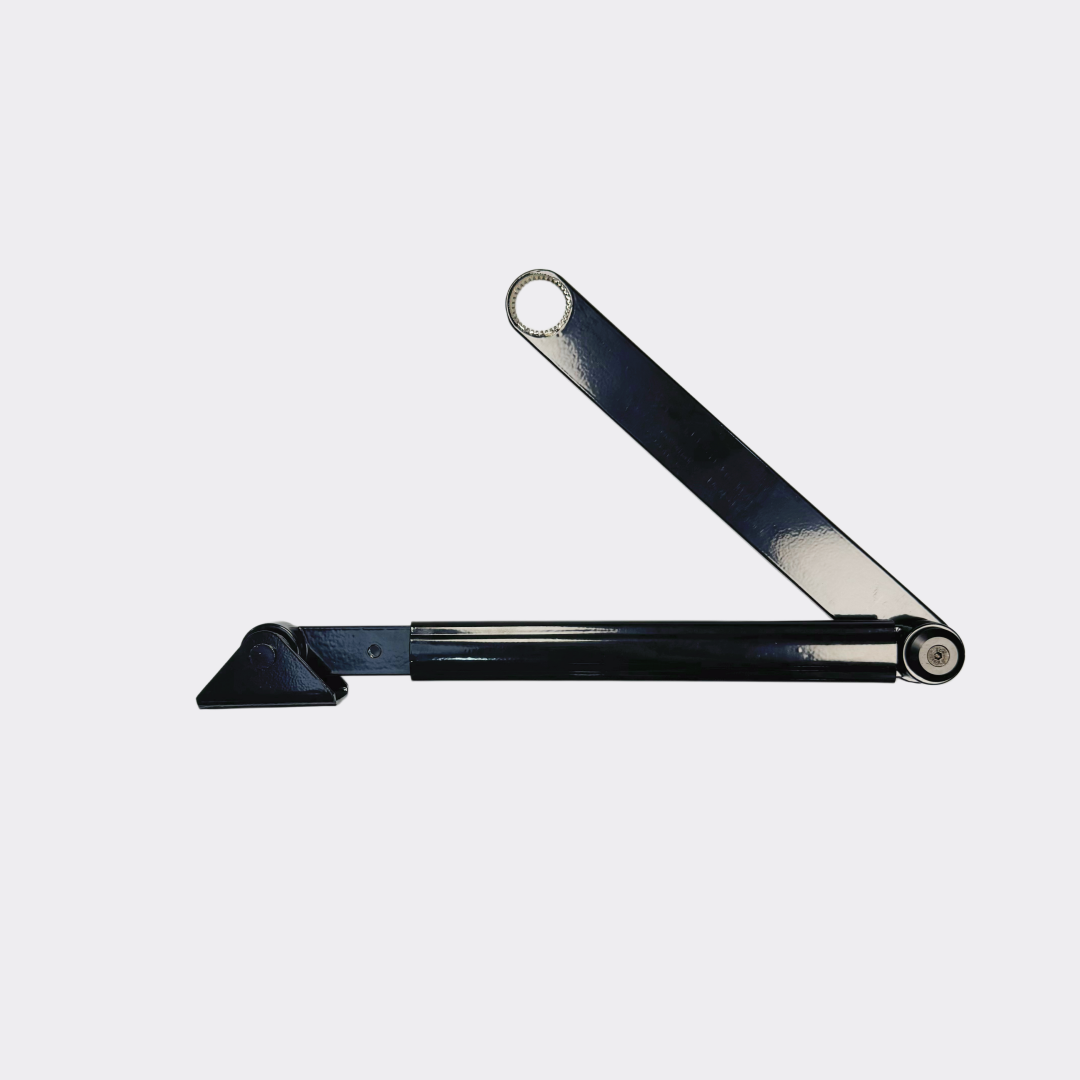

Push Arm Assembly for Assa Abloy Besam SW300 Automatic Swing Door Operator – Black
Restore full push-side operation to your Assa Abloy Besam SW300 swing door operator with this heavy-duty push arm assembly in black (BK) finish. Designed as a direct compatible replacement for OEM article no. 1007965BK, it delivers the same drive geometry, load characteristics and smooth motion as the original arm system — at a fraction of the OEM price.
The push arm system is used when the SW300 operator is mounted on the wall on the opposite side of the door swing (push-side installation). It is supplied complete with the drive arm, telescopic part and door fitting, ready to bolt on.
Key Features
- Direct OEM-compatible replacement – interchangeable with Assa Abloy Besam push arm art. no. 1007965BK

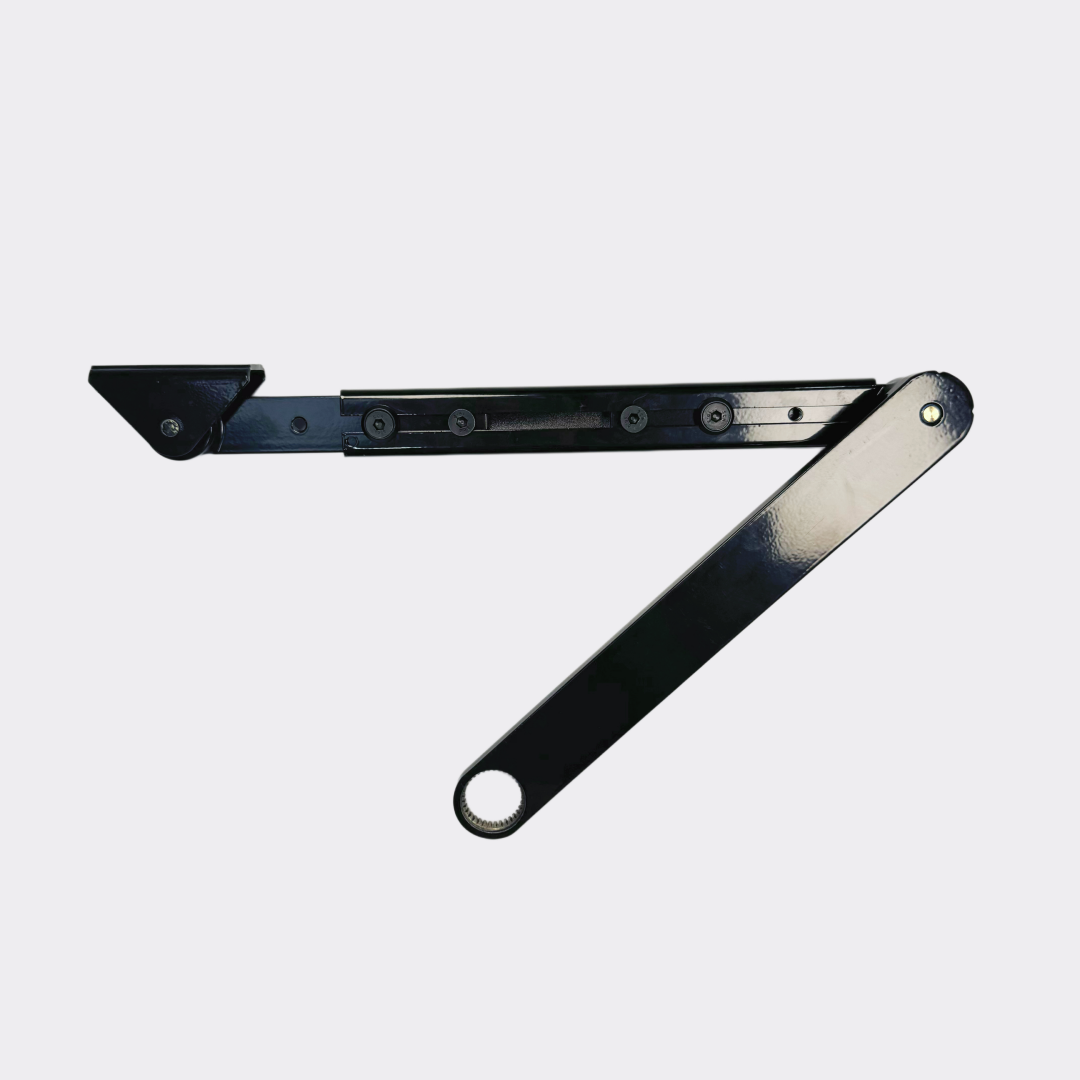

- Complete 3-piece arm system – drive arm, telescopic part and door fitting (shoe) included
- Splined spindle adaptor – precision-machined to mate with the SW300 operator output shaft for zero play and accurate alignment
- Telescopic adjustment – sliding arm section with multiple fixing positions adapts to different door widths and reveal depths
- Black powder-coated finish (BK) – matches black-end-cap SW300 operators for a uniform, professional look
- Heavy-duty steel construction – built for high-traffic commercial entrances; suitable for fire door applications with reveal (A) up to 300 mm
- Fixing hardware included – thread-locked screws, splined collar nut and washer supplied for immediate installation
Compatibility
- Assa Abloy / Besam SW300 automatic swing door operator (push-side installation)
- Also fits SW150 operators using the standard push arm system
- Replaces / compatible with OEM art. no.: 1007965BK
- Works with OEM arm extensions for deeper reveals: 230 mm (173004BK), 345 mm (173005BK) and joint part (173191)

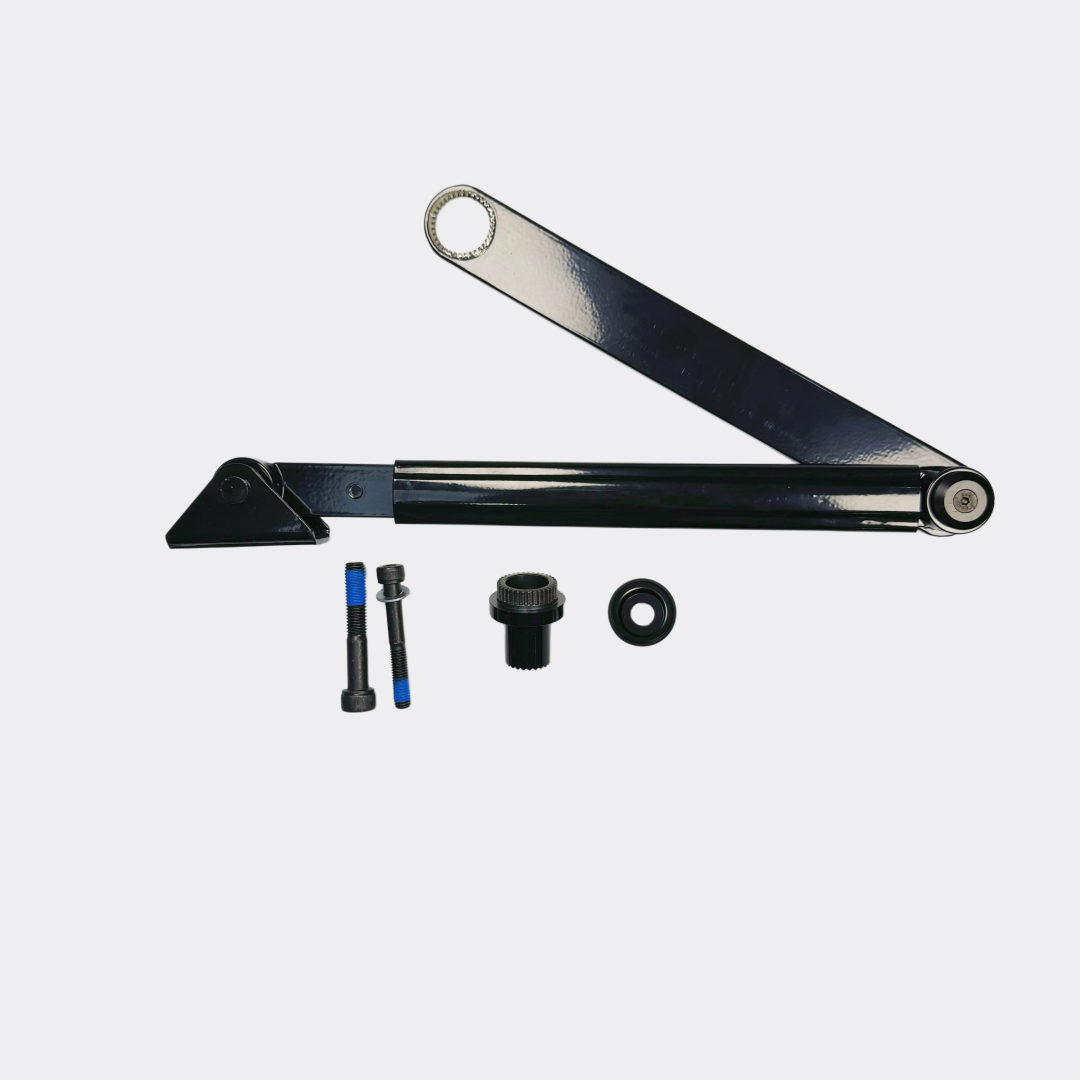

What's in the Box
- 1 × Drive arm with splined spindle bore
- 1 × Telescopic arm section
- 1 × Door fitting (mounting shoe)
- 1 × Splined collar nut
- 1 × Washer
- 2 × Pre-thread-locked fixing screws
Technical Summary
| Product type | Push arm system (drive arm + telescopic part + door fitting) |
| Fits operator | Assa Abloy Besam SW300 / SW150 swing door operator |
| OEM reference | 1007965BK |
| Finish | Black (BK) powder coating |
| Material | Heavy-duty steel |
| Installation side | Push side (operator on opposite side of door swing) |
| Fire door approval | Suitable for reveal (A) up to 300 mm (per OEM specification) |
| Tightening torque | Adaptor screws 15 Nm; main arm bolt 50 Nm (per OEM manual) |
Installation Notes
- Align the marks between the arm and the adaptor before tightening, per the SW300 installation manual.
- Tighten the four adaptor screws to 15 Nm and the main arm bolt to 50 Nm with the door closed.
- For reveals deeper than standard, combine with OEM arm extensions (230 mm / 345 mm) and joint part.
- Installation should be carried out by a qualified automatic door technician in line with EN 16005 and local regulations.
