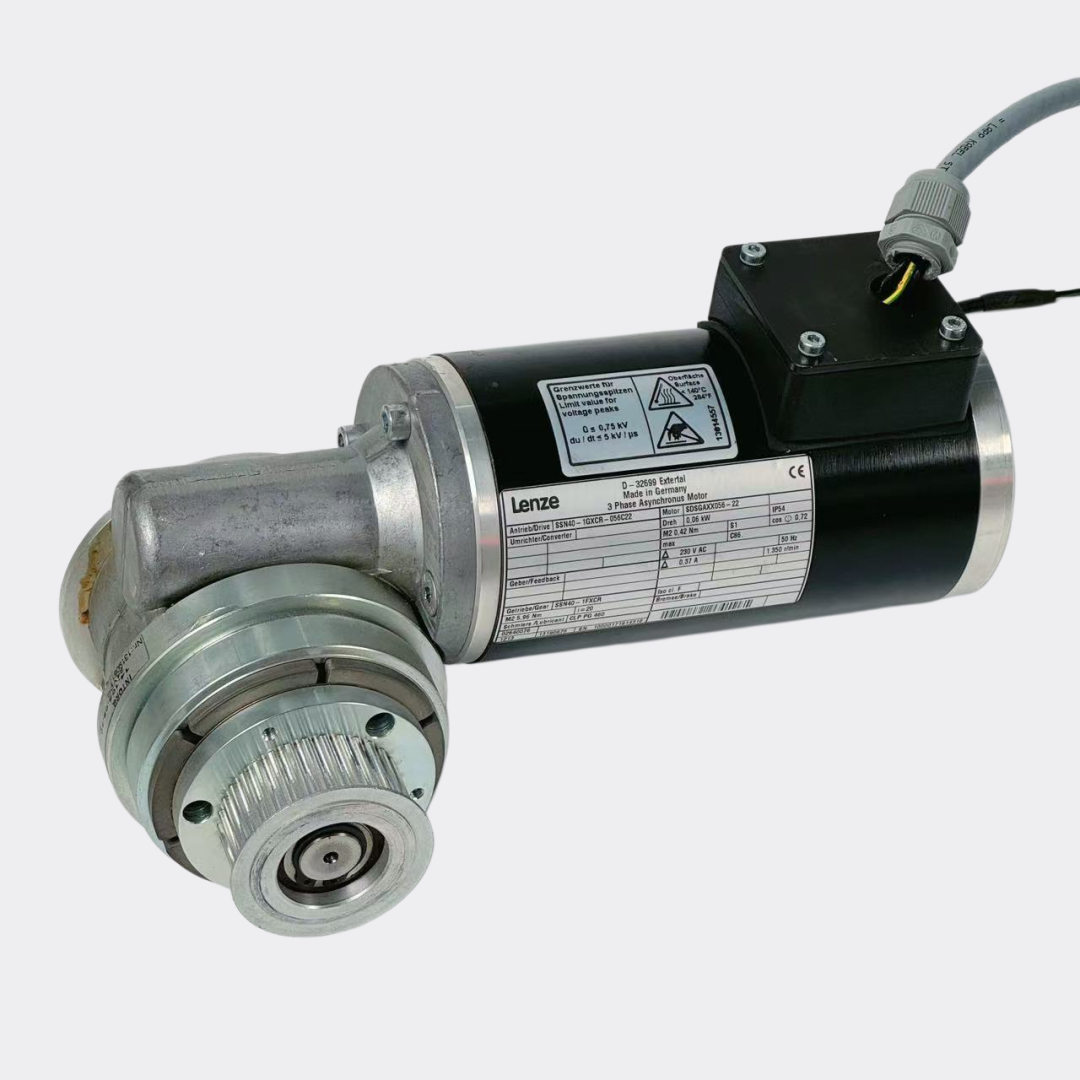

Lenze SSN40-1GXCR-056C22 Dorma Revolving Door Motor
Product Overview

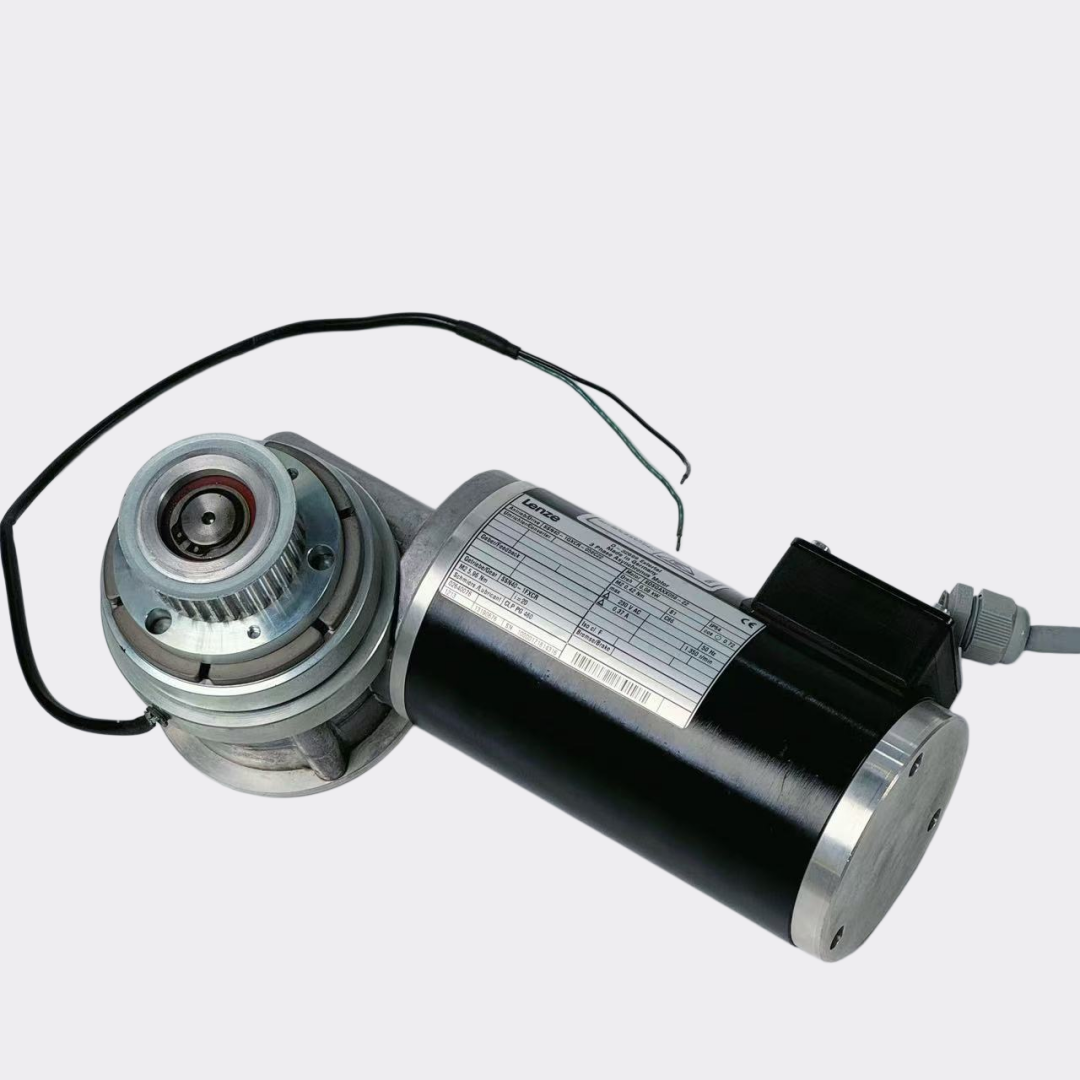

Ensure the smooth, reliable, and continuous operation of your Dorma automatic revolving doors with this high-quality Lenze SSN40 3-Phase Asynchronous Motor. Manufactured in Germany, this industrial-grade motor comes fully assembled with an integrated INTORQ brake unit and a durable timing belt pulley, making it the perfect direct replacement part for your automated door systems.
Product Parameters & Specifications

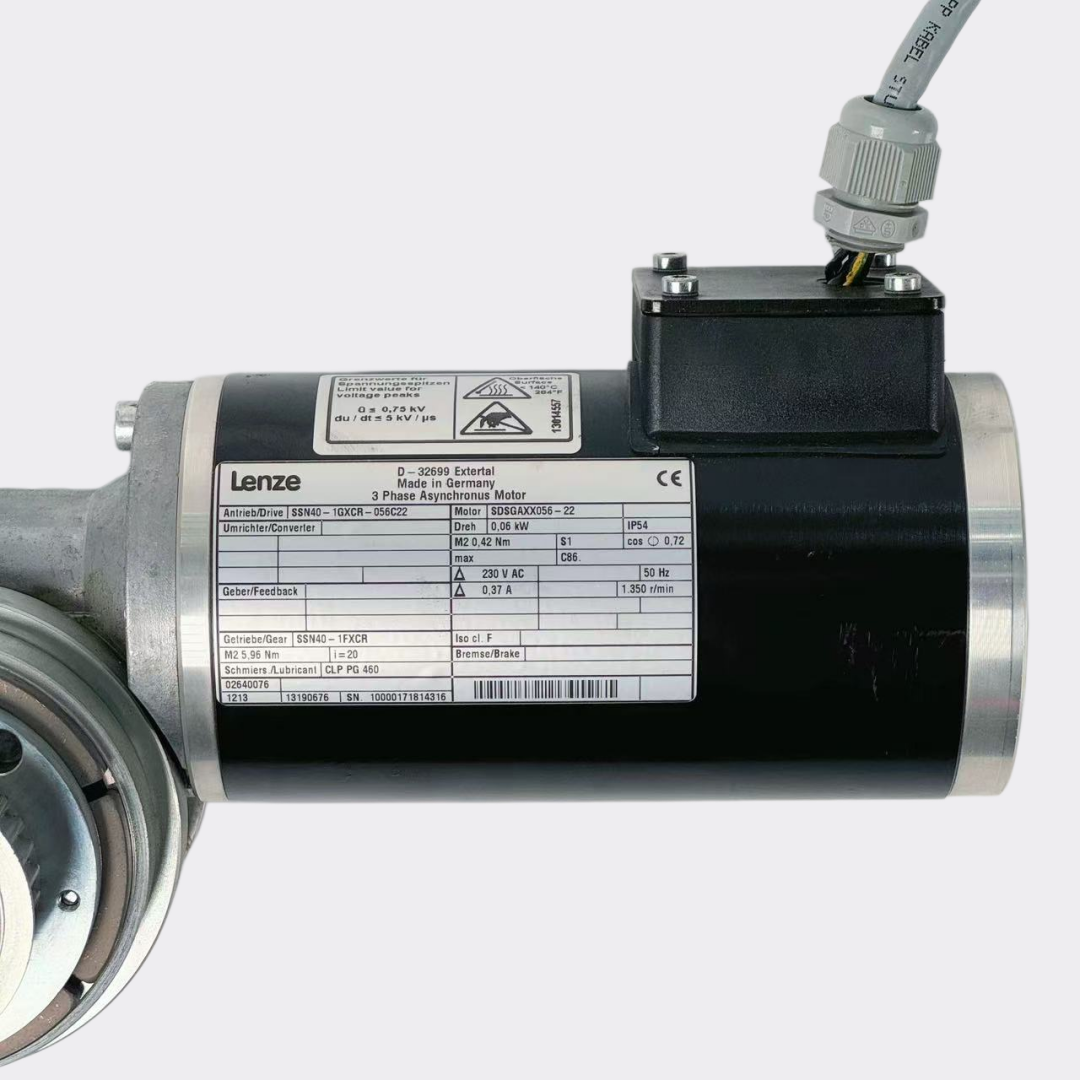

| Brand | Lenze |
| Type | 3 Phase Asynchronous Motor |
| Drive Model | SSN40 - 1GXCR - 056C22 |
| Motor Model | SDSGAXX056 - 22 |
| Gear (Getriebe) | SSN40 - 1FXCR (Ratio: i=20) |
| Power | 0.06 kW |
| Voltage / Frequency | Δ 230 V AC / 50 Hz |
| Rated Current | 0.37 A |
| Speed | 1,350 r/min |

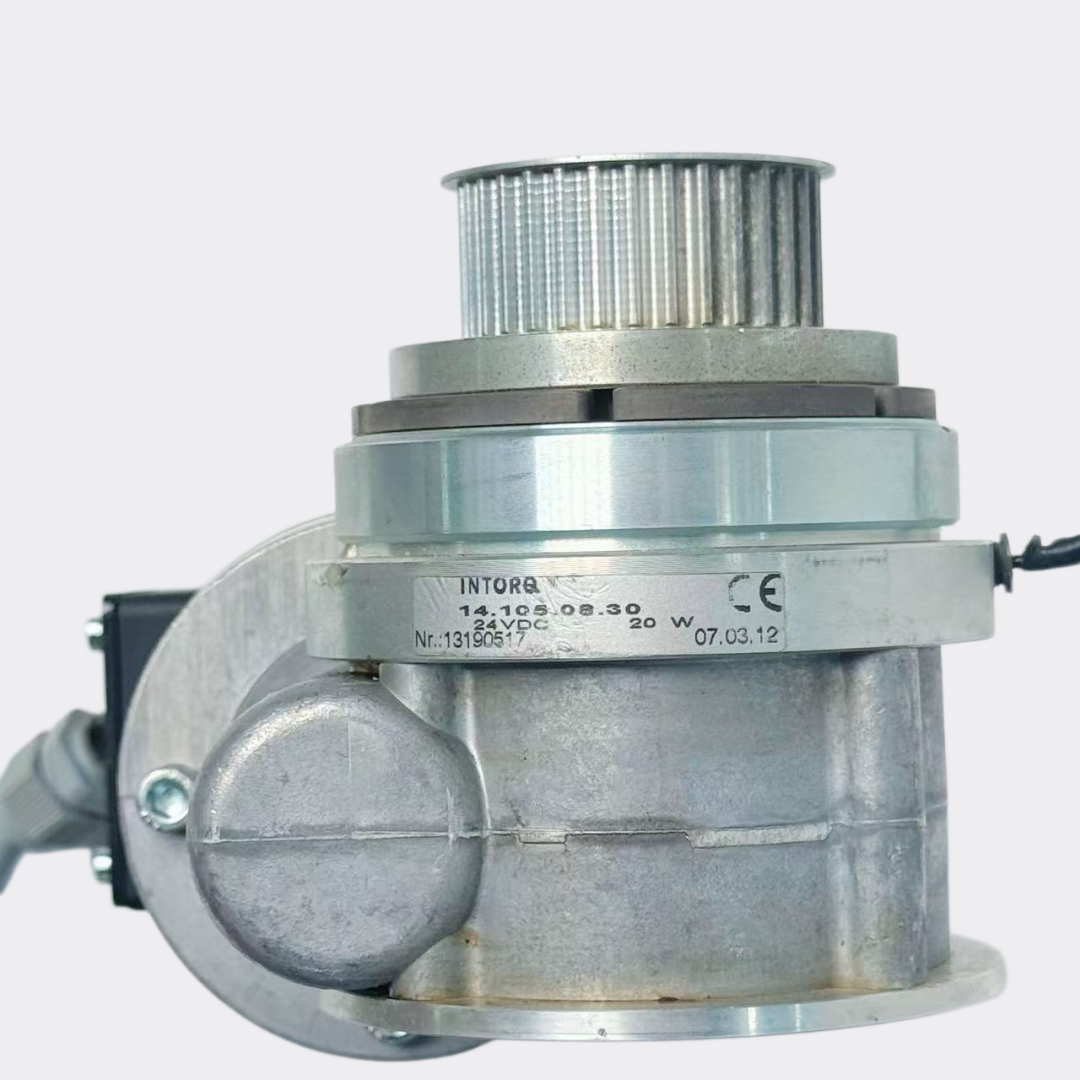

| Brake Unit | INTORQ 14.105.08.30 (24VDC, 20W) |
| Country of Origin | Made in Germany |
Frequently Asked Questions (Q&A)
Q: Is this motor completely compatible with Dorma revolving doors?
A: Yes, this motor is widely used as a core drive component in specific Dorma automatic revolving door models. We highly recommend matching the exact part numbers (SSN40) and specifications with your malfunctioning unit before purchase.
Q: Does the package include the brake unit and pulley as shown?
A: Absolutely. The product ships exactly as pictured in the listing, fully integrated with the 24VDC INTORQ brake module and the synchronous timing belt pulley, saving you installation time.
Q: Can I install this motor myself?
A: While it serves as a direct hardware replacement, due to the high voltage (230V AC) and precise calibration required for automatic doors, we strongly advise having a licensed electrician or an access control technician perform the installation.
