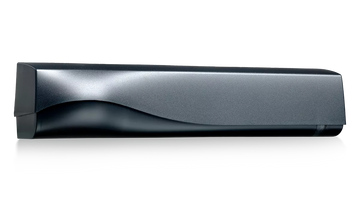

IXIO-DT1 (MOTION AND PRESENCE SENSOR FOR AUTOMATIC SLIDING DOORS)
Regular price
$0.00
Sale price
$0.00
Regular price
Unit price
DESCRIPTION
TABEL OF SPECIFICATIONS
| Main processor: | INGENIC T31N |
| Main frequency: | 1.5GHz |
| Detection mode: | Moving + human figure detection (Dual mode) |
| Pixel: | 1080P(HD) 1600*1200 |
| Response speed: | 50ms |
| Monitor storage: | TF card in FAT32 format, maximum 128GB memory |
| View adjustment: | 0-90° (exposed installation) 0-45° (embedded installation) |
| Network distance: | 10-30 meters (depending on the strength of Wi-Fi on site) |
| Detection function: | human figure motion, presence, remote control opening, monitoring, Time setting function, Infrared night vision |
| Signal output: | Relay NO, NC optional |
| Power supply: | AC/DC 12-30V |
| Standby consumption: | 230mA (DC12V power) |
| Working current: | 280mA (DC12V power) |
| Installation methods: | Expose or embedded installation on the door head, wall, and ceiling |
| External dimension: | 86x80x69mm(expose) 130x82x71mm(embedded) |
| Installation height: | ≤ 6 meters |
