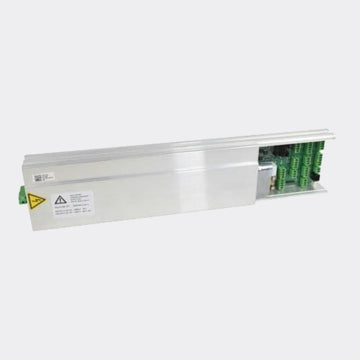

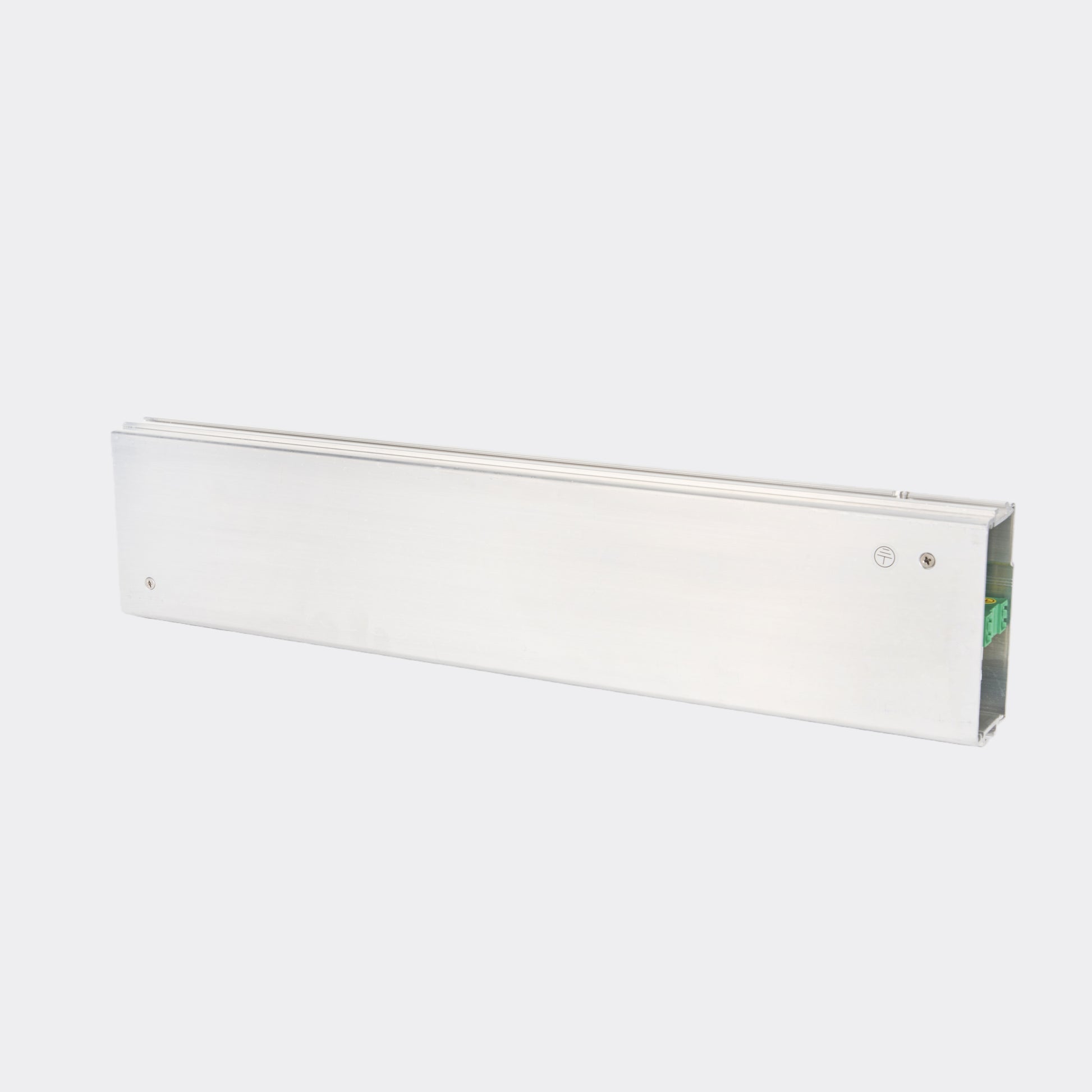

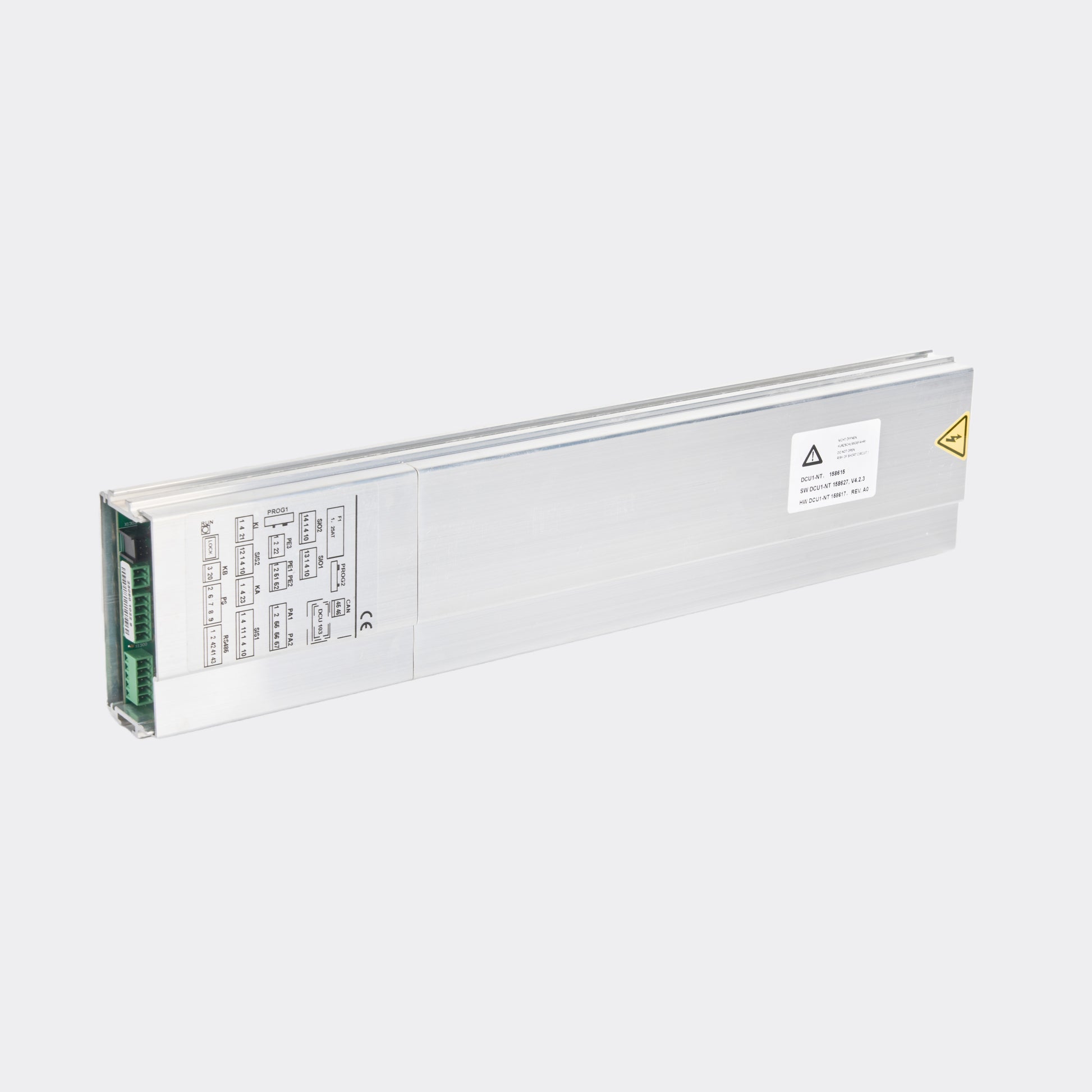

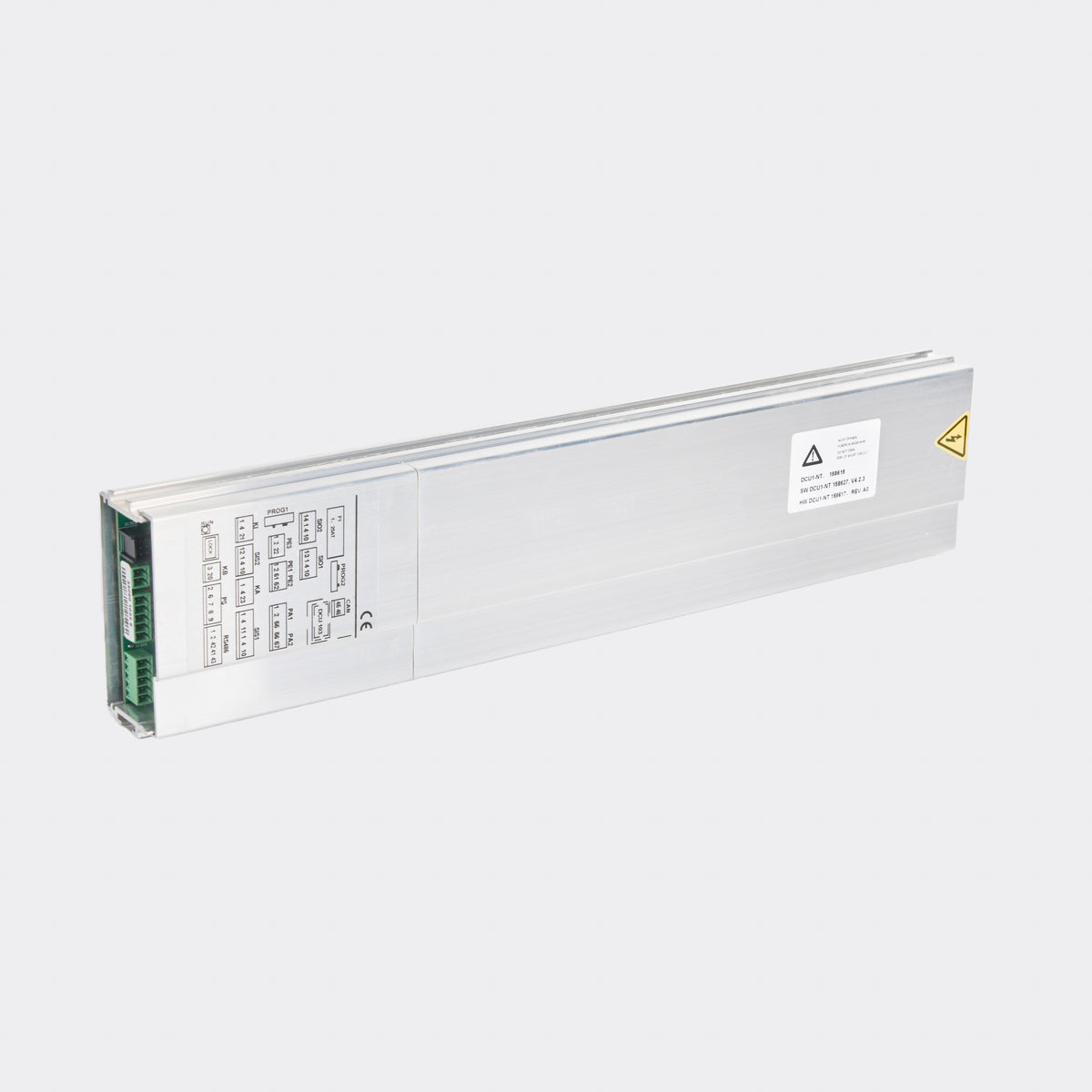

GEZE DCU1 Control Unit for Slimdrive SL NT

If your automatic entrance wears the Slimdrive badge, the GEZE DCU1 is the vital component that determines how the door feels to users—ensuring smooth starts, accurate stops, quiet travel, and reliable daily operation. Upgrading or replacing your geze control board (widely known in the European market as steuerung dcu1) guarantees your entrance remains dependable. Whether you are servicing a GEZE access system or exploring robust sliding door solutions, using genuine OEM parts like the DCU 1 is critical for compliance, safety, and longevity. Explore our complete collection of geze slimdrive sl nt replacement parts to ensure a seamless installation.

Technical Specifications

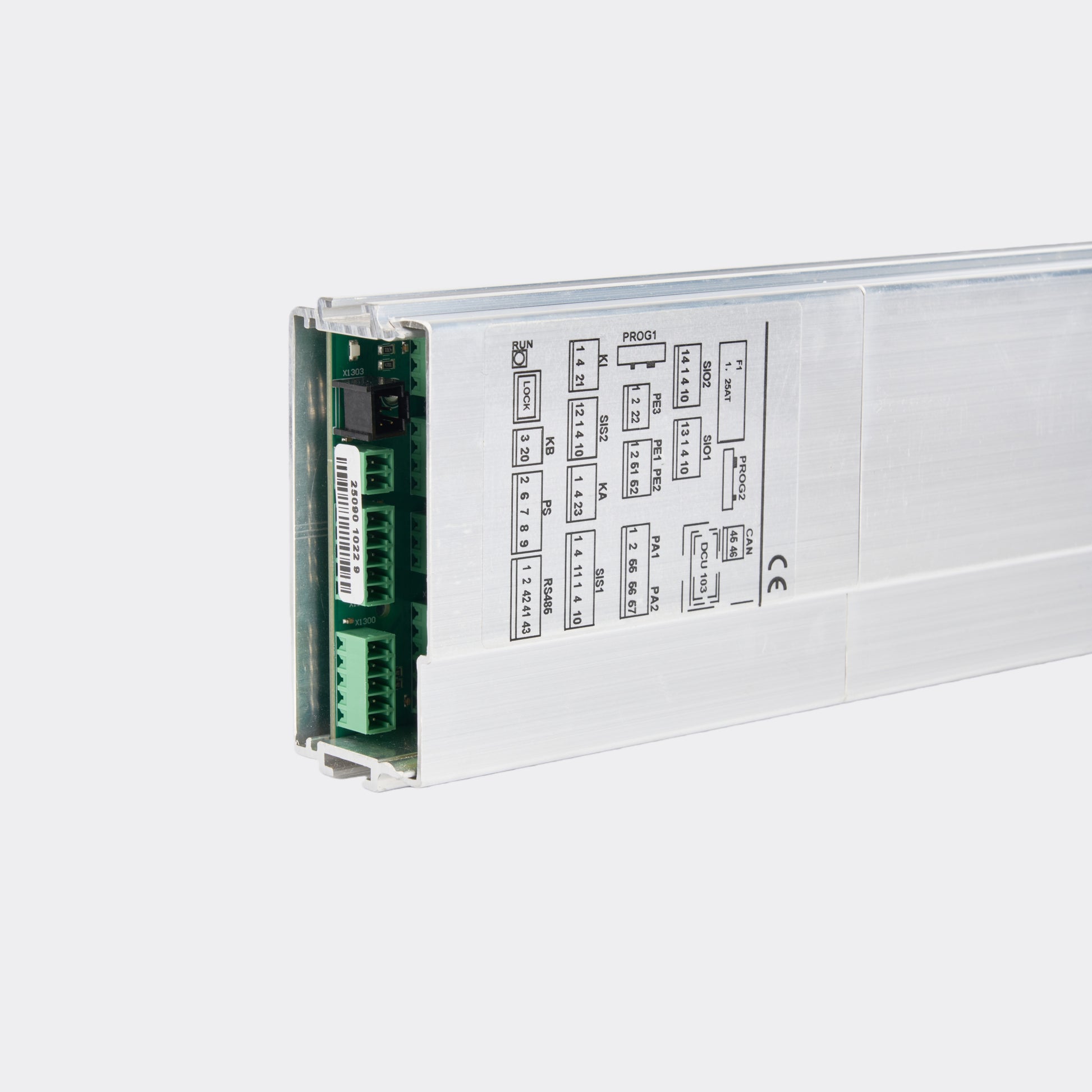

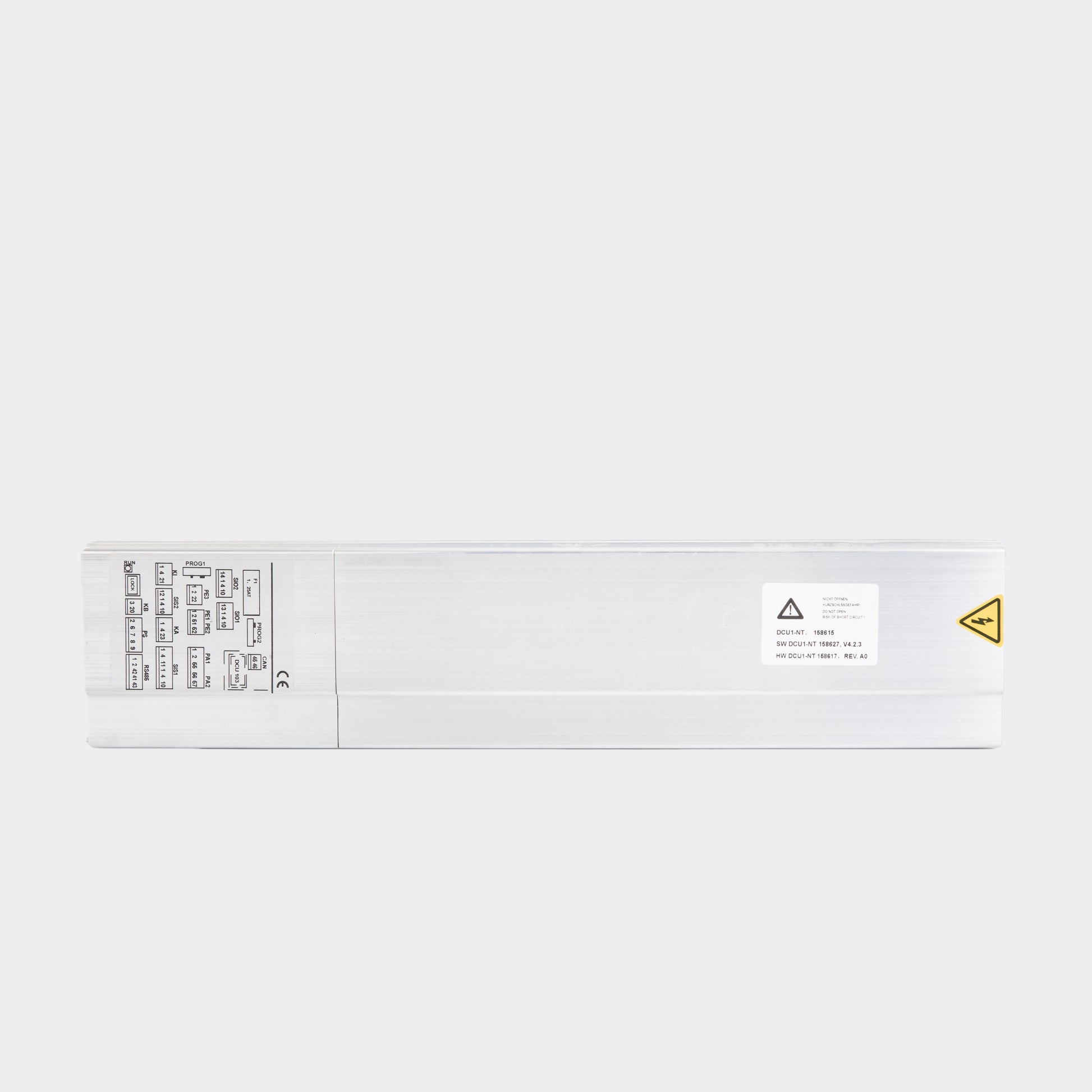

Ensure compatibility and verify your component details below before installation. Please match your existing setup with the 161556 (Article number):

• Product Name: GEZE Control Unit DCU 1 (DCU1-NT / DCU1-2M-NT)
• Article Number (Manufacturer Part Number): 161556
• Role: Central electronic controller for motor/encoder, safety sensors, program modes, diagnostics, and guided teaching/learn cycle.
• Compatible Operators: Designed for the geze slimdrive sl nt (70 mm low-profile header) and other models in the SL/SLT/SC ecosystem. Note: FR/escape route versions specifically require the DCU1-2M-NT variant.
• Commissioning Tools: ST 220 Display Programme Switch (“Geze SL Control Panel”) and GEZEconnects for wireless setup and monitoring.
• Program Modes: Automatic, Permanent Open, Partial/Half Open, Exit-Only, Night/Bank.
• Diagnostics: On-board fault memory and statistical data (cycle counts, service intervals) to accelerate troubleshooting.
• Safety Context: Engineered to meet EN 16005 / DIN 18650 standards when paired with compliant sensors and hardware.

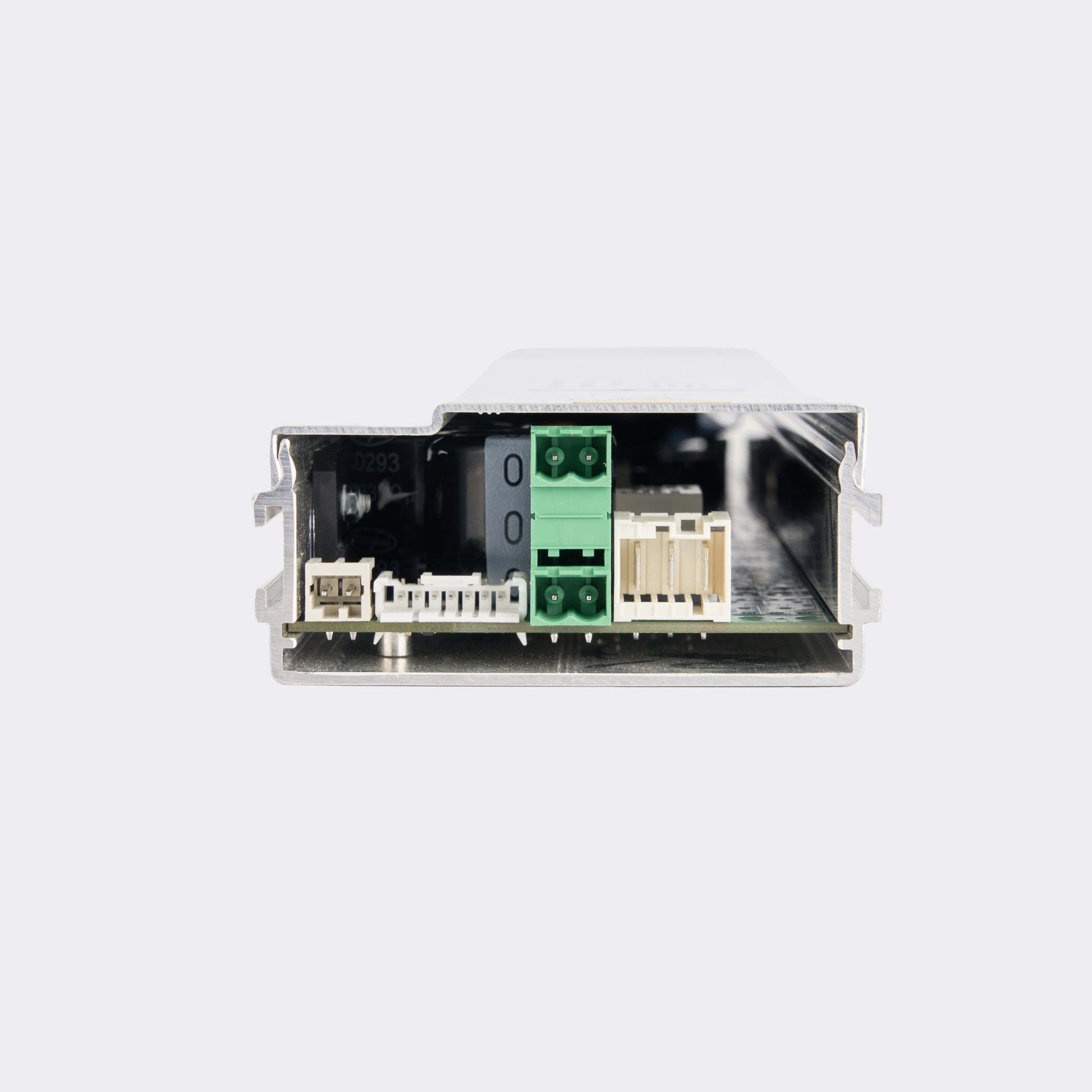

• Power / Interfaces: AC input, 24 V peripherals output, battery input for emergency routines, and bus interfaces for networking integration.

Technical & Troubleshooting Support

Welcome to our technical support and troubleshooting center. Whether you are searching for the official pdf file manual or need help verifying your geze dcu1 nt wiring diagram, please refer to the following critical installation instructions sourced directly from the GEZE Slimdrive SL product family documentation.

Cable Guide Installation Instructions

To ensure the safe operation of your automated door system, please follow these guidelines from the standard manual:

• Safety Distance Planning: Cables can be cut! Lay cables in such a way that there are no cables near the moving parts. Maintain a safe distance of approx. 200 mm.
• Fixing the Guide: Securely fix the cable guide (Component 1) directly onto the mounting track (Component 2).

Connecting Transformer and Control Unit

When utilizing your geze dcu1 nt wiring diagram, pay special attention to the pre-mounting phase and the connection between the transformer and the main control board:

• Cable Routing Safety: Make sure that cables are cut to length and routed in such a way that they do not become jammed when the cover is positioned and cannot come into contact with moving components.
• Cable Preparation: Cut the three-strand cable (Component 1) to the required length.
• Wire Ends Treatment: Strip both ends and attach insulated wire end ferrules to both ends securely.
• Plug Attachment: Attach the plug (Component 3) precisely on the controller side (Component 2).
• Final Insertion: Insert the plug into the control unit securely.
• Critical Precautions: Always note the proper earthing connection! Do not mix up wires!

Product Features & Upgrade Path

Why Facility Teams Choose DCU 1

Consistent motion, fewer nuisance reversals.
Commissioning with the geze dcu1 sets acceleration/deceleration ramps, hold-open times, and target positions based on your specific door’s mass and friction. The benefit is a predictable user experience and fewer callbacks for doors stopping short or reopening for no reason.

Diagnostics that cut time-to-fix.
The DCU 1’s fault memory gives technicians hard data: cycle counts, last errors, and event sequences. Service teams replace the right part the first time, reducing downtime.

Commissioning that fits your workflow.
With the ST 220 program switch, techs can step through the guided teach sequence at the door. Wireless networking through GEZEconnects ensures you maintain documentation control across multiple sites.

Field-Tested Upgrade Path

1. Pre-check & Documentation: Capture nameplates, controller photos, and wiring to confirm your DCU 1 variant and options.
2. Swap & Wiring Verification: Replace the old geze control board, double-checking fuses, earthing, peripheral voltages, and your wiring diagram.
3. Teach-in: Run the full teaching programme: encoder check, opening width/close position, friction/force and mass calibration.
4. Safety Proof: Confirm sensor logic, safety edges, and emergency battery behaviour in all modes (Automatic, Permanent Open, Partial Open, Exit-Only, Night/Bank).

Frequently Asked Questions (FAQ)

Q1. Is DCU 1 the correct control for my geze sl nt / geze dcu setup?
A. Yes. DCU1-NT is the standard control for standard Slimdrive SL NT doors. Installations on escape and rescue routes typically require DCU1-2M-NT because of its redundant logic. Match your header label and verify the 161556 article number before ordering.

Q2. What does the “Geze SL Control Panel” do versus software tools?
A. The ST 220 panel gives a four-line menu for parameter changes, commissioning, and diagnostics at the door. GEZEconnects adds wireless commissioning/monitoring workflows, streamlining maintenance.

Q3. Which operating modes can my staff select day-to-day?
A. Standard Slimdrive modes are Automatic, Permanent Open, Partial/Half Open, Exit-Only, and Night/Bank. Your building policy can lock or schedule these through the controller.

Q4. Does DCU 1 keep a history of errors and usage?
A. Yes. The controller stores fault codes and statistical data to support preventive maintenance and faster root-cause analysis.

Q5. We’re replacing a failed board — what is the minimum commissioning we must perform?
A. After wiring checks, run the teaching/learn programme: encoder test, opening width/close position, friction/force and leaf mass calibration. Then verify safety inputs and each program mode before handover.

Q6. Can the control integrate with building management?
A. Slimdrive platforms can be networked and linked to building automation through documented interfaces and accessories. Scope depends on installed modules and site requirements.

Q7. What are symptoms that point to a control-board issue rather than mechanics?
A. Recurrent, non-mechanical faults such as encoder loss without belt slip, intermittent sensor I/O errors across known-good devices, memory-persistent errors after servicing, or a failure to complete the learn cycle often indicate steuerung dcu1 or wiring concerns. Always verify supply voltages, grounding, and your geze dcu1 nt wiring diagram connections before swapping out the module.

Important Note for Installers: If the above reset steps and diagnostic checks fail to clear fault symptoms—or if cross-verification shows the board is unresponsive—this usually indicates irreversible hardware damage. We highly recommend purchasing a brand-new replacement 161556 part to quickly restore your door's functionality. For more premium hardware options or to verify system compatibilities, explore our full catalog of geze slimdrive sl nt products.
