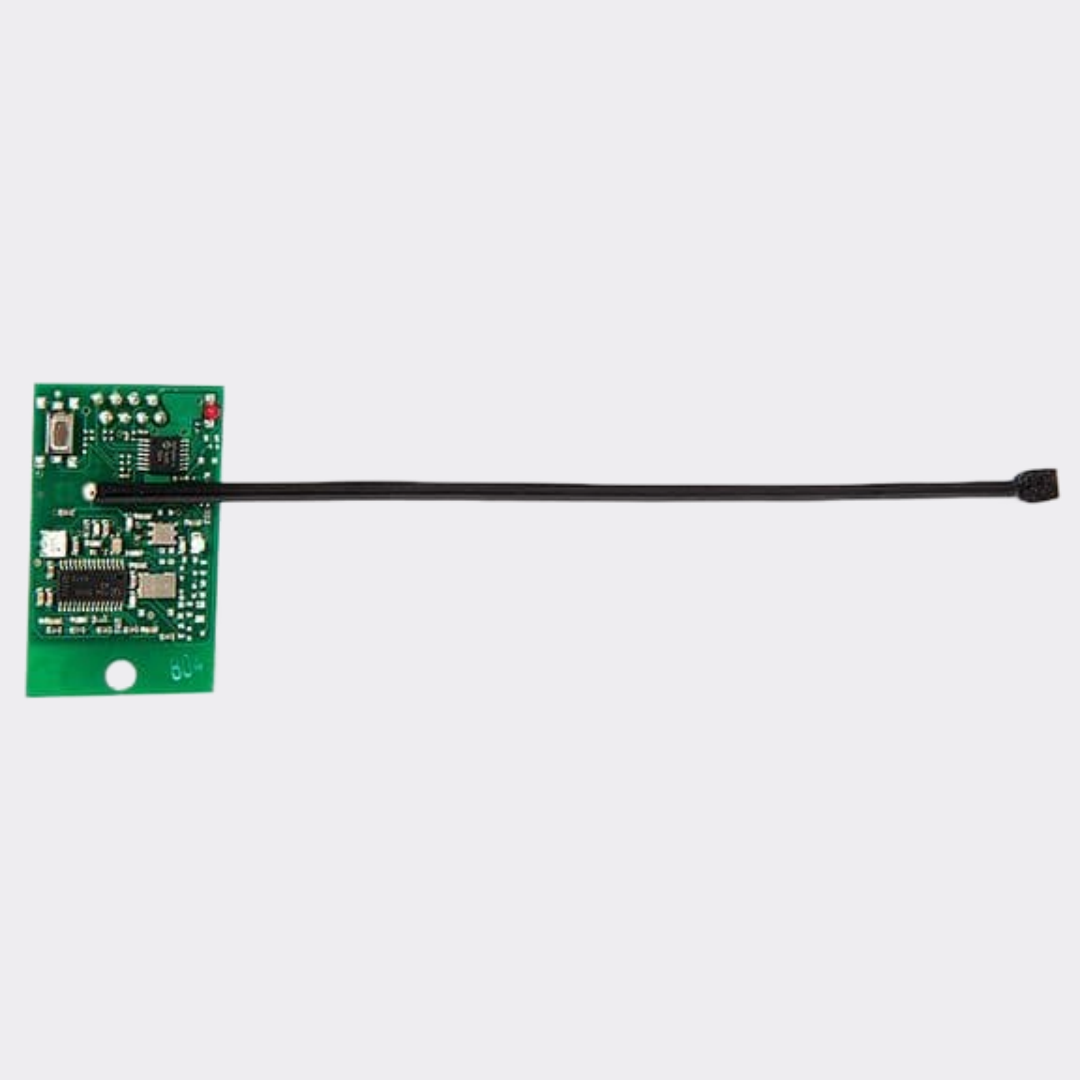

GEZE ECturn WRB-5 Wireless Receiver Module
The GEZE WRB-5 is the genuine GEZE ECturn wireless receiver module (GEZE part no. 135170), designed for GEZE ECturn, ECturn Inside and Powerturn swing door drives. If your automatic swing door no longer responds to the remote control, replacing the GEZE ECturn receiver is usually the fastest fix — no wiring, no reprogramming of the whole operator.
Why Choose the GEZE WRB-5?
As the factory-original GEZE wireless receiver module, the WRB-5 restores full remote-control functionality to your swing door operator in minutes:
- Plug-and-play installation: The WRB-5 plugs directly onto the DCU control unit — fitted in minutes by any door engineer.
- Encrypted rolling code: 433.93 MHz transmission with up to 74 trillion code combinations prevents unauthorised activation and signal copying.
- Pairs up to 12 transmitters: Fully compatible with GEZE WTH remote controls and WTM transmitting modules.
- Two-channel control: Channel 1 for standard activation and hold-open; Channel 2 for authorised activation via push button or hand-held transmitter.
Compatibility
This GEZE wireless receiver module is the standard radio upgrade and replacement part across GEZE's electromechanical swing door range:
| Compatible Drive | Function |
|---|---|
| GEZE ECturn | Wireless activation via WTH remote / WTM module |
| GEZE ECturn Inside | Wireless activation via WTH remote / WTM module |
| GEZE Powerturn | Wireless activation via WTH remote / WTM module |
Technical Specifications
- GEZE Part Number: 135170 (WRB-5 radio reception board)
- Transmission Frequency: 433.93 MHz
- Operating Voltage: 5 V DC (pluggable on DCU control units)
- Operating Current: 7 mA
- Dimensions: 44 x 27 x 10 mm
- Max. Teachable Transmitters: 12 (WTH / WTM)
- Channels: 2 (standard activation / authorised activation)
- Compatible Transmitters: GEZE WTH remote controls, GEZE WTM transmitting modules
Troubleshooting & FAQ
My GEZE ECturn no longer reacts to the remote control — do I need a new receiver?
In most cases, yes. First check the transmitter battery and re-teach the remote. If the operator still ignores the signal, the radio reception board has usually failed. Swapping in a new GEZE ECturn receiver (WRB-5, art. no. 135170) takes only a few minutes and instantly restores wireless operation.
Is the GEZE WRB-5 135170 difficult to install?
No. The board plugs directly onto the DCU control unit — no additional wiring, no software, no specialist tools. Any qualified door engineer can complete the replacement on a single service visit.
How many remotes can I pair with one WRB-5?
Up to 12 GEZE WTH remote controls or WTM transmitting modules can be taught in, making the GEZE wireless receiver module suitable for offices, clinics and public buildings with multiple authorised users.
Can I retrofit remote control to a hard-wired GEZE ECturn?
Yes. The WRB-5 is the factory-approved upgrade path for any hard-wired GEZE ECturn installation — no cabling through walls and no new activation devices required. Simply plug in, teach in your transmitters, and the door is wireless.
Order Your GEZE ECturn Receiver Today
In stock and ready to ship. This is a genuine GEZE spare part, supplied worldwide. Order the GEZE ECturn wireless receiver module today for fast dispatch and get your door back on remote control the same week. Looking for other spare parts, drives or accessories for GEZE ECturn operators? Browse the full range in our ECturn collection.
