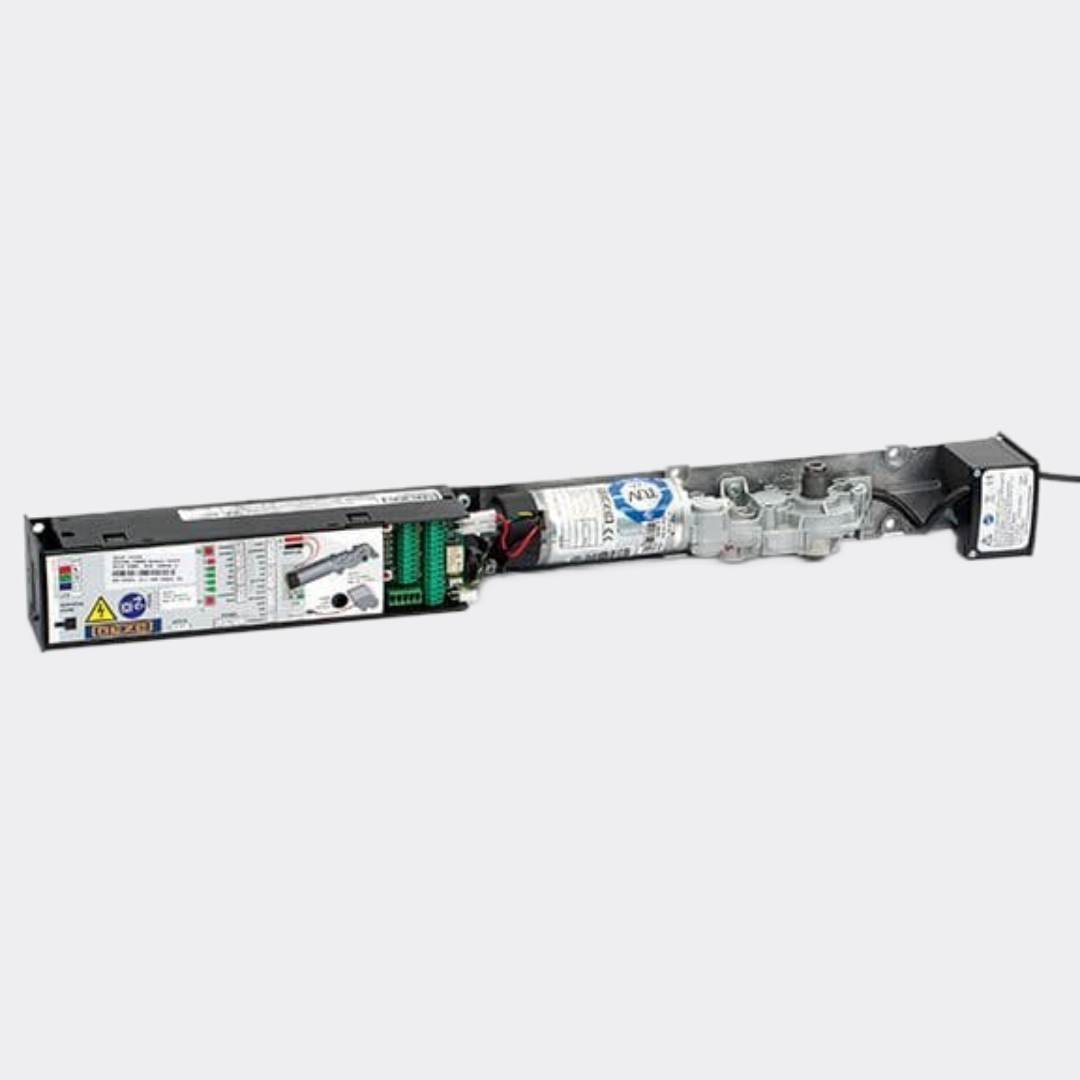

GEZE ECturn Drive Unit for Fast B2B Replacement

When an automatic swing door fails, downtime quickly turns into labor cost and access risk. This GEZE ECturn Drive Unit is a complete replacement solution built for maintenance teams, facility managers, and contractors who need stable performance without trial-and-error repairs. For series-level selection, explore GEZE ECturn options before final model confirmation.

The unit is delivered as a Pre-assembled GEZE ECturn module to reduce installation time and commissioning risk. Compared with piecemeal repair, a full GEZE ECturn Replacement Unit allows a quicker swap, cleaner troubleshooting, and more predictable project scheduling.

Why Choose a GEZE ECturn Complete Unit

• Direct OEM Fit: Designed for ECturn platform compatibility and stable daily operation.
• Lower Downtime: Complete module replacement shortens fault isolation and restart time.
• Cleaner Workflow: Avoid multiple separate part checks during urgent service calls.
• B2B Ready: Suitable for contractors handling retrofit and multi-site maintenance projects.

Technical Specifications and Part Numbers

Use the following hard specifications to verify site conditions before installation. If your project is evaluating an ECturn Drive Assembly for renovation, confirm electrical and door-leaf limits first.

• Manufacturer: GEZE
• Primary Product Name: GEZE ECturn Drive Unit
• Part Number / Model Reference: ADS1075
• Product Type: Complete replacement drive unit
• Power Supply: 110-230 V AC / 50-60 Hz
• Power Consumption: 75 W
• Peripheral Power Output: 24 V DC / 600 mA
• Maximum Door Leaf Weight: 125 kg
• Door Leaf Width Range: 650 mm to 1,100 mm
• Protection Rating: IP20 (indoor use only)
• Operating Temperature: -15 C to +50 C
• Open Hold Time: 5 to 30 seconds
• Actuation Time: up to 10 seconds
• Optional Modules: Battery, radio board, door transition cable

Technical and Troubleshooting Support for GEZE ECturn

This section helps installers and service technicians diagnose failures quickly. If you are comparing an ECturn Operator, ECturn Drive, or complete replacement strategy, use these checks to prevent repeated call-backs.

FAQ 1: Component Identification and Diagnostics

Q: What internal components should be checked first during troubleshooting?

A: Disconnect incoming 110-230 V AC power before inspection, then verify each module in order:

• (1) Control Unit: Main PCB for Automatic, Night, Permanently Open modes and Push&Go logic.
• (2) Motor: Main drive source, matched to door leaves up to 125 kg.
• (3) Gears: Mechanical transmission linked to motor torque output.
• (4) Power Supply Module: Internal regulation for stable 75 W operation.
• (5) Power Connection: Pre-wired cable and plug for faster on-site integration.

FAQ 2: Operating Limits and Failure Prevention

Q: Which limits must be respected to avoid hardware damage?

• Voltage Check: Use a multimeter to confirm stable 110-230 V AC input.
• Weight Check: Keep door leaf weight within 125 kg to protect motor and gears.
• Width Check: Maintain 650-1,100 mm leaf width for reliable Push&Go behavior.
• Environment Check: IP20 is indoor only; moisture exposure may damage the control board.
• Temperature Check: Keep operation between -15 C and +50 C to avoid instability or shutdown.
• Timing Check: Verify 5-30 s open hold and up to 10 s actuation settings.
• Sensor Power Check: Confirm 24 V DC / 600 mA peripheral output when accessories fail.

If damage is irreversible after parameter verification, replacing the entire unit is typically more economical than repeated component-level repair. For broader product-line comparison and sourcing, review GEZE ECturn collection options.

For renovation scenarios such as an ECturn Retrofit Drive project, submit your current model plate, application photos, and required lead time to confirm the right complete unit before shipment. You can also start from the GEZE ECturn category page and narrow by project type.
