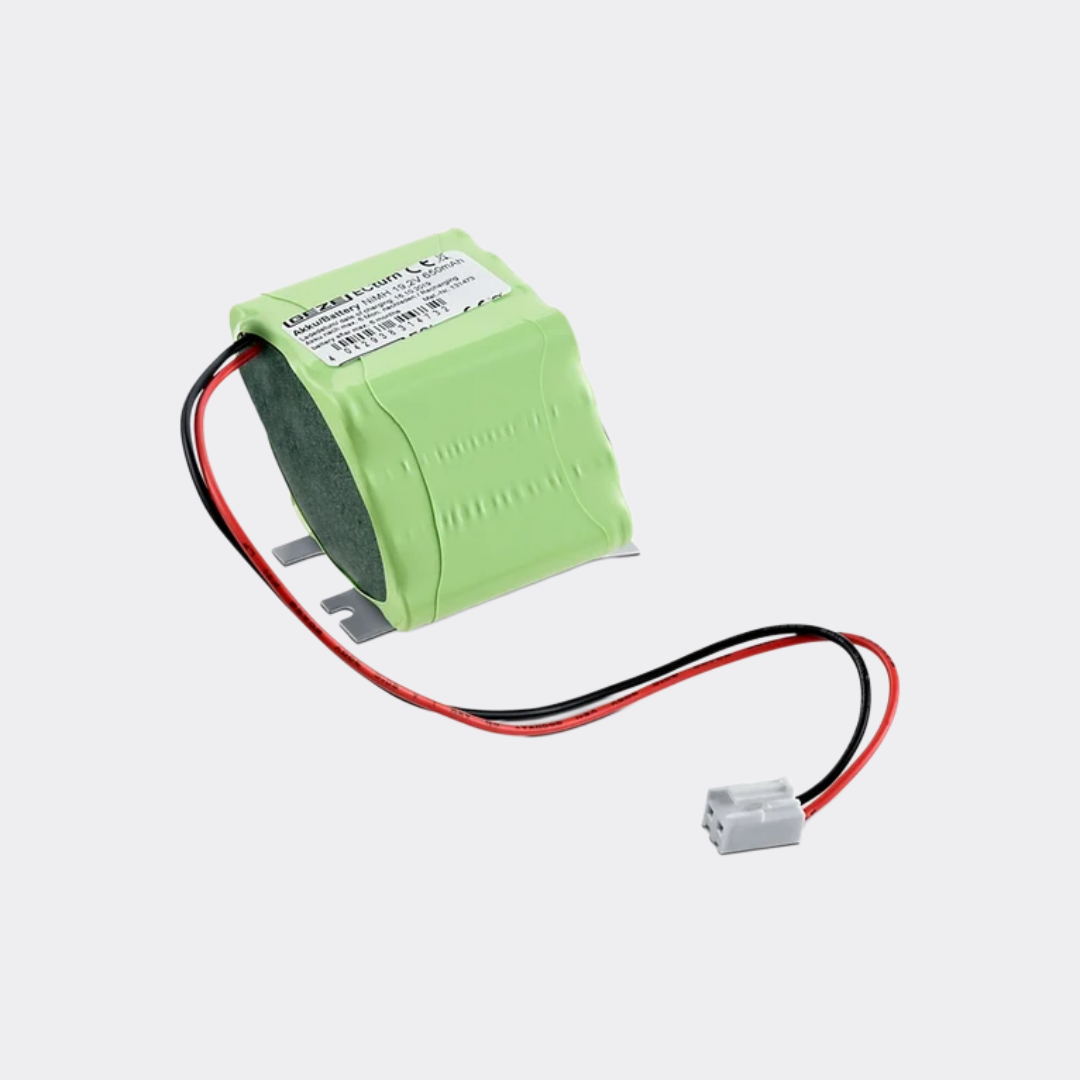

GEZE ECturn Battery | DCU700 9.2V 650mAh Replacement (131473)
GEZE ECturn Battery (DCU700) - Replacement Specs & Support
The GEZE ECturn battery is a dedicated replacement battery pack for the ECturn door operator system, with a clear B2B search fit for GEZE DCU700 battery, GEZE ECturn replacement unit, and GEZE ECturn replacement battery intent.
For buyers who need a fast-match spare part, this page also supports the exact procurement signals around GEZE ECturn battery unit and GEZE ECturn OEM battery.
Browse the matching series here: GEZE ECturn.
Technical Specifications
- Product Name: ECturn Akku/Battery (Battery Pack)
- Compatible Model: ECturn door operator system
- Battery Chemistry: NiMH
- Nominal Voltage: 9.2V
- Capacity: 650mAh
- Rated Energy: Approx. 5.98Wh
- Application: Emergency opening and closing backup battery pack
- Certification: CE marked
- Environmental Compliance: WEEE symbol (crossed-out wheeled bin) present
- Connector: Pre-wired plug connector for quick replacement
- Part Number (P/N): Barcode present on label; exact digits to be confirmed with close-up image
- Manufacturer Article No.: 131473
- Alt Reference: ADS1005
- OEM Reference: GEZE ECturn battery replacement (system-compatible)
Compatibility & Search Intent
This listing is built for technicians and procurement teams searching for a direct-fit GEZE DCU700 battery or a complete GEZE ECturn replacement unit. It is also relevant for buyers comparing GEZE DCU700 replacement unit options when an existing backup battery needs fast replacement.
- ECturn battery 9.2V 650mAh - strongest fit signal for purchase intent
- GEZE ECturn battery replacement - ideal for urgent maintenance jobs
- NiMH ECturn backup battery - technical filter term used by service engineers
- ECturn emergency opening battery pack - matches emergency function searches
- ECturn Akku OEM replacement - useful for buyers who need system-compatible parts
View the ECturn range again here: GEZE ECturn.
Technical & Troubleshooting Support
For users searching GEZE ECturn battery manual, DCU700 wiring diagram, or ECturn troubleshooting support, the official manual excerpt confirms the following service notes.
Safety Warning Before Servicing
When the rechargeable battery is installed, the drive is not de-energized just by switching off the supply voltage. To de-energize the drive safely, use this sequence:
- Set operating mode to OFF: Ensure the unit is in OFF mode before touching power connections.
- Switch off main power: Turn off at the power switch, or unplug the earth-pin power plug from mains.
- Remove battery plug at DCU700 control: Disconnect the rechargeable battery plug from DCU700.
Wiring / Polarity Notes
- Battery label: AKKU
- Voltage shown in diagram: 19.2V
- RD: + (positive)
- BK: - (negative)
Charging & Replacement Notes
- Delivery state: The rechargeable battery is not installed in the drive when delivered.
- Initial charging: If the battery is discharged at delivery, operate the drive on on-site voltage supply for at least 24 hours after connection.
- Charged-state voltage note: 21.6V (with rechargeable battery unplugged).
- Replacement interval: Replace the rechargeable battery every 2-3 years.
Parameter / Function Notes
For buyers searching ECturn error code, DCU700 parameter code, or voltage failure setting, the manual excerpt includes function and parameter references rather than a full alarm-code table.
| Code | Meaning | Troubleshooting Method |
|---|---|---|
| 16 RC | Behavior parameter after failure of supply voltage | Confirm the parameter is configured for the required site behavior and door function. |
| 02 (for 16 RC) | “Closing and switched off” mode | If reactivation is needed, confirm 16 RC is set to 02 before testing inputs. |
| KB / FK1 / FK2 | Trigger inputs, including radio channel logic | Check whether the drive reconnects the battery, opens/closes automatically, then disconnects again. |
After Power Failure With a Charged Battery
- After on-site supply voltage failure, the drive executes the function set by parameter 16 RC.
- Then the drive switches itself off by disconnecting the battery connection to preserve battery capacity.
- If operation mode is NA or AU, the drive can be reactivated via KB input or radio channel FK2 (with 16 RC set to 02).
- If KB / FK1 / FK2 is active, the drive should establish battery connection, open and close the door automatically, and then disconnect the battery connection again.
Return to the matching series here: GEZE ECturn.
When to Replace
If the reset steps, parameter check, polarity verification, and reactivation flow cannot clear the fault, the battery or related hardware is likely degraded beyond recovery. For uptime-critical sites, the recommended action is to purchase a new replacement unit directly using Manufacturer Article No. 131473 as the primary matching reference.
