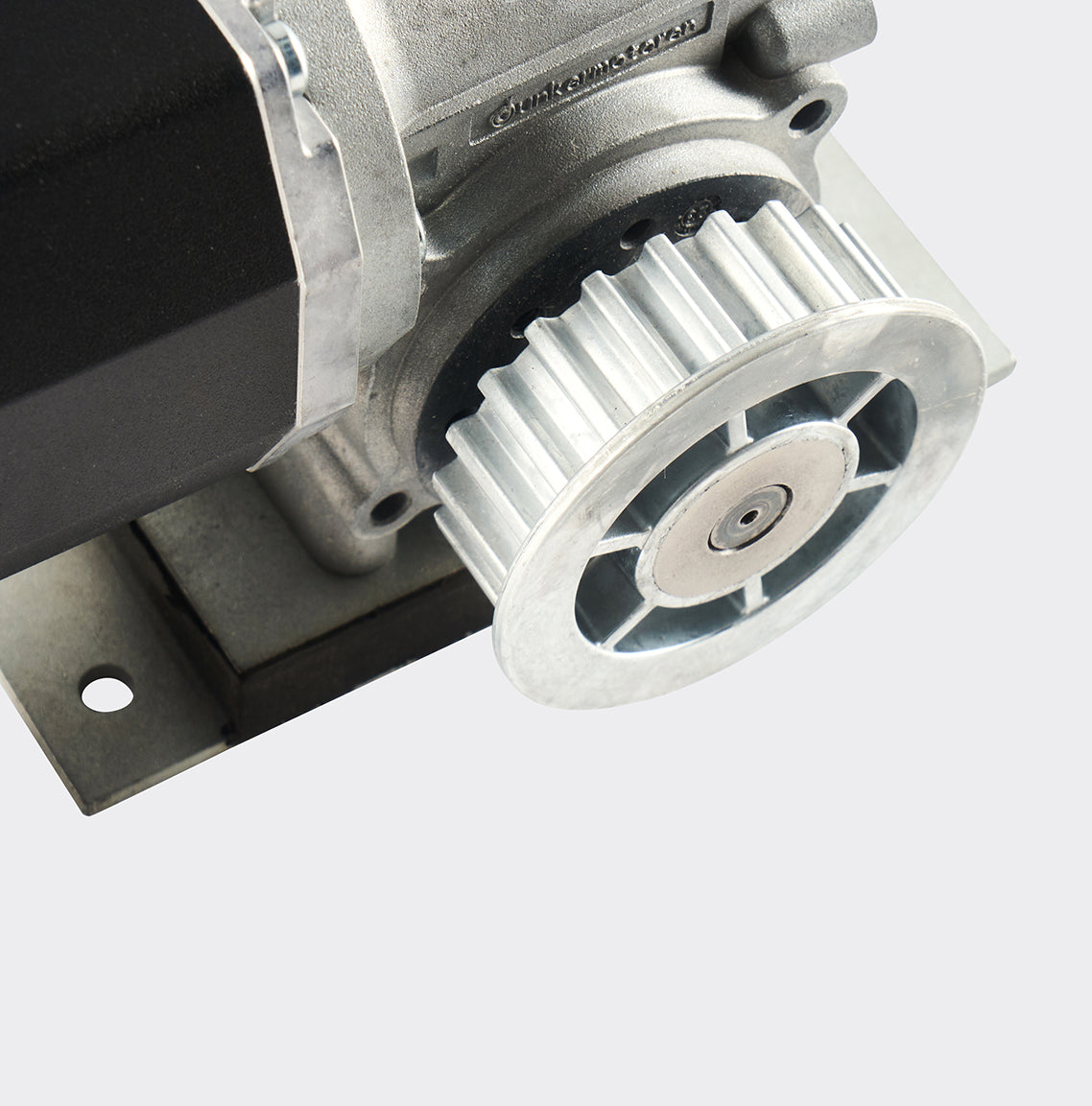

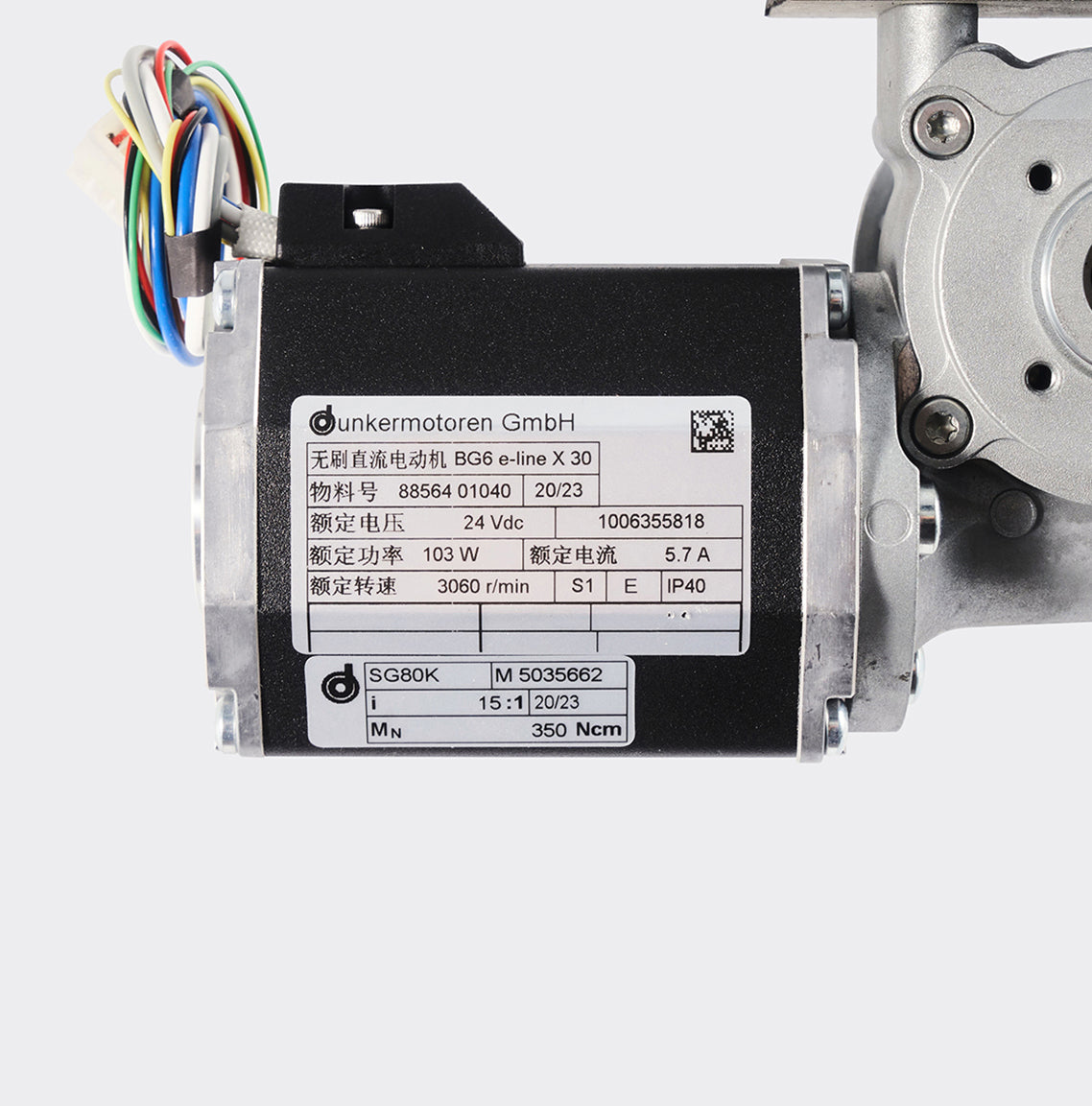

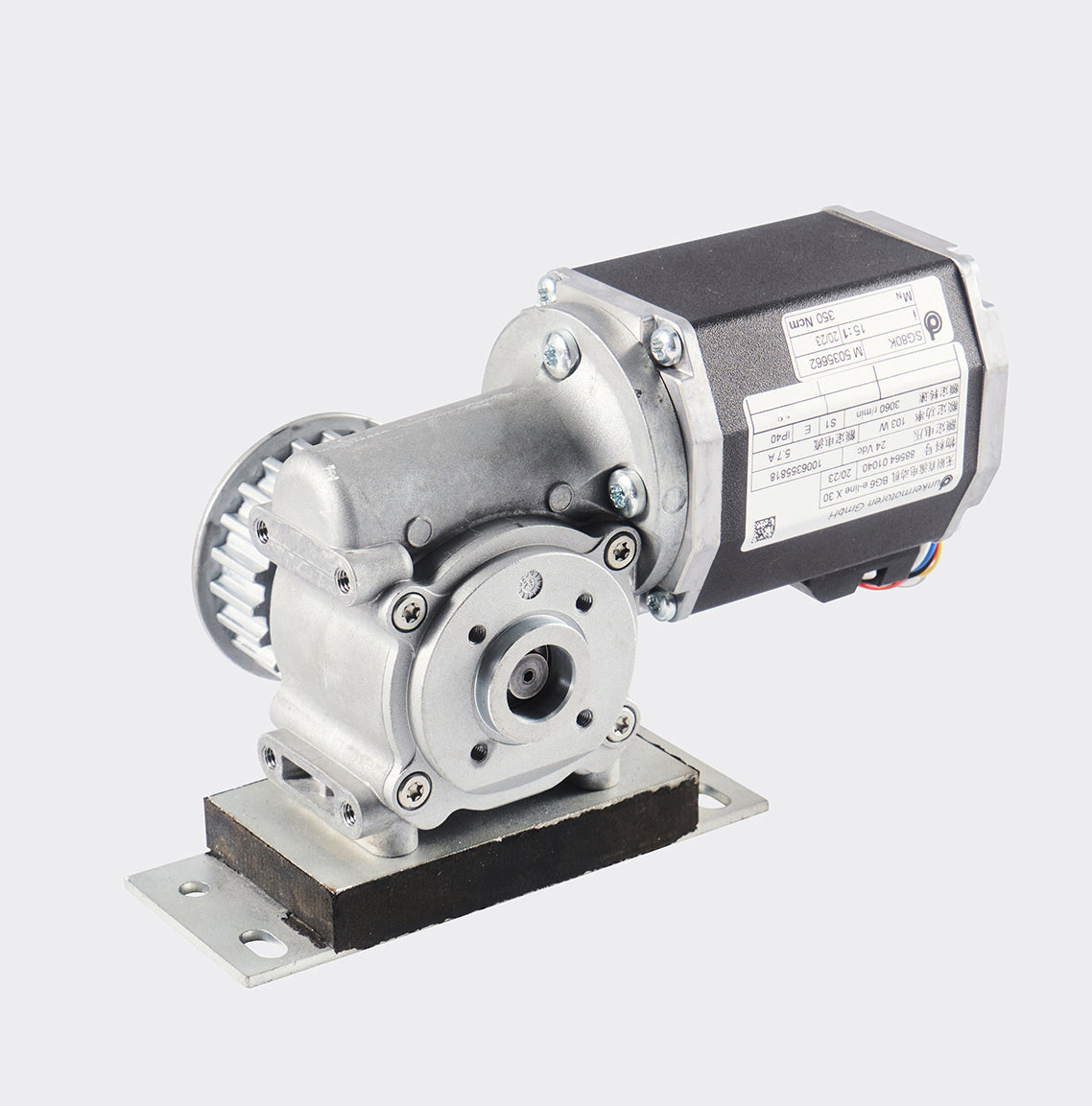

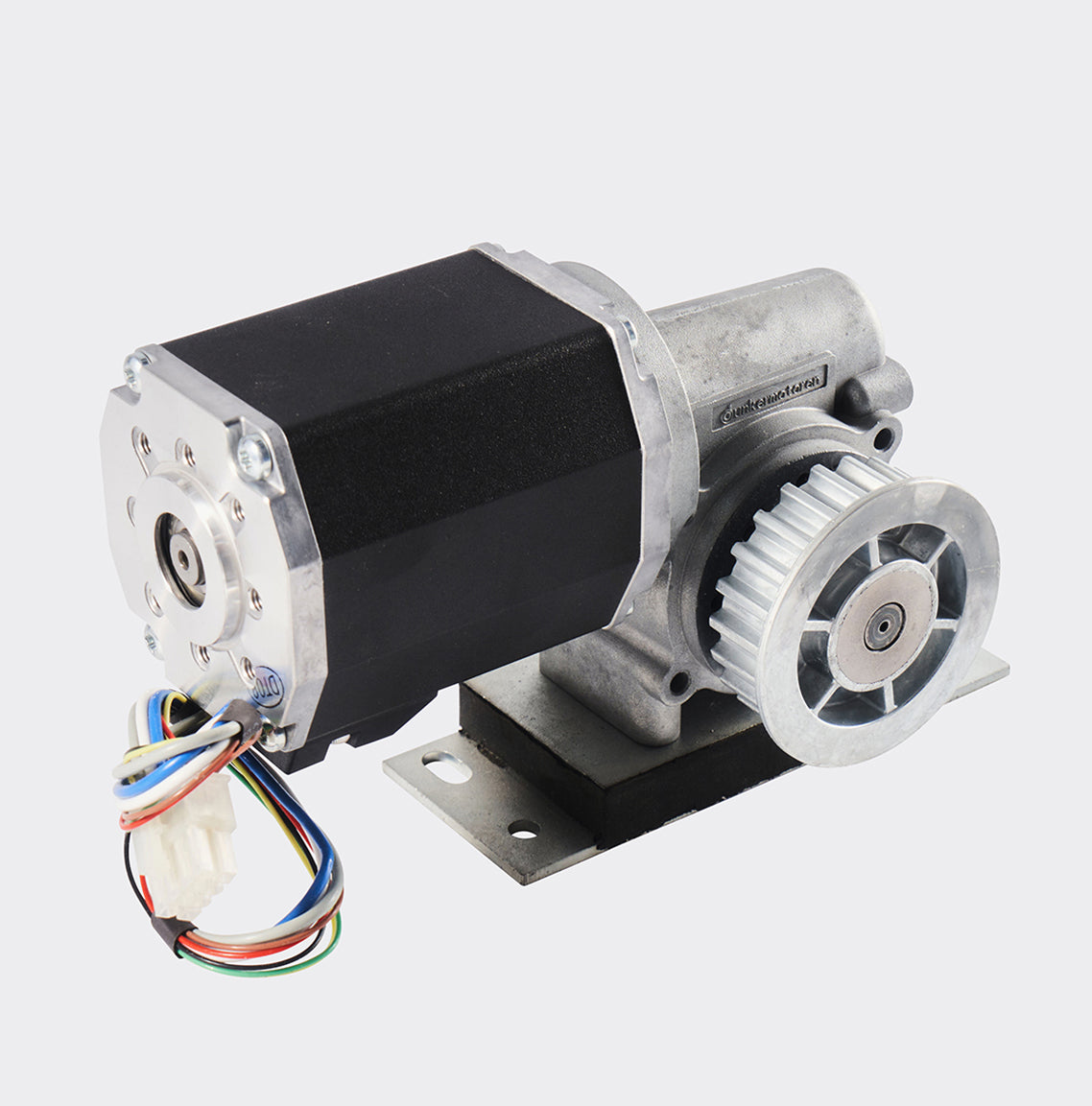

Dunkermotoren BG6 e-lineX30 (brushless motor)
Regular price
$220.00
Sale price
$220.00
Regular price
Unit price
DESCRIPTION
BLDC motor - high performance and quality at budgetary cost
-
3-phase BLDC motor with high-quality rare earth-magnets
-
High efficiency for low energy consumption
-
Good controllability
-
Available in 2 motor lengths
-
Version with hall sensors for rotor position detection
-
Flying lead version is standard
-
Additonal voltage versions >24 VDC and high voltage version available on request
-
Combinable with encoders, brakes and gearboxes within our modular system
| Technical data of operator | |
| Rated voltage |
24 VDC |
| Continuous rated speed |
3500 rpm |
| Continuous rated torque |
29 Ncm |
| Continuous current |
6.8 A |
| Peak current |
24 A |
| Starting torque |
200 Ncm |
| Rotor inertial |
200 Ncm |
| Weight of motor |
1 kg |
