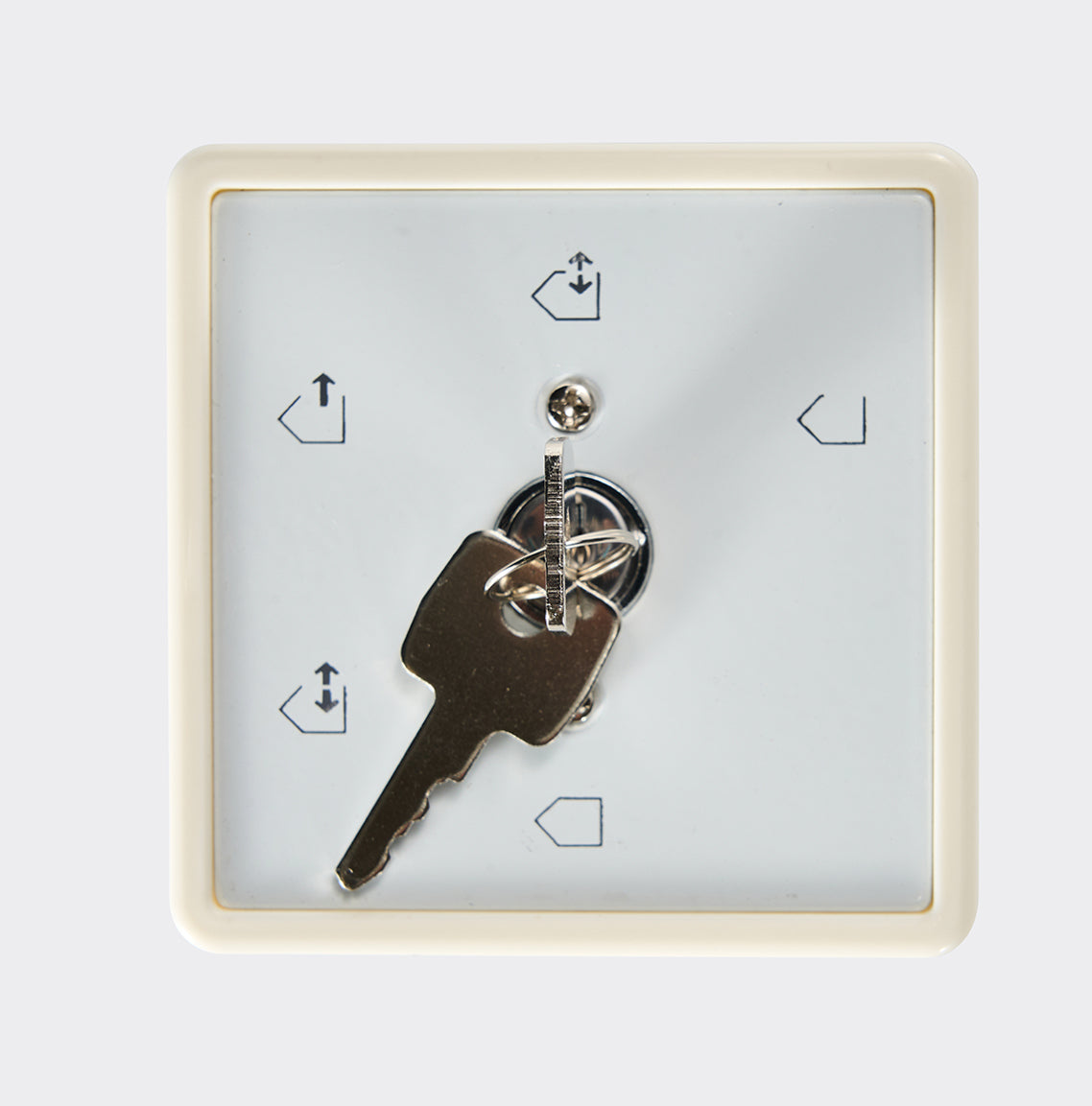

Premium Dorma Key Switch for ES200 Sliding Doors

Restore the full functionality of your automatic sliding doors with our premium quality Dorma program switch. Designed specifically for the Dorma ES200 Easy and Standard operators, this mechanical component is essential for navigating your door's operating modes securely.

Product Features & Benefits

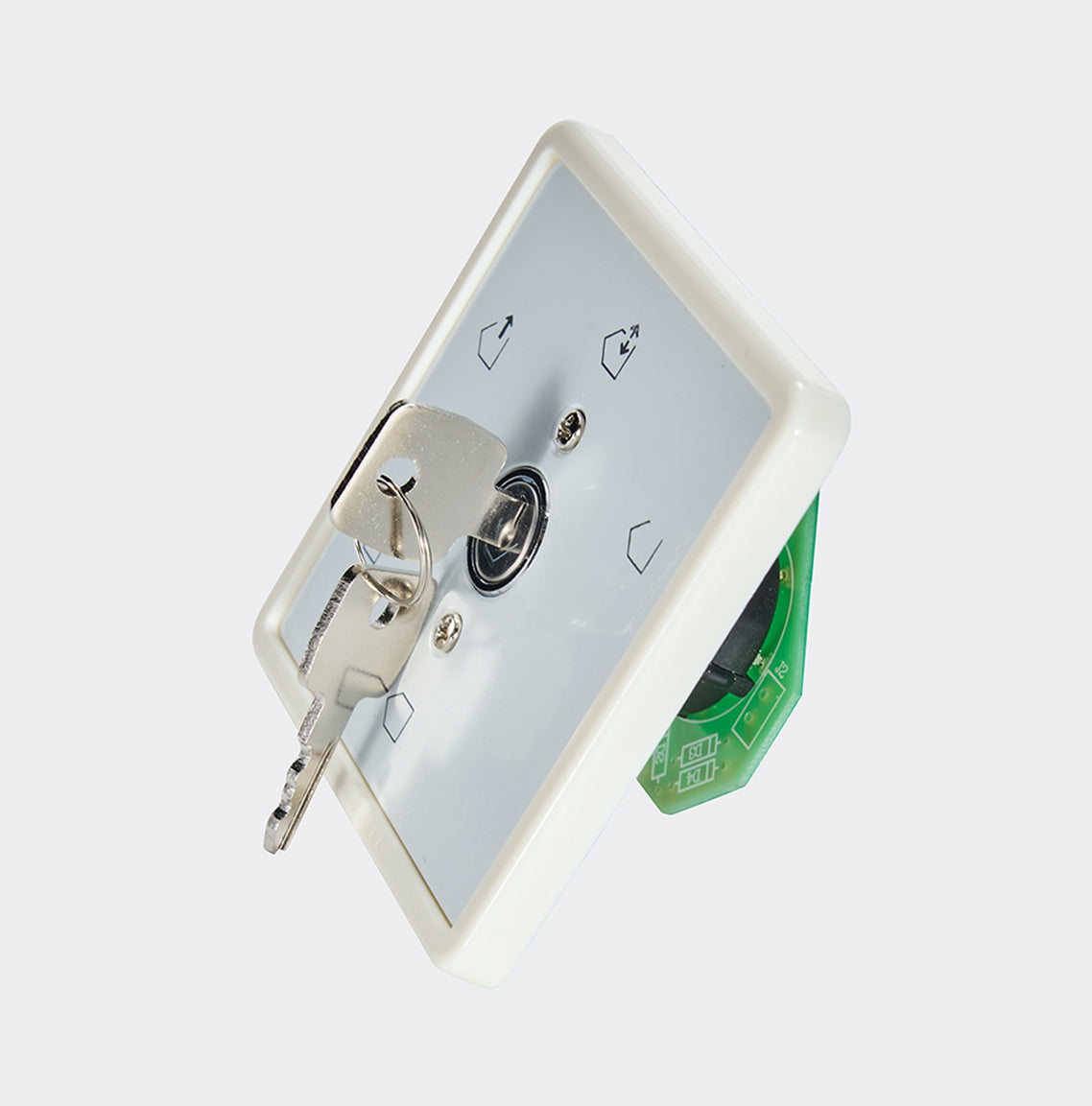

• 5-Position Mode Selection: Easily switch between operating modes including Automatic, Permanent Open, Lock (Night), Partial Open, and Exit Only. This unit acts as a highly reliable auto door mode switch to ensure precise control for facility managers.
• Secure Key Operation: As a dedicated key switch, it prevents unauthorized tampering with the door settings, making it ideal for commercial buildings, shopping malls, and offices.
• Direct Replacement: Engineered to meet OEM specifications, this unit serves as a perfect replacement for worn-out or broken program switches on existing Dorma ES200 installations.
• Easy Installation: Compatible with standard wiring harnesses, minimizing downtime during maintenance and repairs.

Technical Specifications & Part Numbers

• Compatibility: Dorma ES200, ES200 Easy Automatic Sliding Door Operators
• Size: 80 x 80 x 40 mm
• Type: Mechanical Program Switch (MPS)
• Positions: 5-Position Selector
• Operation: Key Actuated (Includes keys)
• Part Number 1: 9925511101150
• Part Number 2 (OEM): 9919135401150

Dorma Key Switch Manual & Programming Guide

For quick setup, testing, and troubleshooting, please refer to this simplified Dorma 5 position key switch manual context. Navigating the control panel correctly with a thorough Dorma key switch manual is essential for seamless daily operation.

Service Display and Button Functions

The control panel coordinates with the program switch to help identify service needs directly on the unit:

• LED 1 & LED 2: Status information for safety sensor 1 and 2, such as light barriers.
• 7-Segment Display: Main display unit for indicating numbers, symbols, parameter checks, and fault reviews.
• + / - Pushbuttons: Used to increase or decrease the parameter or value currently shown on the display.
• SEL. (Select): Central pushbutton for menu control and navigation.
• SERV. (Service): Dedicated pushbutton for performing the functions of the service loop.

Wiring Diagram & Diagnostics

While installing, note that a standard Dorma ES200 wiring diagram relies heavily on the panel's built-in indicators. Safety sensor status is monitored via LED 1 and LED 2. Display-assisted diagnostics require reading the 7-segment display correctly to match the switch’s active mode. The manual service interface utilizes the +, -, SEL., and SERV. buttons to finalize adjustments once the switch is wired.

Error Codes & Troubleshooting Note

Please note: No verified fault codes are available directly on the panel's basic interface. The official data only shows LED indicators, display unit readings, and button functions. You must consult the original error code diagnostics page before publishing or actioning specific fault repair steps.

Troubleshooting Note: If a fault cannot be cleared after basic reset attempts, menu checks, and safety sensor confirmations, the related control module, display unit, pushbutton assembly, or safety input hardware may be irreversibly damaged. In that case, repeated troubleshooting is usually not cost-effective. Replacing the damaged part directly is the recommended solution to reduce downtime and avoid repeated service costs.

Note: Please verify your existing switch wiring and dimensions before ordering to ensure this key switch fits your specific setup.

In Stock & Ready to Ship. Order your replacement parts today to get your doors back in service. View more accessories in our Dorma ES200 parts collection.
