DESCRIPTION

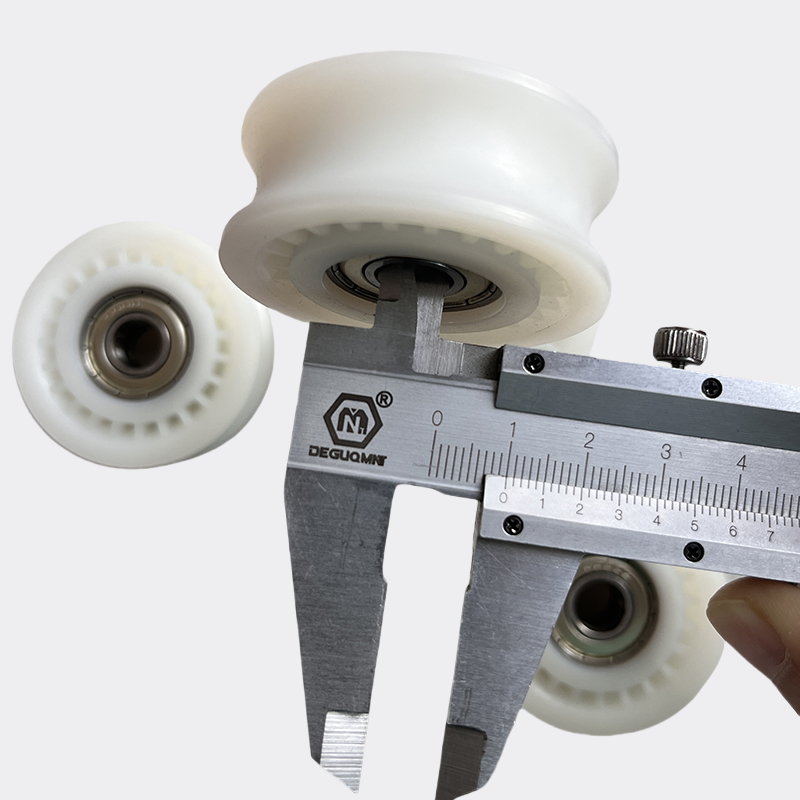

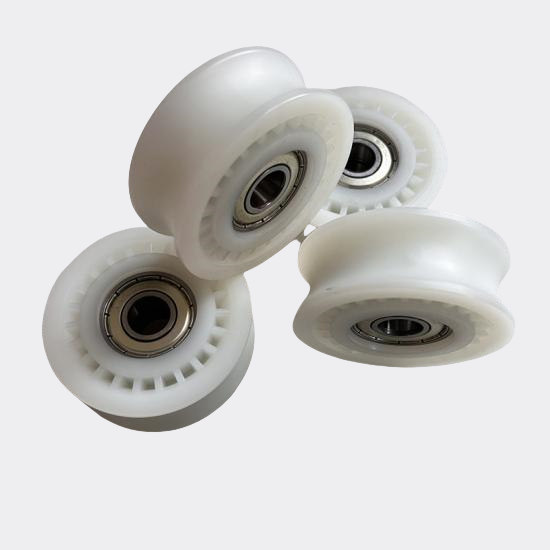

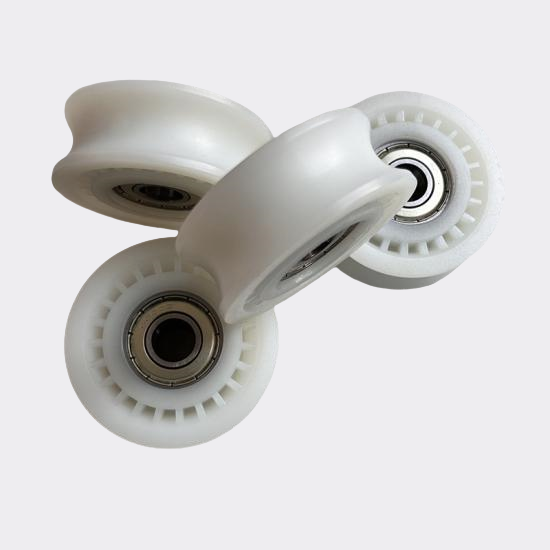

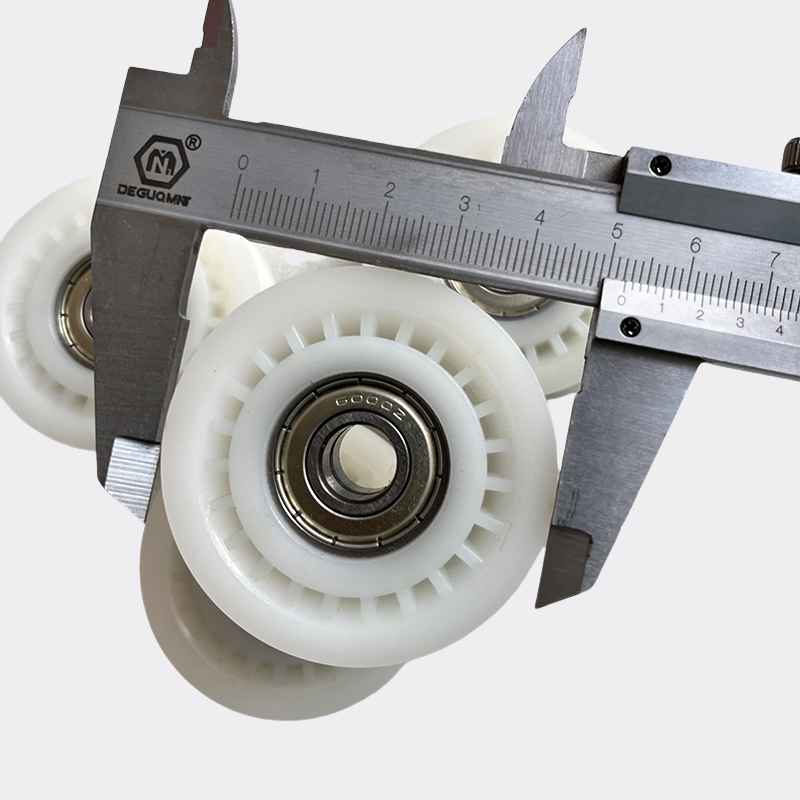

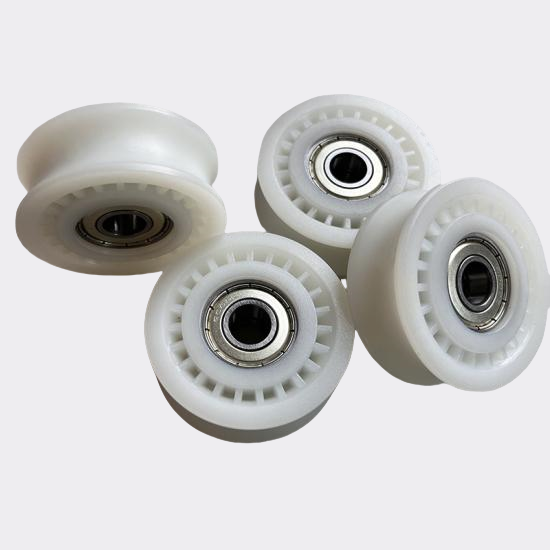

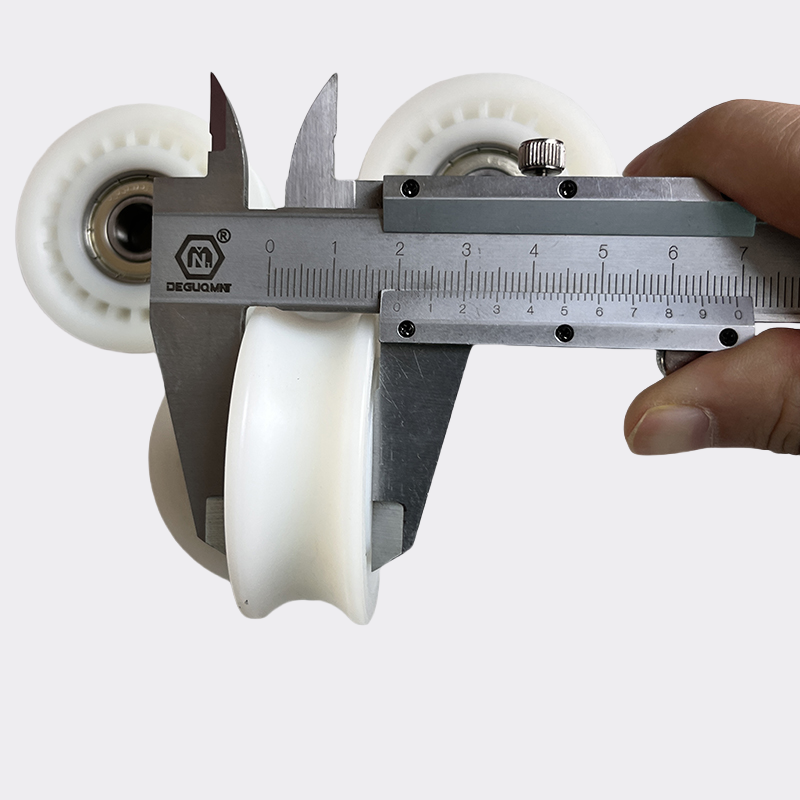

Dorma ES200 Main Wheels/Rollers

Key Specifications

  • Product Name: Dorma ES200 Main Wheels / Rollers — the two primary running wheels used inside each Dorma carrier (carriage wheel assembly) for ES 200 sliding door systems (dormakaba, 2006/2022).

  • Common Part Codes: DS0650010 / DS0650000 / DS0650-010 / DS0650-000.

  • System Compatibility: Designed for the dormakaba (Dorma) ES 200 operator family, including ES 200 Standard and ES 200 EASY/ES200e variants (dormakaba, 2015; dormakaba, 2023).

  • Role in the Assembly: Each carrier uses two main rollers to carry the door leaf; a separate anti-riser (anti-jump) guide wheel controls uplift, with height fine-tuned via the carrier’s eccentric adjustment (dormakaba, 2006/2022).

  • Operator Weight Context: ES 200 platforms are certified up to 1 × 200 kg (single leaf) or 2 × 160 kg (bi-parting); ES 200 EASY is rated up to 2 × 100 kg (dormakaba, 2015; dormakaba, 2023).

FAQ

Q1. Are these “Dorma Wheels” compatible with all ES 200 operators?
A. They are purpose-built for the ES 200 ecosystem and widely used across ES 200 Standard and ES 200 EASY/ES200e installations. Always confirm the roller’s diameter/profile against your installed carrier and rail before ordering (dormakaba, 2015; dormakaba, 2023).

Q2. How many “dorma track wheels” does one doorway typically use?
A. Each carriage wheel assembly (left or right) contains two main rollers. A single sliding leaf uses one carrier (two rollers), while a bi-parting entrance uses two carriers (four rollers). Replacing rollers in pairs keeps rolling resistance balanced (dormakaba, 2006/2022).

Q3. What does the small “anti-riser” wheel do, and is it part of these rollers?
A. The anti-riser is a separate guide wheel inside the carrier that prevents uplift. After hanging and leveling with the eccentric, the anti-riser should not contact the top track anywhere along the stroke (dormakaba, 2006/2022).

Product Description

Bring your automatic entrance back to factory-smooth glide with Dorma ES200 Main Wheels / Rollers—precision components that professionals rely on for quiet, reliable operation in high-traffic facilities. In every ES 200 installation, these “Dorma Wheels” are the load-bearing runners that suspend the leaf from the header rail via the carrier (carriage wheel assembly). For specifiers and service firms, that translates to stable door speeds, accurate stopping positions, and minimized corrective maintenance.

Designed to fit the ES 200 ecosystem. The dormakaba ES 200 platform is widely deployed because it scales from compact single-leaf shopfronts to bi-parting entrances with higher loads. Typical certified limits for ES 200 are 1 × 200 kg (single) or 2 × 160 kg (bi-parting), while ES 200 EASY is designed for up to 2 × 100 kg (dormakaba, 2015; dormakaba, 2023). The Dorma carrier that hangs each leaf is engineered around two main rollers (these parts) plus an anti-riser guide wheel. The carrier’s eccentric adjuster lets you set reveals precisely and ensure silent motion. Importantly, dormakaba’s installation guidance specifies that, after leveling, the anti-riser must not touch the top track anywhere along the stroke—locking the nuts preserves that setting and protects the rollers (dormakaba, 2006/2022).

Performance you can hear—and measure. Replacing worn main rollers restores the bearing precision the controller expects, which improves start/stop repeatability and force-limit compliance under EN 16005 / DIN 18650. In practical terms, you’ll see fewer nuisance reversals from presence sensors, cleaner Partial Open positioning for energy saving, and quieter operation during off-hours cleaning cycles (dormakaba, 2015). Because the ES 200 architecture is modular, maintaining a consistent roller specification across your estate simplifies truck stock and technician training while keeping entrances aligned with brand standards.

Application breadth for professional environments.

  • Retail & malls: Quiet entries that support customer experience and reduce nighttime noise complaints.

  • Healthcare & pharma: Predictable travel that supports sensor zoning, clean corridor flows, and force-control requirements.

  • Transit, hospitality, corporate campuses: High-cycle duty where polymer-tired, shielded dorma track wheels sustain performance despite stack effects and temperature swings (dormakaba, 2015).

Field-proven installation notes.

  1. Identify the carrier style and match roller geometry (diameter, tread profile). Photographs inside the header help eliminate ambiguity.

  2. Replace in pairs (both wheels in a carrier) or four per two-leaf opening to keep rolling resistance symmetrical (dormakaba, 2006/2022).

  3. Re-level with the eccentric, then adjust the anti-riser to clear the track along the entire stroke; finally torque the lock-nuts (dormakaba, 2006/2022).

What you’ll receive
Dorma ES200 Main Wheels / Rollers built around bearings and a quiet, durable polymer running tire—available as single pieces or multi-packs to support both single and bi-parting service scopes. Samples can be provided for fit validation before rollout.

Why buy from us:

  • Specification-correct components for the Dorma carrier and ES 200 rail profile, ready for your maintenance program.

  • Inventory on hand for rapid dispatch and minimized downtime across multi-sites.

  • Technical part-matching by photo/drawing to resolve legacy code confusion and reduce first-visit risk.

Search-friendly terms (naturally integrated): Dorma Wheels, dorma track wheels, sliding door wheels heavy duty, Dorma ES200 main rollers, ES200 trolley wheels, automatic sliding door rollers, ES 200 EASY rollers, dormakaba ES 200 rollers.
