Premium dorma es200 easy track wheels Replacement

Bring your automatic entrance back to a factory-smooth glide with our premium dorma es200 easy track wheels. Designed as a precision replacement component, these rollers are trusted by professionals to ensure quiet, reliable operation in high-traffic facilities. Whether stabilizing door speeds, achieving accurate stopping positions, or minimizing corrective maintenance, these load-bearing runners are built to perform. To explore complete drive units and compatible assemblies, visit our master Dorma ES200 category.

Technical Specifications & Part Numbers

Ensure seamless integration by matching these comprehensive part details with your installed system:

• Product Category: Dorma ES200 Easy Main Wheels / Rollers
• Primary Article Number: 9925518502150
• Common Part Codes: DS0650010, DS0650000, DS0650-010, DS0650-000
• System Compatibility: Purpose-built for the dormakaba ES 200 Easy operator family. (For other series, check our Dorma ES200 components page).
• Operator Weight Context: Designed to reliably carry up to 2 × 100 kg.
• Role in the Assembly: Each carrier utilizes two dorma es200 main rollers to carry the door leaf, paired with a separate anti-riser guide wheel.

Why Choose Our dorma track wheels?

Replacing worn-out components with our heavy-duty dorma track wheels restores the bearing precision your controller expects. This critical upgrade improves start/stop repeatability and force-limit compliance (EN 16005 / DIN 18650). In practical terms, this means fewer nuisance reversals from presence sensors, cleaner partial-open positioning for energy savings, and quieter operation during off-hours cleaning cycles.

Field-Proven Installation Notes

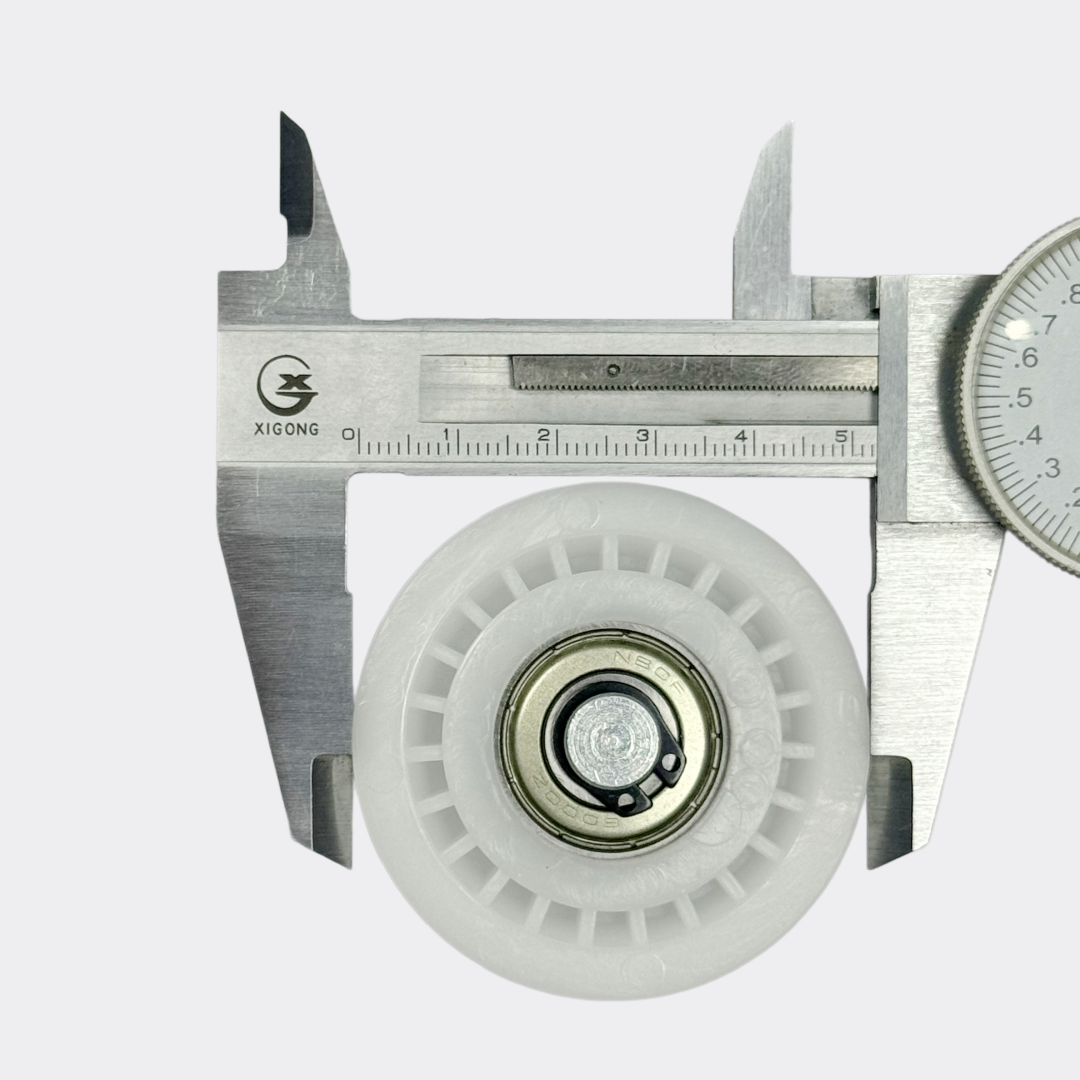

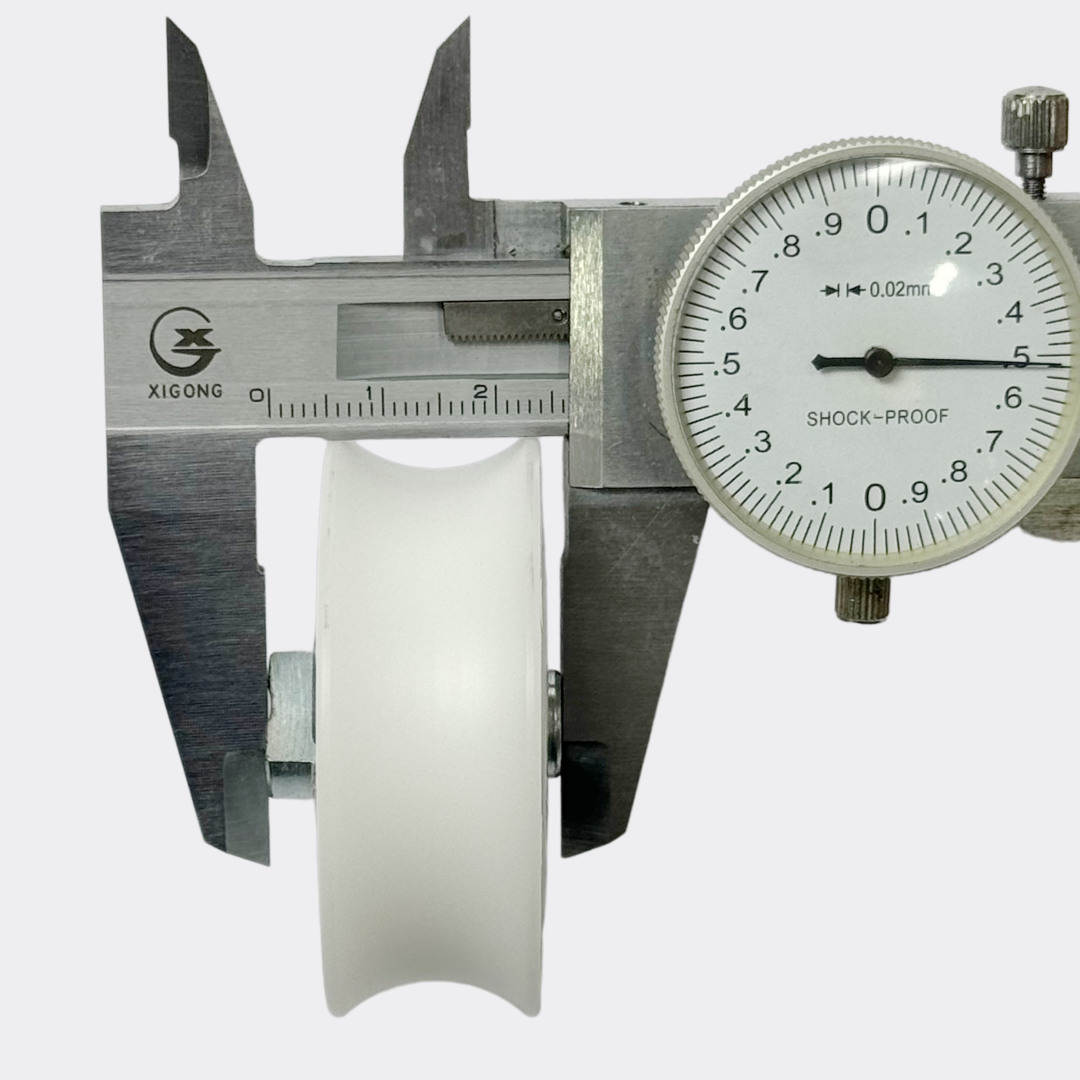

• Identify the Carrier Style: Always match the roller geometry (diameter and tread profile). We recommend comparing photographs of the inside header to eliminate ambiguity.
• Replace in Pairs: For optimal performance and symmetrical rolling resistance, replace both wheels in a single carrier, or all four for a bi-parting, two-leaf opening.
• Re-level with the Eccentric: After installing the new wheels, level the system using the eccentric adjuster. Ensure the anti-riser clears the track along the entire stroke before finally torquing the lock-nuts.

Frequently Asked Questions (FAQ)

Q1. Are these replacement wheels compatible with all ES 200 Easy operators?
A. Yes, they are purpose-built for the ES 200 Easy ecosystem and widely used across all standard installations. However, always confirm the roller’s diameter and profile against your installed carrier and rail before ordering.

Q2. How many dorma track wheels does one doorway typically use?
A. Each carriage wheel assembly (left or right) contains two dorma es200 main rollers. A single sliding leaf uses one carrier (two rollers), while a bi-parting entrance uses two carriers (four rollers). Replacing them in pairs keeps the rolling resistance perfectly balanced.

Q3. What does the small "anti-riser" wheel do, and is it included?
A. The anti-riser is a separate guide wheel positioned inside the carrier to prevent uplift. It is not included with the main rollers. Importantly, after hanging and leveling the door, the anti-riser should not contact the top track anywhere along the stroke.

Order Your Quality Replacement Parts Today

Every set features precision bearings sealed inside a quiet, durable polymer running tire, ensuring maximum longevity in professional settings like retail malls, healthcare facilities, and transit hubs. We proudly offer specification-correct inventory that matches original dimensional drawings, eliminating legacy code confusion.

Need additional hardware for your sliding door system overhaul? Browse our comprehensive Dorma ES200 collection to easily source compatible sensors, controllers, and belts.
