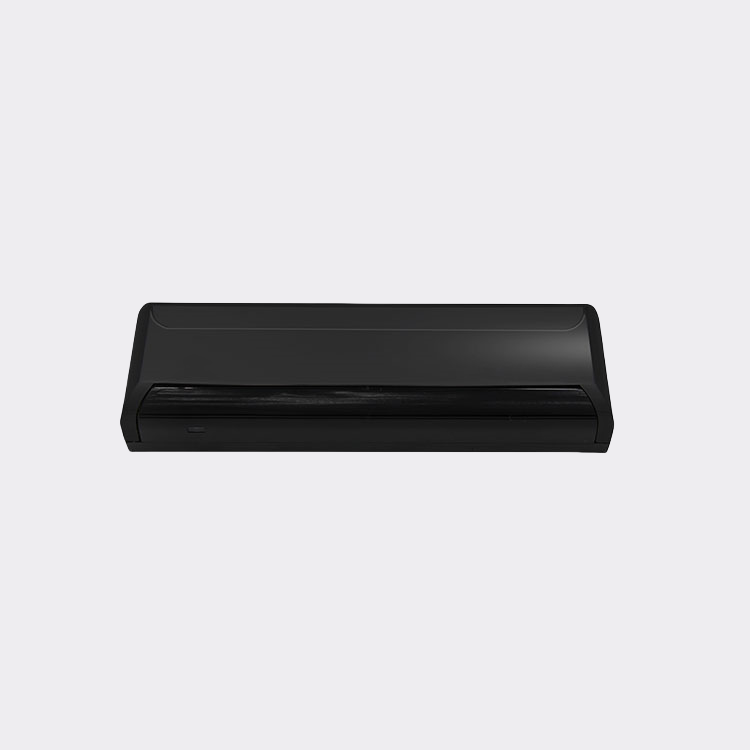

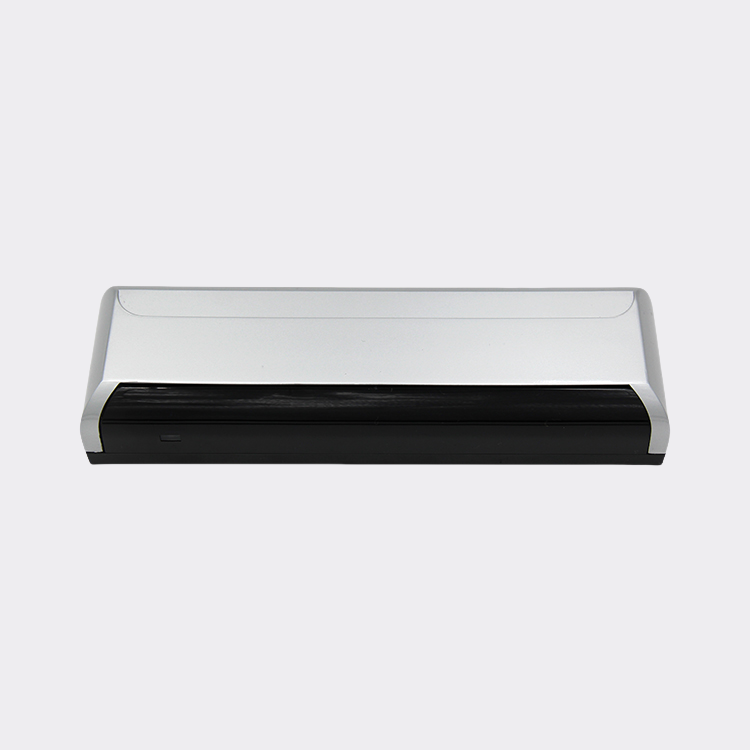

D-254 Infrared Motion &Presence Safety Sensor

This sensor uses infrared technology to integrate motion and safety functions for automatic doors. It efficiently controls the sensing range and features an anti-pinch function with background self-learning for intelligent adaptation. It also offers real-time compensation and self-correction for changes in external factors, ensuring reliable and long-term operation.

Send us a message
Send us an email
提出问题

D-254 Infrared Motion &Presence Safety Sensor

* 必填字段

 尺码指南 共享
D-254 Infrared Motion &Presence Safety Sensor

D-254 Infrared Motion &Presence Safety Sensor

正常价格 $0.00
销售价格 $0.00 正常价格
单价
DESCRIPTION

TABEL OF SPECIFICATIONS

Power input AC/DC 12~24V(±10%)
Cable length 2.5m
Signal output Relay, 1 for motion, 1 for presence
Max installation height 3000mm
Static current 30mA (DC12V)
Action current 110mA (DC12V)
Cover ABS
Ray type Infrared modulated light
Ray source Infrared 940nm
Quantity of ray 1 line for presence, 4 emits, 16 spots
3 lines for motion, 12 emits, 48 spots
Self-learning time 10s
Operation indicate Standby by green led, motion by yellow led,
Presence by red led
Temperature -40°C ~ 60°C
Detection range 1600(W) x 800(D) mm
Respond ≤100ms
Dimension 229(L) x 77(W) x 41(H) mm
